Series Overview
UMM-6 series is a high power modular rack-mounted DC power supply built for high-current, low-voltage test scenarios.
Product Highlights
- Voltage0-15V / 0-20V / 0-30V / 0-50V / 0-60V / 0-100V
- Current0-60A / 0-50A / 0-20A / 0-30A / 0-10A / 0-15A / 0-5A
- Power900W / 1000W / 600W / 1200W / 500W
- Form FactorRack-mountable
High precision rack mounted power supply UMM-6 Series
Series / category: Multi-Channel DC Power Supply
Product Overview

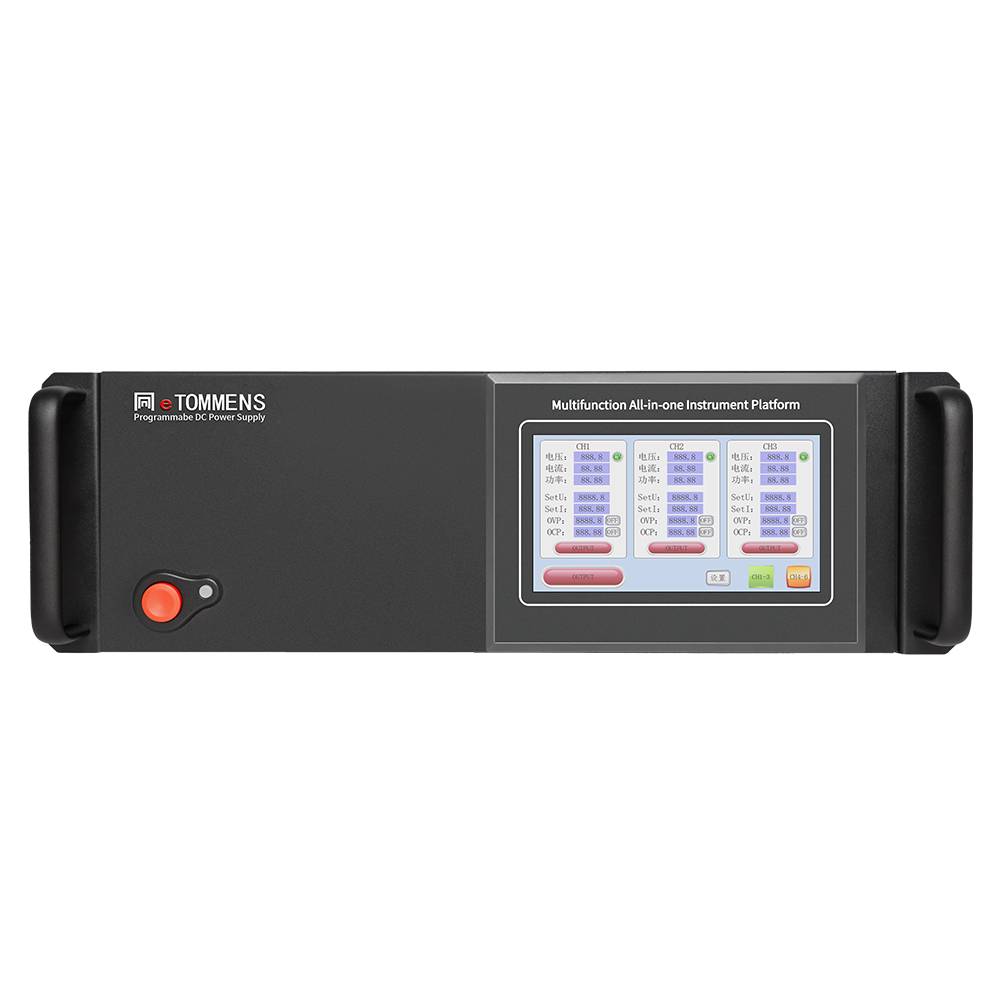

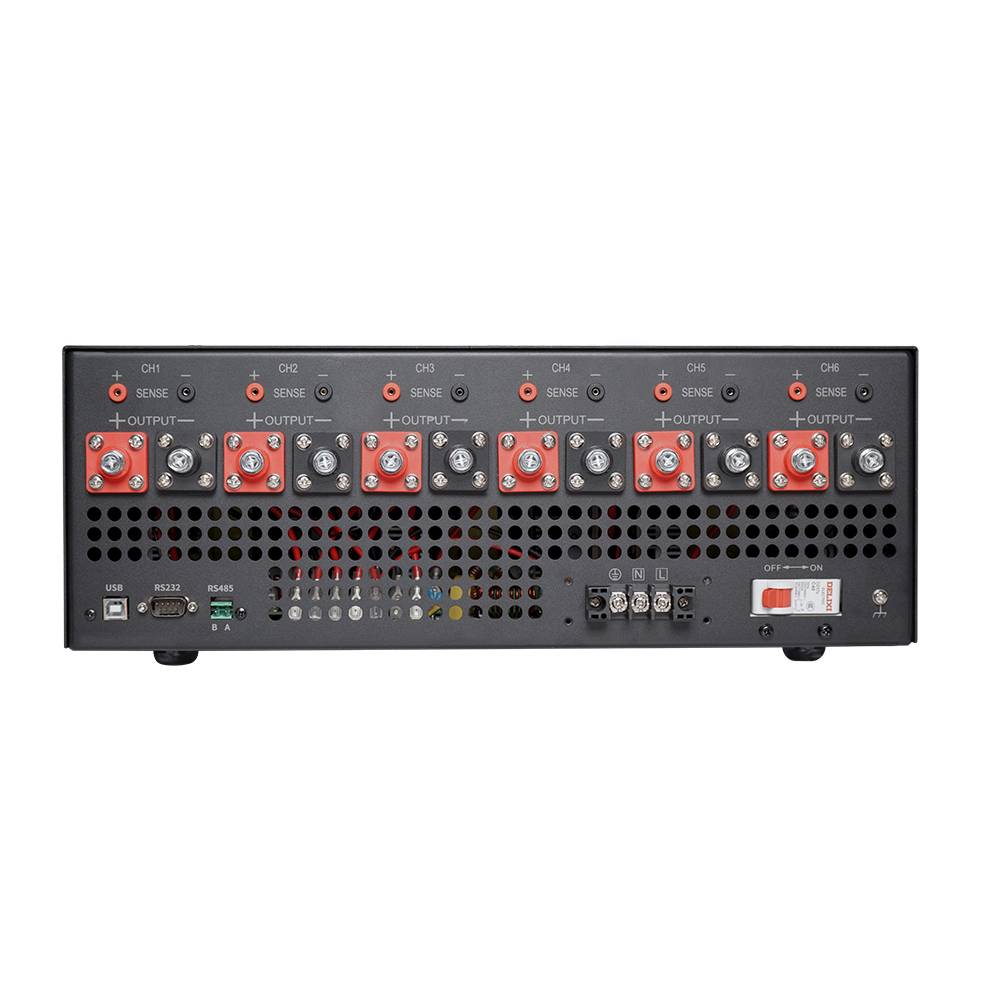

UMM-6 series is a high power modular rack-mounted DC power supply built for high-current, low-voltage test scenarios. Ten single-channel modules (L to U) covering 15V-100V and 5A-60A up to 1200W can be freely combined, each channel independently controlling its own output parameters and status from a 7-inch touch screen. It offers front and rear dual serial ports, standard Modbus and SCPI, a standard RS232, RS485 and USB three-in-one interface, and short circuit, over-voltage, over-current, over-power and reverse polarity protection.
Key Features
- 10 modules to choose from, can be freely selected according to needs
- 7-inch touch screen display, easy to operate
- Each channel can independently control output parameters and status
- Equipped with short circuit, over-voltage, over-current, over-power, and reverse polarity protection functions
- Standard RS232, RS485, and USB three in one communication interface for automated control
Available for Global Distribution & OEM
Brand: eTOMMENS
Manufacturer: eTOMMENS
OEM / Private Label: Available
Technical Support: Available
Click a thumbnail to view a larger image.
Specifications
Swipe horizontally to view the full table.
| Model | Voltage | Current | Power |
|---|---|---|---|
| Module L | 0-15V | 0-60A | 900W |
| Module M | 0-20V | 0-50A | 1000W |
| Module N | 0-30V | 0-20A | 600W |
| Module O | 0-30V | 0-30A | 900W |
| Module P | 0-50V | 0-20A | 1000W |
| Module Q | 0-60V | 0-10A | 600W |
| Module R | 0-60V | 0-15A | 900W |
| Module S | 0-60V | 0-20A | 1200W |
| Module T | 0-100V | 0-5A | 500W |
| Module U | 0-100V | 0-10A | 1000W |
Applications
- Product R&D
- Quality testing
Communication Interface
- Standard RS232, RS485, and USB three in one communication interface for automated control
Protection Functions
- Equipped with short circuit, over-voltage, over-current, over-power, and reverse polarity protection functions
Datasheet
Every file below is an original document we hold. Files are listed here only where the document itself names this series or model.
- Product Catalog Multi-Channel Power Supply Catalog 26.6.24.V1 (PDF) Download · 10.5 MB
- Product Catalog High Precision Rack Power Supply Catalog 26.6.24.V1 (PDF) Download · 17.6 MB
- Product Manual UMM-6 channel module power supply series product manual.docx Download · 565 KB
OEM & Private Label
OEM and private-label service is available for this series. Brand: eTOMMENS. Manufacturer: eTOMMENS. Technical support: available. Contact sales to discuss your OEM requirements.
