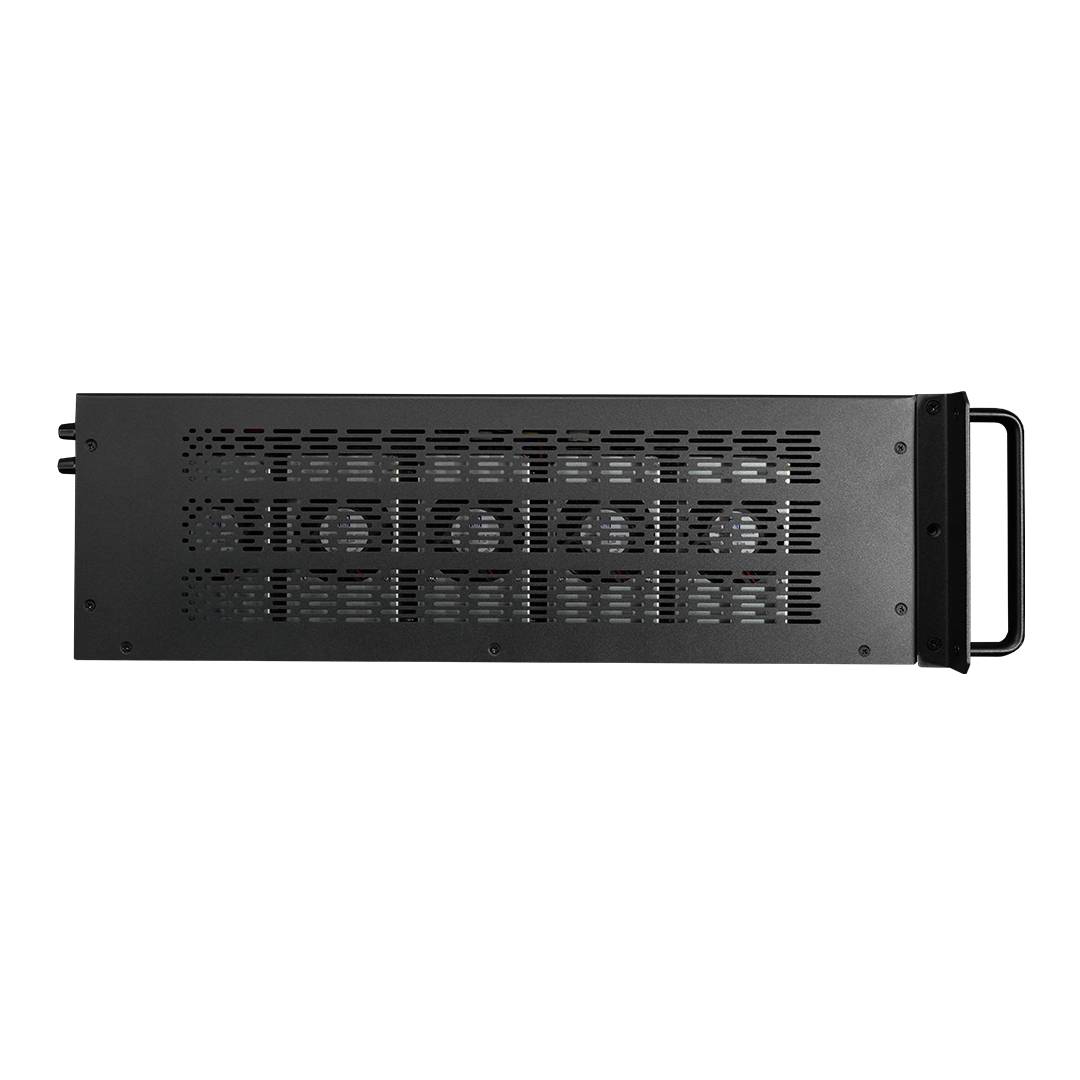

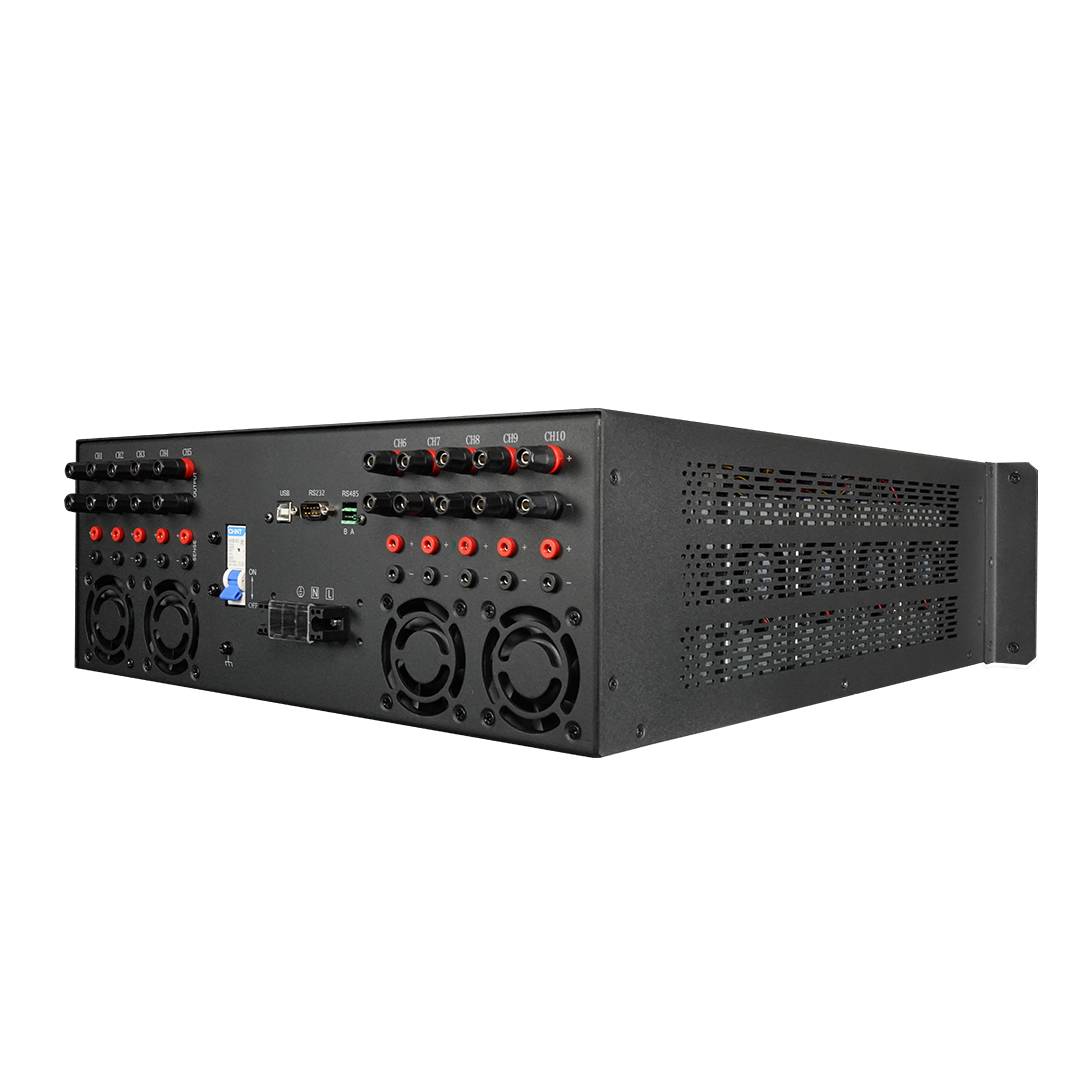

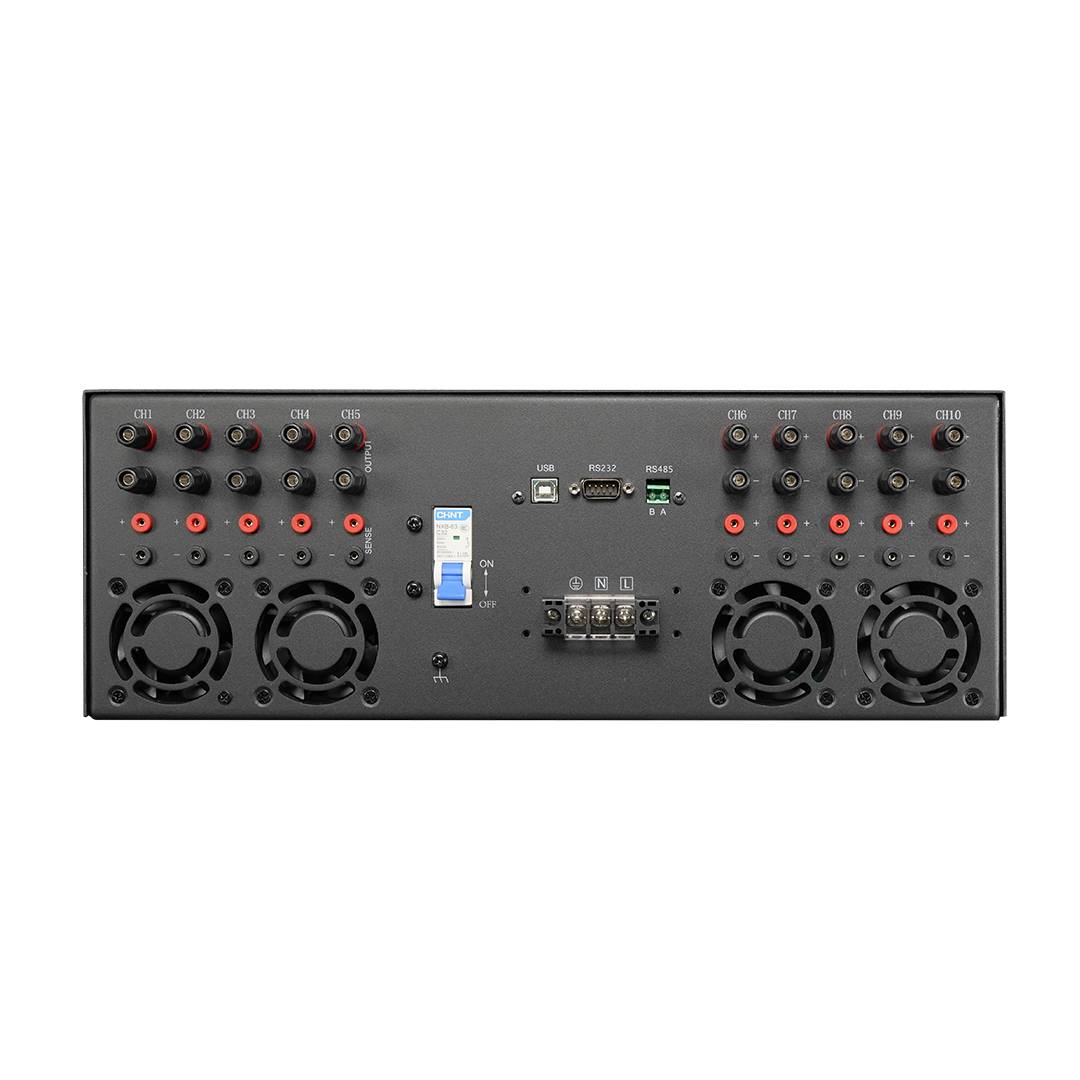

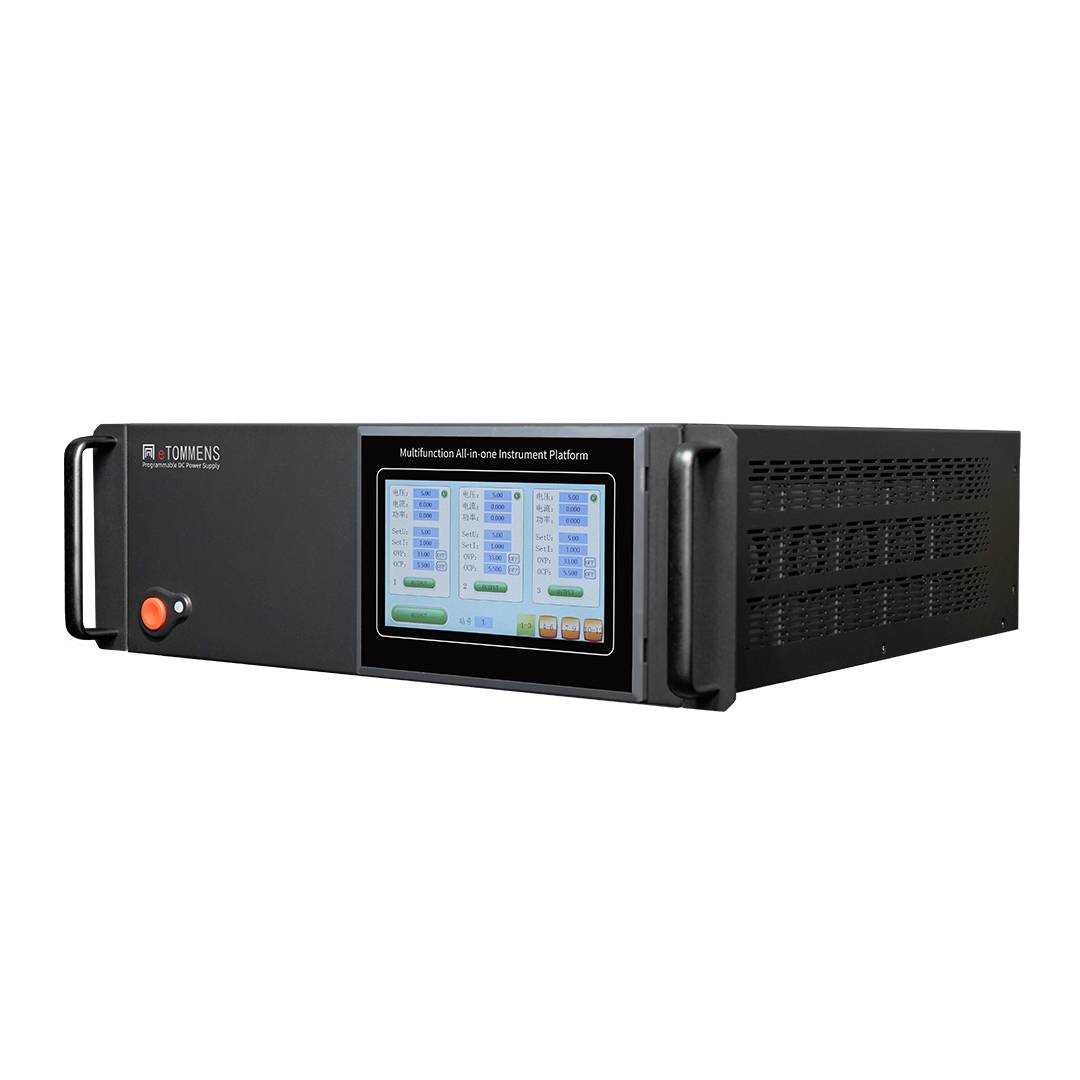

Product Images
Series Overview
UM-10 series is a high precision modular rack-mounted DC power supply.
Product Highlights
- Voltage0-15V / 0-30V / 0-60V / 0-100V / 0-150V / 0-40V / 0-80V / 0-160V
- Current0-2A / 0-5A / 0-10A / 0-3A / 0-20A
- Power30W / 75W / 150W / 300W
- Form FactorRack-mountable
- InterfaceUSB · RS232 · RS485

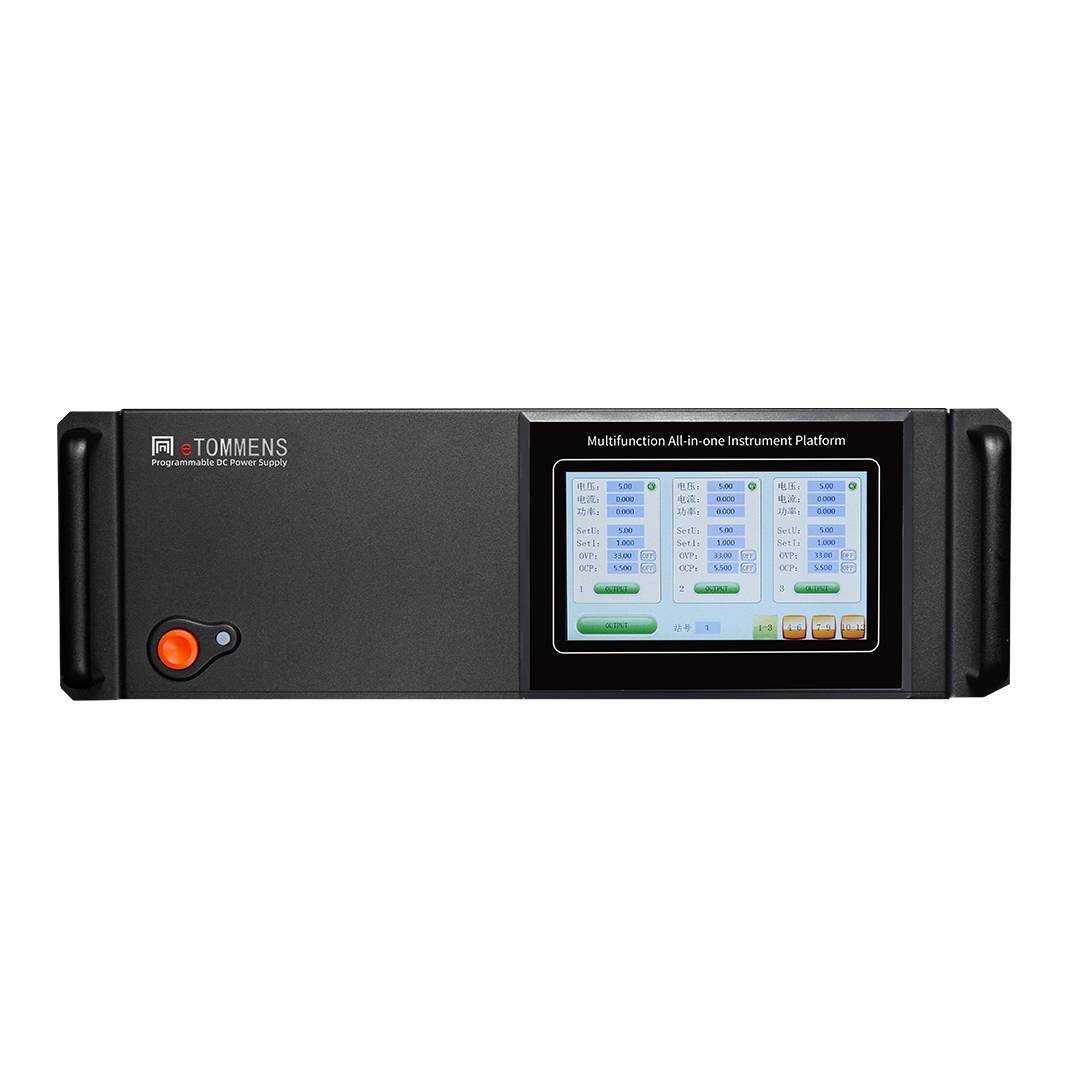

High precision rack mounted power supply UM-10 Series
Series / category: Multi-Channel DC Power Supply
Product Overview
UM-10 series is a high precision modular rack-mounted DC power supply. Eleven single-channel modules (A to K) covering 15V-160V and 2A-20A can be freely combined for any test requirement, each channel independently controlling its own output parameters and status from a 7-inch touch screen. It offers front and rear dual serial ports, standard Modbus and SCPI, standard RS232 with USB optional and Ethernet possible, an optional buzzer, and short circuit, over-voltage, over-current, over-power and reverse polarity protection.
Key Features
- 11 modules to choose from, can be freely selected according to needs
- 7-inch touch screen display, easy to operate
- Each channel can independently control output parameters and status
- Equipped with short circuit, over-voltage, over-current, over-power, and reverse polarity protection functions
- Standard RS232, RS485, and USB three in one communication interface for automated control
Available for Global Distribution & OEM
Brand: eTOMMENS
Manufacturer: eTOMMENS
OEM / Private Label: Available
Technical Support: Available
Click a thumbnail to view a larger image.
Specifications
Swipe horizontally to view the full table.
| Model | Voltage | Current | Power |
|---|---|---|---|
| Module A | 0-15V | 0-2A | 30W |
| Module B | 0-15V | 0-5A | 75W |
| Module C | 0-30V | 0-5A | 150W |
| Module D | 0-30V | 0-10A | 300W |
| Module E | 0-60V | 0-5A | 300W |
| Module F | 0-100V | 0-3A | 300W |
| Module G | 0-15V | 0-20A | 300W |
| Module H | 0-150V | 0-2A | 300W |
| Module I | 0-40V | 0-20A | 300W |
| Module J | 0-80V | 0-10A | 300W |
| Module K | 0-160V | 0-5A | 300W |
Applications
- Product R&D
- Quality testing
Communication Interface
- Standard RS232, RS485, and USB three in one communication interface for automated control
Protection Functions
- Equipped with short circuit, over-voltage, over-current, over-power, and reverse polarity protection functions
Datasheet
Every file below is an original document we hold. Files are listed here only where the document itself names this series or model.
- Product Catalog Multi-Channel Power Supply Catalog 26.6.24.V1 (PDF) Download · 10.5 MB
- Product Catalog High Precision Rack Power Supply Catalog 26.6.24.V1 (PDF) Download · 17.6 MB
- Product Manual UM-10 Channel Series Module Power Product Manual.docx Download · 506 KB
OEM & Private Label
OEM and private-label service is available for this series. Brand: eTOMMENS. Manufacturer: eTOMMENS. Technical support: available. Contact sales to discuss your OEM requirements.
Quick Answers
What is the High precision rack mounted power supply UM-10 Series?
The High precision rack mounted power supply UM-10 Series is a DC power supply from eTOMMENS. Model details are available on request.
Which control interfaces does it support?
Standard RS232, RS485, and USB three in one communication interface for automated control
How do I get a quotation for this model?
Send your requirements to wendy@etommensglobal.com and our engineers will recommend a suitable model and quote.
