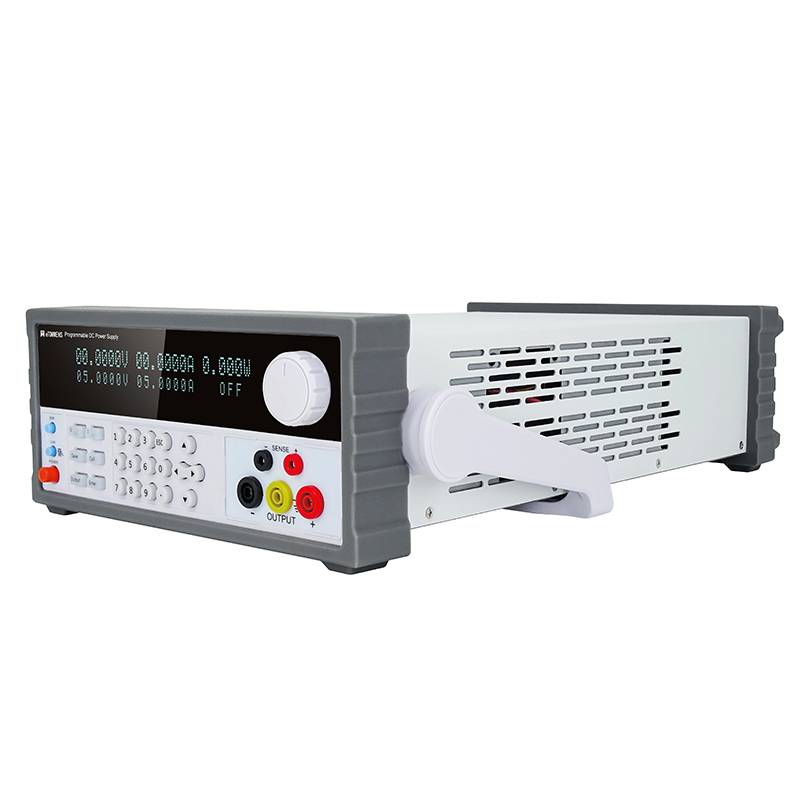

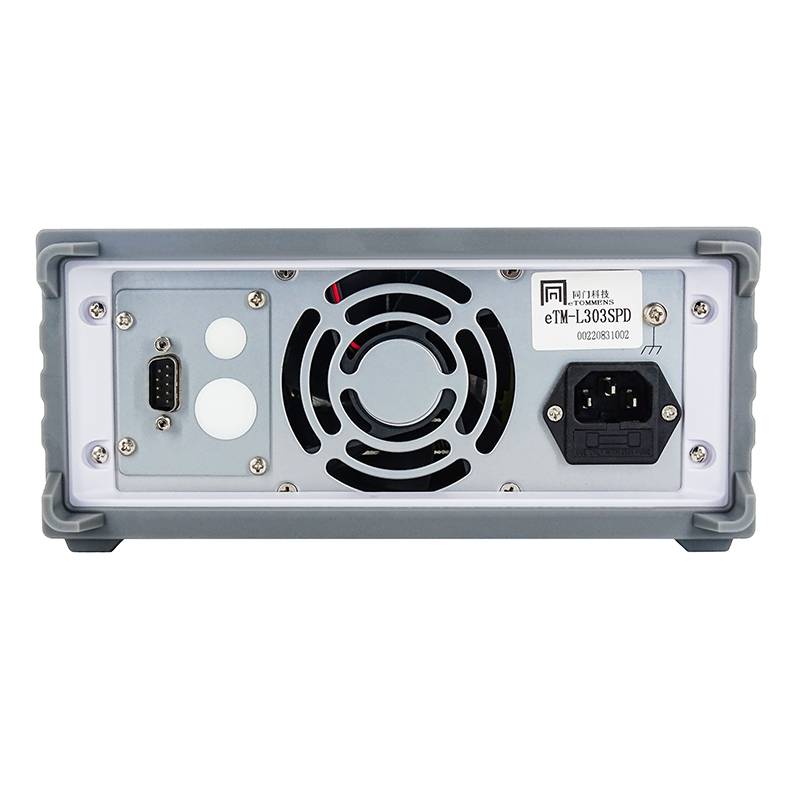

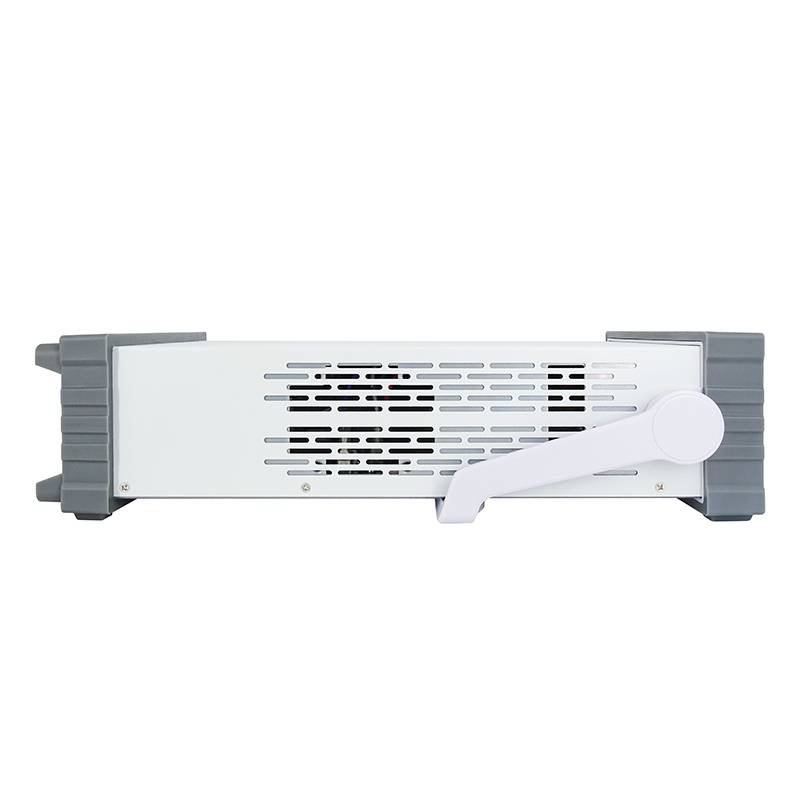

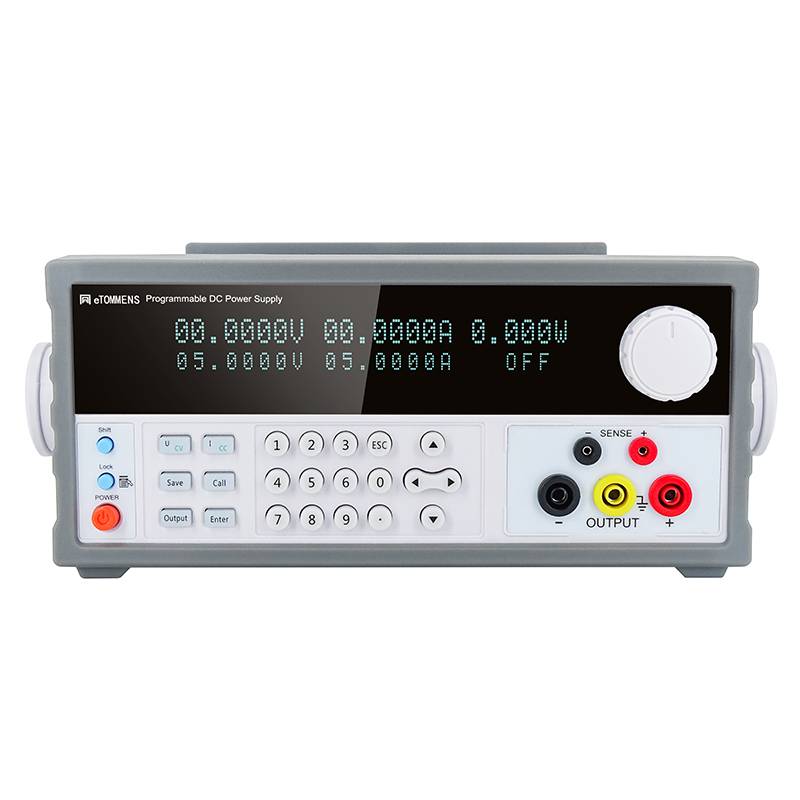

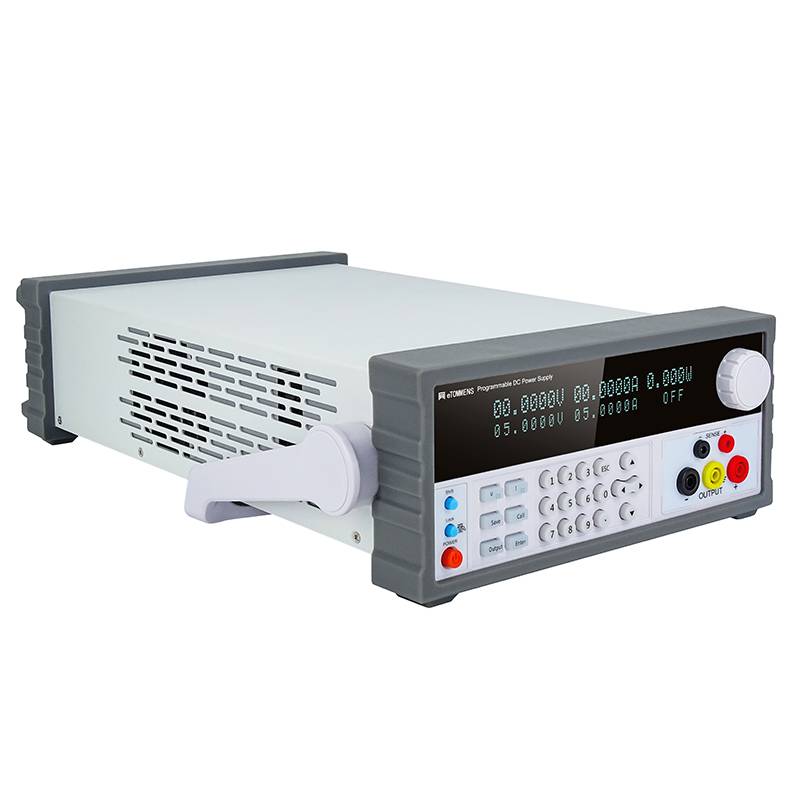

Product Images
6-Digits 0 to 150V VFD Screen High Precision programmable Linear DC Power Supply LSPV
Series / category: Linear DC Power Supply
Key Features
- Upper computer could directly operate the hard disk of the host
- 10 groups of shortcut parameter storage
- Front SENSE interface
- Multiple power-up modes are available
- Compatible with standard Modbus and SCPI protocols
Available for Global Distribution & OEM
Brand: eTOMMENS
Manufacturer: eTOMMENS
OEM / Private Label: Available
Technical Support: Available
Click a thumbnail to view a larger image.
Model
2 models in this series. Full electrical data is in the specification table below.
- eTM-L1501PV+
- eTM-L1503PV+
Specifications
Swipe horizontally to view the full table.
| Model | Voltage | Current | Resolution | Precision | Interface |
|---|---|---|---|---|---|
| eTM-L1501PV+ | 0~150V | 0~1A | 0.01mV;0.01mA | ±(0.02% of reading±5mV)(25±5°C);± (0.05% of reading±0.1% of FS)(25±5°C) | Standard configuration of RS232 interface and SENSE interface；Optional RS485 interface、USB interface、LAN interface and trigger interface.Optional 220/110 switching interface;Optional analog quantity interface (can only be used with RS232 serial port) |
| eTM-L1503PV+ | 0~150V | 0~3A | 0.01mV;0.01mA | ±(0.02% of reading±5mV)(25±5°C);± (0.05% of reading±0.1% of FS)(25±5°C) | Standard configuration of RS232 interface and SENSE interface；Optional RS485 interface、USB interface、LAN interface and trigger interface.Optional 220/110 switching interface;Optional analog quantity interface (can only be used with RS232 serial port) |
Communication Interface
- Standard configuration of RS232 interface and SENSE interface；Optional RS485 interface、USB interface、LAN interface and trigger interface.Optional 220/110 switching interface;Optional analog quantity interface (can only be used with RS232 serial port)
- Front SENSE interface
- Compatible with standard Modbus and SCPI protocols
Quick Answers
What is the 6-Digits 0 to 150V VFD Screen High Precision programmable Linear DC Power Supply LSPV?
The 6-Digits 0 to 150V VFD Screen High Precision programmable Linear DC Power Supply LSPV is a DC power supply from eTOMMENS. 2 models are listed in the specification table on this page.
Which control interfaces does it support?
Standard configuration of RS232 interface and SENSE interface；Optional RS485 interface、USB interface、LAN interface and trigger interface.Optional 220/110 switching interface;Optional analog quantity interface (can only be used with RS232 serial port) Front SENSE interface
How do I get a quotation for this model?
Send your requirements to wendy@etommensglobal.com and our engineers will recommend a suitable model and quote.
OEM & Private Label
OEM and private-label service is available for this series. Brand: eTOMMENS. Manufacturer: eTOMMENS. Technical support: available. Contact sales to discuss your OEM requirements.
