Product Images
Series Overview
DP series is a 300W small chassis DC regulated power supply with rotary encoder parameter adjustment.
Product Highlights
- Voltage0~30V
- Current0~3A / 0~5A
- InterfaceUSB · RS232 · RS485 · CAN · External Analog

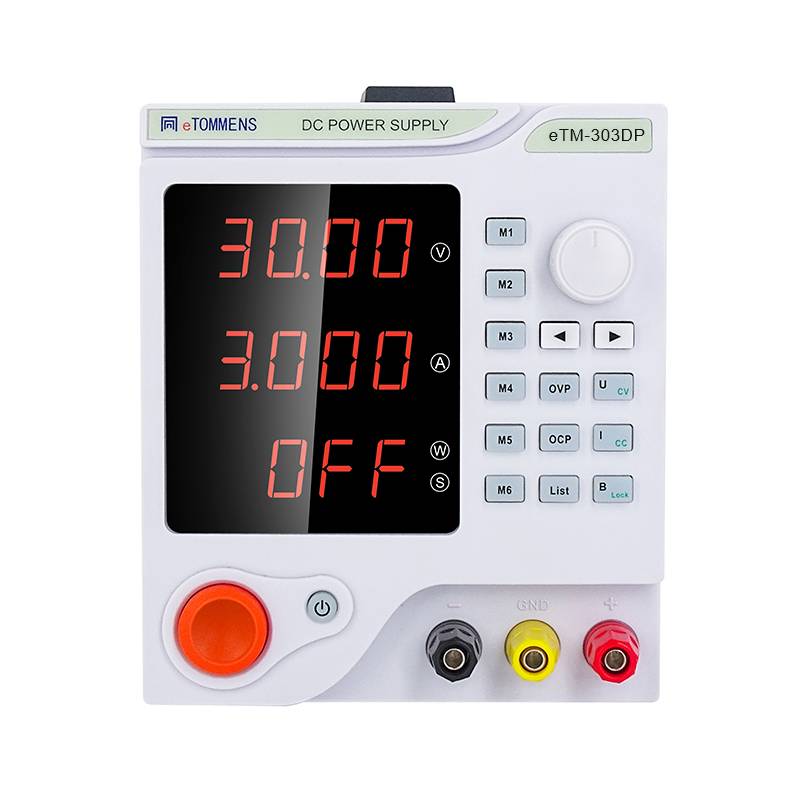

300W 0 To 30V Ordinary Programmable Linear DC Power Supply DP Series
Series / category: Linear DC Power Supply
Product Overview
DP series is a 300W small chassis DC regulated power supply with rotary encoder parameter adjustment. The lineup covers five models from 150W to 300W, suitable for circuit board and mobile phone detection applications.
Key Features
- List sequence testing technology
- 6 groups of shortcut parameter storage
- Support five powerful protection functions
- Rear communication function
Available for Global Distribution & OEM
Brand: eTOMMENS
Manufacturer: eTOMMENS
OEM / Private Label: Available
Technical Support: Available
Click a thumbnail to view a larger image.
Model
2 models in this series. Full electrical data is in the specification table below.
- eTM-303DP
- eTM-305DP
Specifications
Swipe horizontally to view the full table.
| Model | Voltage | Current | Resolution | Precision | Interface |
|---|---|---|---|---|---|
| eTM-303DP | 0~30V | 0~3A | 10mV;1mA | <0.1%+5digits;<0.2%+10digits | Optional RS232 interface、RS485 interface and USB interface;Optional 220/110 switching interface;Optional analog quantity interface (can only be used with RS232 serial port) |
| eTM-305DP | 0~30V | 0~5A | 10mV;1mA | <0.1%+5digits;<0.2%+10digits | Optional RS232 interface、RS485 interface and USB interface;Optional 220/110 switching interface;Optional analog quantity interface (can only be used with RS232 serial port) |
Applications
- Circuit board detection
- Mobile phone detection
Communication Interface
- Optional RS232 interface、RS485 interface and USB interface;Optional 220/110 switching interface;Optional analog quantity interface (can only be used with RS232 serial port)

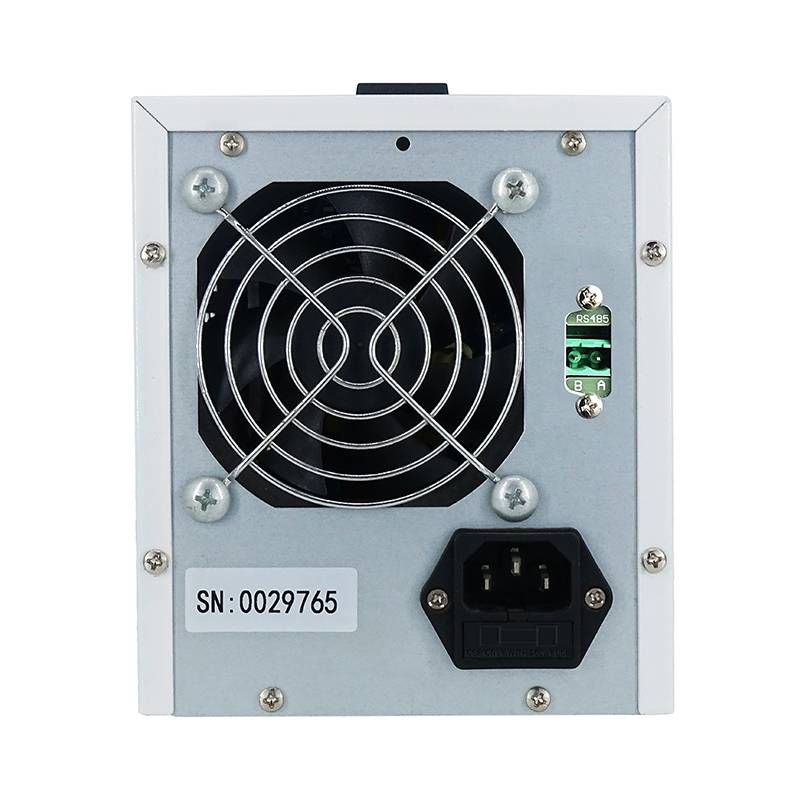

- Rear communication function
Protection Functions
- Support five powerful protection functions
Datasheet
Every file below is an original document we hold. Files are listed here only where the document itself names this series or model.
- Communication Protocol P Series / C Series Communication Protocol (DOC) Request Document
- SCPI Command Table SCPI Command Table (TXT) Request Document
- User Manual 300W programmable power supply.doc Download · 316 KB
OEM & Private Label
OEM and private-label service is available for this series. Brand: eTOMMENS. Manufacturer: eTOMMENS. Technical support: available. Contact sales to discuss your OEM requirements.
Quick Answers
What is the 300W 0 To 30V Ordinary Programmable Linear DC Power Supply DP Series?
The 300W 0 To 30V Ordinary Programmable Linear DC Power Supply DP Series is a DC power supply from eTOMMENS. 2 models are listed in the specification table on this page.
Which control interfaces does it support?
Optional RS232 interface、RS485 interface and USB interface;Optional 220/110 switching interface;Optional analog quantity interface (can only be used with RS232 serial port) Rear communication function
How do I get a quotation for this model?
Send your requirements to wendy@etommensglobal.com and our engineers will recommend a suitable model and quote.
