Product Images
Series Overview
DF series is a 300W small chassis DC regulated power supply with low ripple output and five protection functions.
Product Highlights
- Voltage0~30V
- Current0~3A

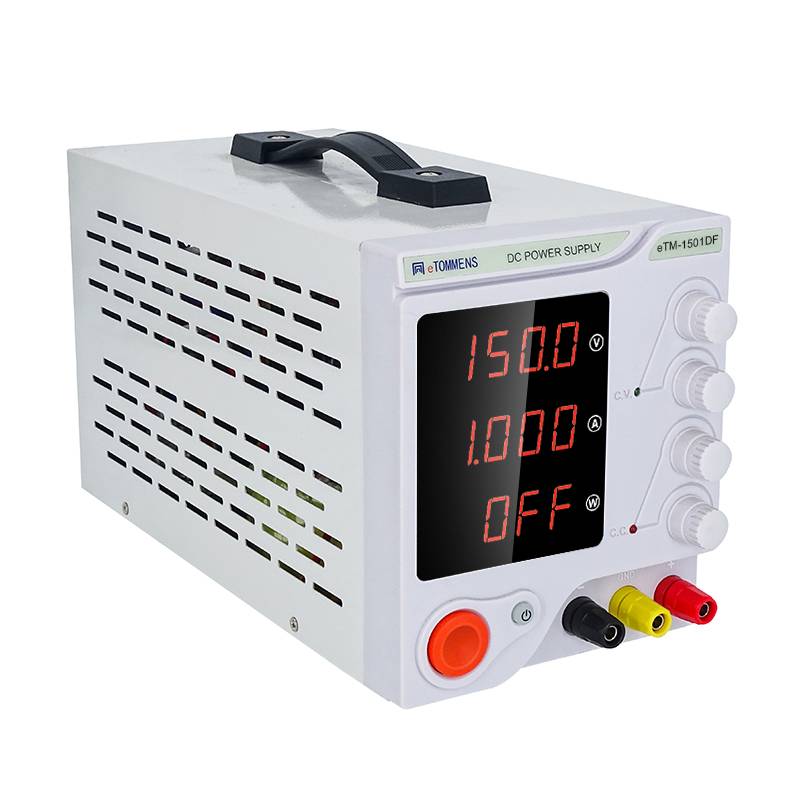

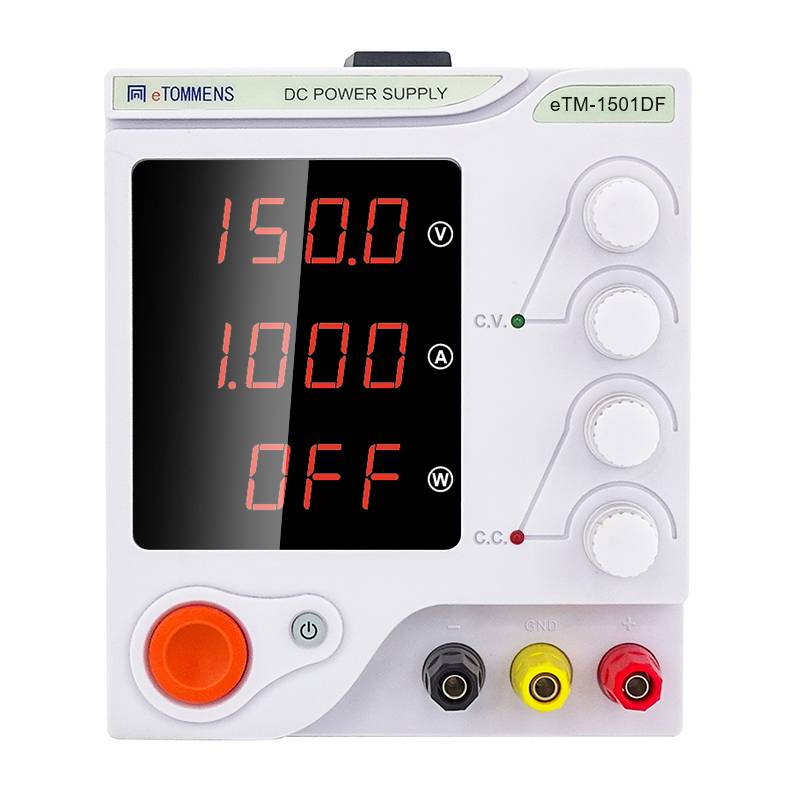

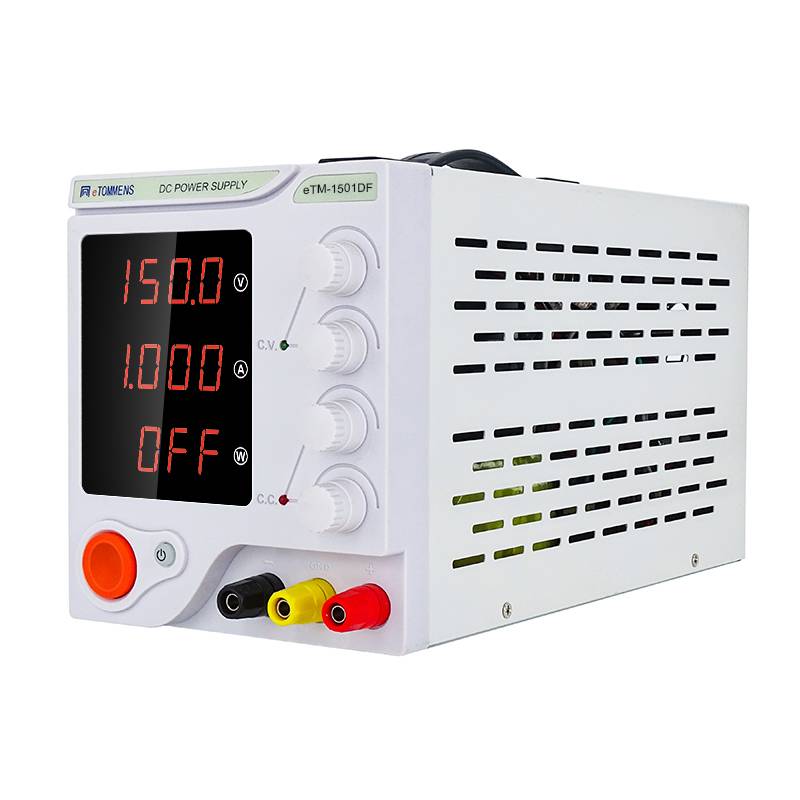

300W 0 To 150V Ordinary Linear DC Power Supply DF Series
Series / category: Linear DC Power Supply
Product Overview
DF series is a 300W small chassis DC regulated power supply with low ripple output and five protection functions. Five models cover 30V/3A, 30V/5A, 60V/3A, 60V/5A and 150V/1A in a 280×130×165mm chassis weighing about 4.5kg.
Key Features
- Voltage and current can be preconfigured
- Power display
- Low ripple
- ON-OFF switch
- Support five powerful protection functions
Available for Global Distribution & OEM
Brand: eTOMMENS
Manufacturer: eTOMMENS
OEM / Private Label: Available
Technical Support: Available
Click a thumbnail to view a larger image.
Model
1 model in this series. Full electrical data is in the specification table below.
- eTM-1501DF
Specifications
Swipe horizontally to view the full table.
| Model | Voltage | Current | Resolution | Precision | Interface |
|---|---|---|---|---|---|
| eTM-1501DF | 0~30V | 0~3A | 10mV;1mA | <0.1%+5digits;<0.2%+10digits | Optional 220/110 switching interface |
Applications
- Circuit board detection
- Mobile phone detection
Communication Interface
- Optional 220/110 switching interface
Protection Functions
- Support five powerful protection functions
Datasheet
Every file below is an original document we hold. Files are listed here only where the document itself names this series or model.
- User Manual 300W regualr power supply.pdf Download · 387 KB
OEM & Private Label
OEM and private-label service is available for this series. Brand: eTOMMENS. Manufacturer: eTOMMENS. Technical support: available. Contact sales to discuss your OEM requirements.
Quick Answers
What is the 300W 0 To 150V Ordinary Linear DC Power Supply DF Series?
The 300W 0 To 150V Ordinary Linear DC Power Supply DF Series is a DC power supply from eTOMMENS. 1 model is listed in the specification table on this page.
Which control interfaces does it support?
Optional 220/110 switching interface
How do I get a quotation for this model?
Send your requirements to wendy@etommensglobal.com and our engineers will recommend a suitable model and quote.
