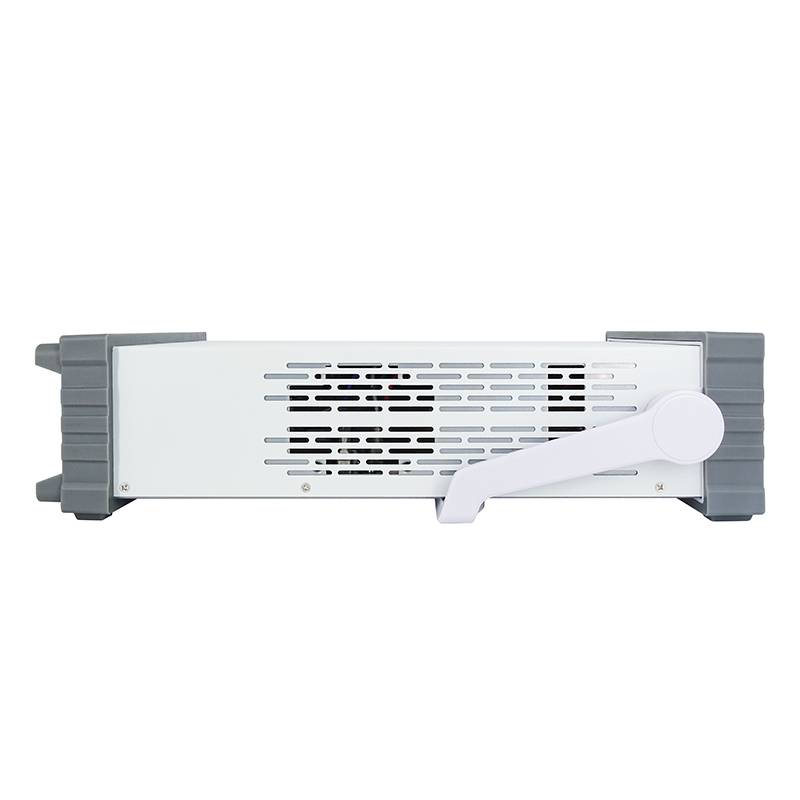

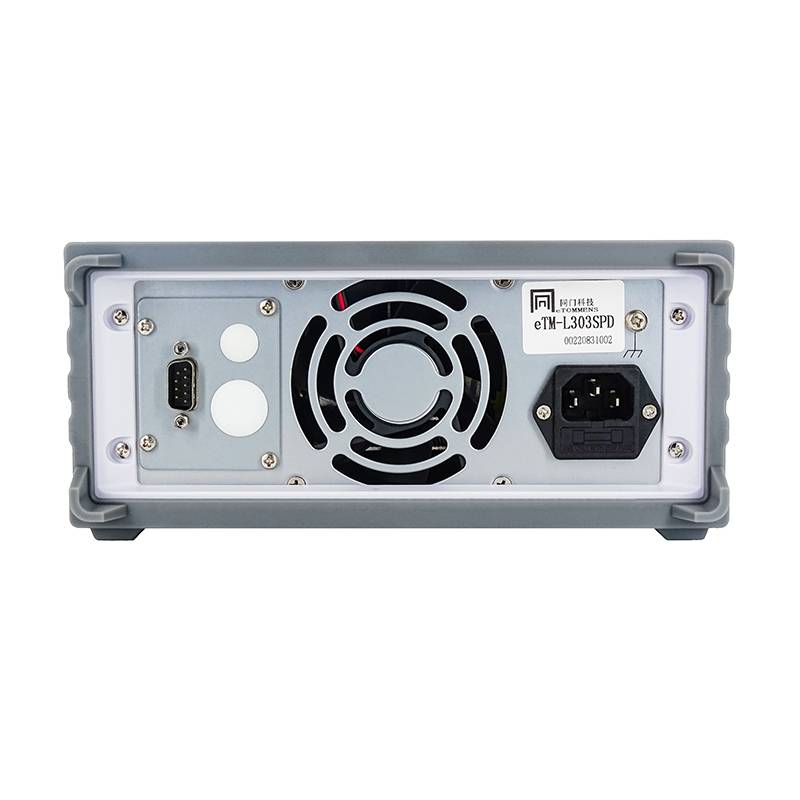

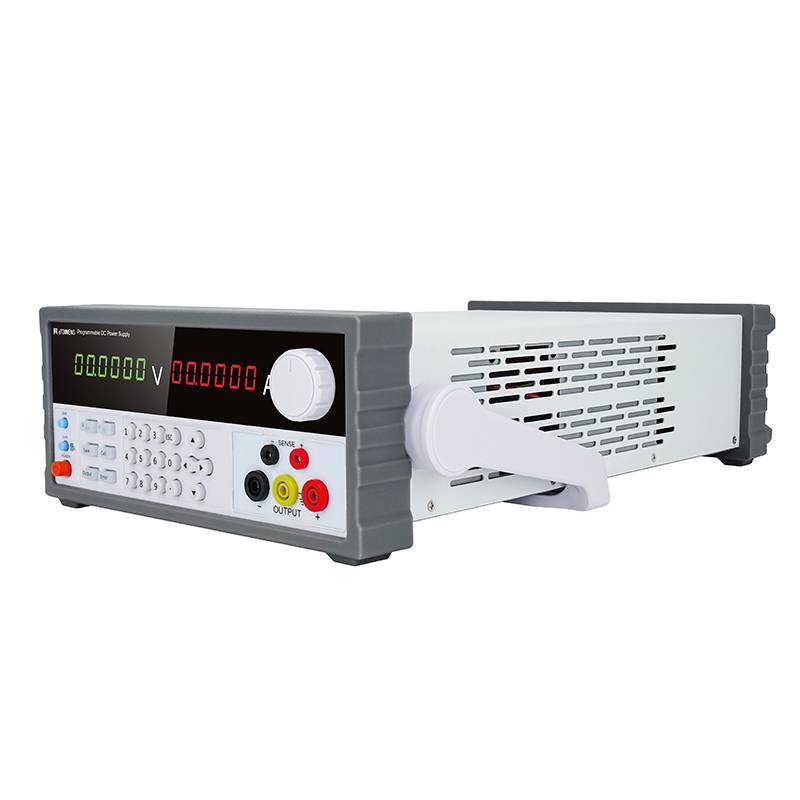

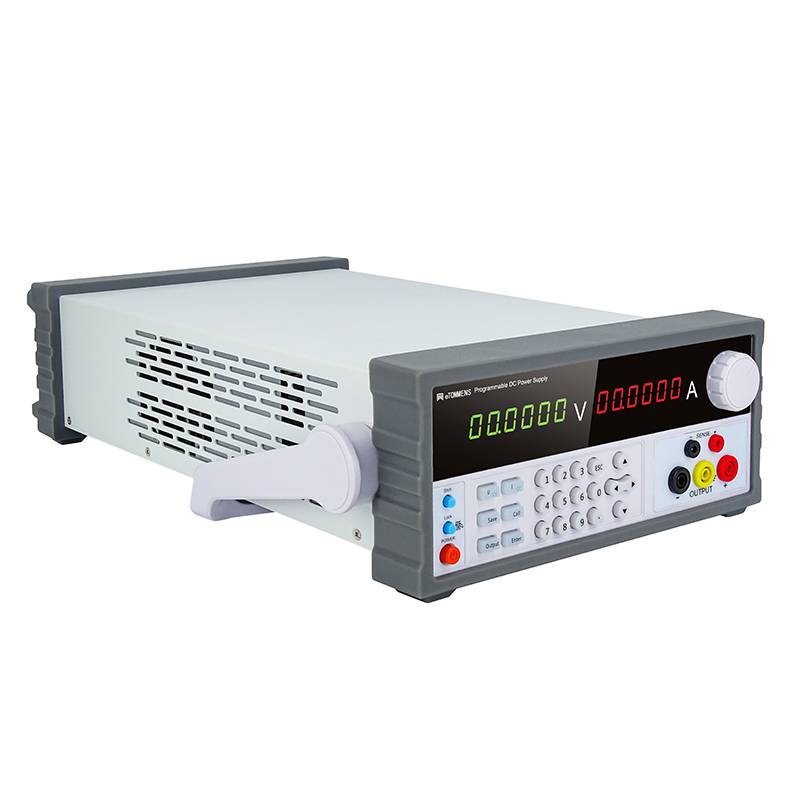

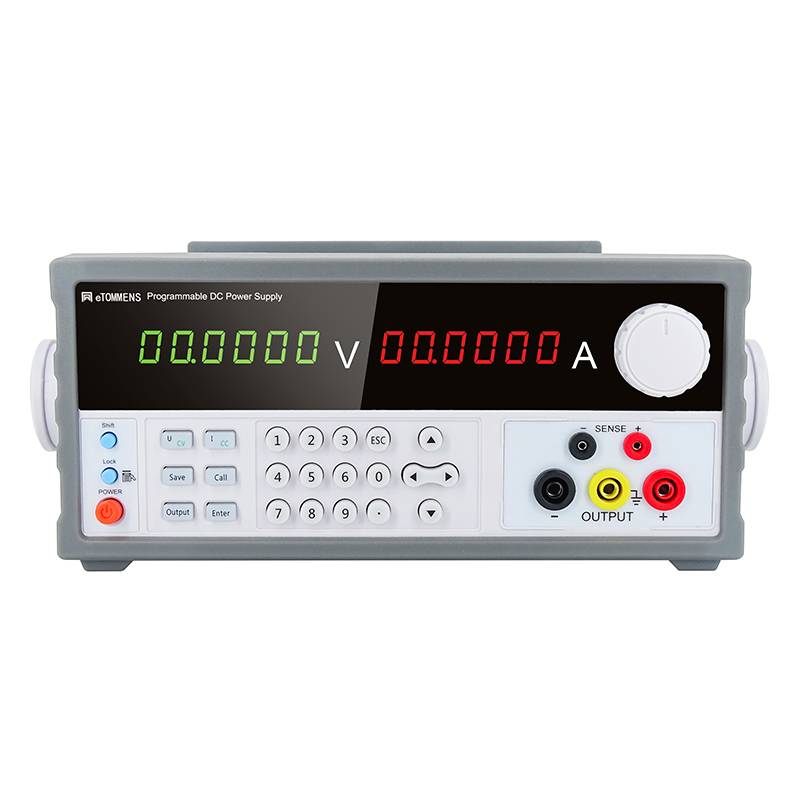

Product Images
Series Overview
LSPD / LSPD+ series is a high precision linear cabinet DC power supply with digital tube display.
Product Highlights
- Voltage0~150V
- Current0~1A / 0~3A
- Power150W / 450W
- InterfaceLAN · USB · RS232 · RS485 · CAN · External Analog
6-digit 0 To 150V Digital Tube High Precision Programmable Linear Power Supply LSPD+ Series
Series / category: Linear DC Power Supply
Product Overview
LSPD / LSPD+ series is a high precision linear cabinet DC power supply with digital tube display. It provides Window List sequence test technology storing and recalling 100 sets of voltage and current data, 10 groups of shortcut parameter storage, front SENSE, front and rear dual serial port mode, standard Modbus and SCPI protocols, and a VSelf voltage auto-calibration function. Nineteen models cover 30V/3A to 300V/1A in a 377+/-3(D) x 215(W) x 89(H) mm chassis weighing approximately 7.5kg.
Key Features
- Upper computer could directly operate the hard disk of the host
- 10 groups of shortcut parameter storage
- Front SENSE interface
- Multiple power-up modes are available
- Compatible with standard Modbus and SCPI protocols
Available for Global Distribution & OEM
Brand: eTOMMENS
Manufacturer: eTOMMENS
OEM / Private Label: Available
Technical Support: Available
Click a thumbnail to view a larger image.
Model
2 models in this series. Full electrical data is in the specification table below.
- eTM-L1501SPD+
- eTM-L1503SPD+
Specifications
Swipe horizontally to view the full table.
| Model | Voltage | Current | Power |
|---|---|---|---|
| eTM-L1501SPD+ | 0~150V | 0~1A | 150W |
| eTM-L1503SPD+ | 0~150V | 0~3A | 450W |
Applications
- Automated testing
- Aging test
Communication Interface
- Standard configuration of RS232 interface and SENSE interface；Optional RS485 interface、USB interface、LAN interface and trigger interface.Optional 220/110 switching interface;Optional analog quantity interface (can only be used with RS232 serial port)
- Front SENSE interface
- Compatible with standard Modbus and SCPI protocols
Datasheet
Every file below is an original document we hold. Files are listed here only where the document itself names this series or model.
- Product Catalog High Precision Rack Power Supply Catalog 26.6.24.V1 (PDF) Download · 17.6 MB
- SCPI Command Table SCPI Command Table (TXT) Request Document
- User Manual L_SPD Series Power Supply (Linear Power Supply with Digital Tube Display) User Manual V4.pdf Download · 9.7 MB
OEM & Private Label
OEM and private-label service is available for this series. Brand: eTOMMENS. Manufacturer: eTOMMENS. Technical support: available. Contact sales to discuss your OEM requirements.
Quick Answers
What is the 6-digit 0 To 150V Digital Tube High Precision Programmable Linear Power Supply LSPD+ Series?
The 6-digit 0 To 150V Digital Tube High Precision Programmable Linear Power Supply LSPD+ Series is a DC power supply from eTOMMENS. 2 models are listed in the specification table on this page.
Which control interfaces does it support?
Standard configuration of RS232 interface and SENSE interface；Optional RS485 interface、USB interface、LAN interface and trigger interface.Optional 220/110 switching interface;Optional analog quantity interface (can only be used with RS232 serial port) Front SENSE interface
