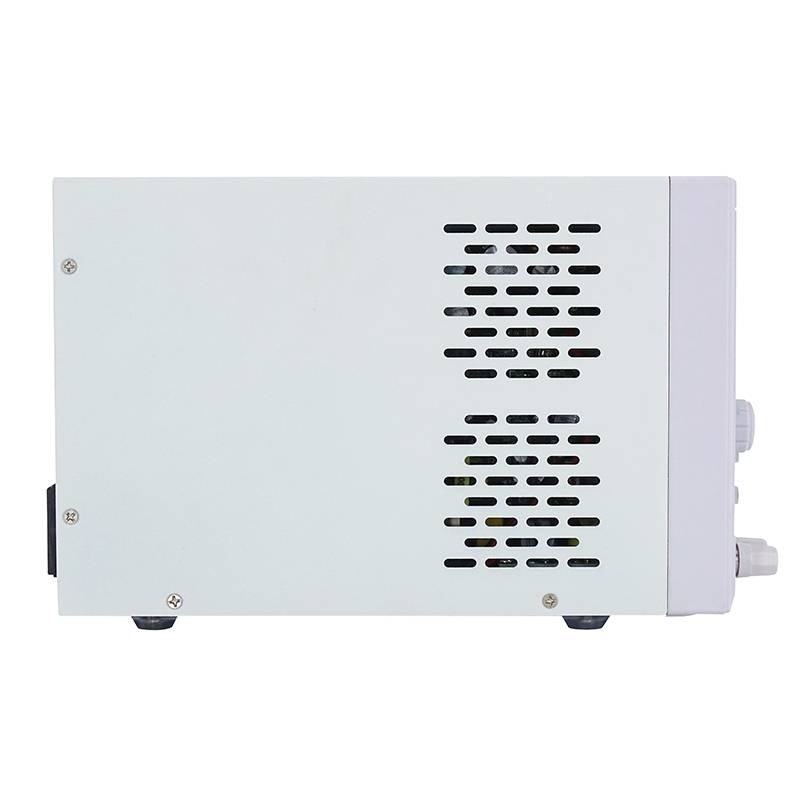

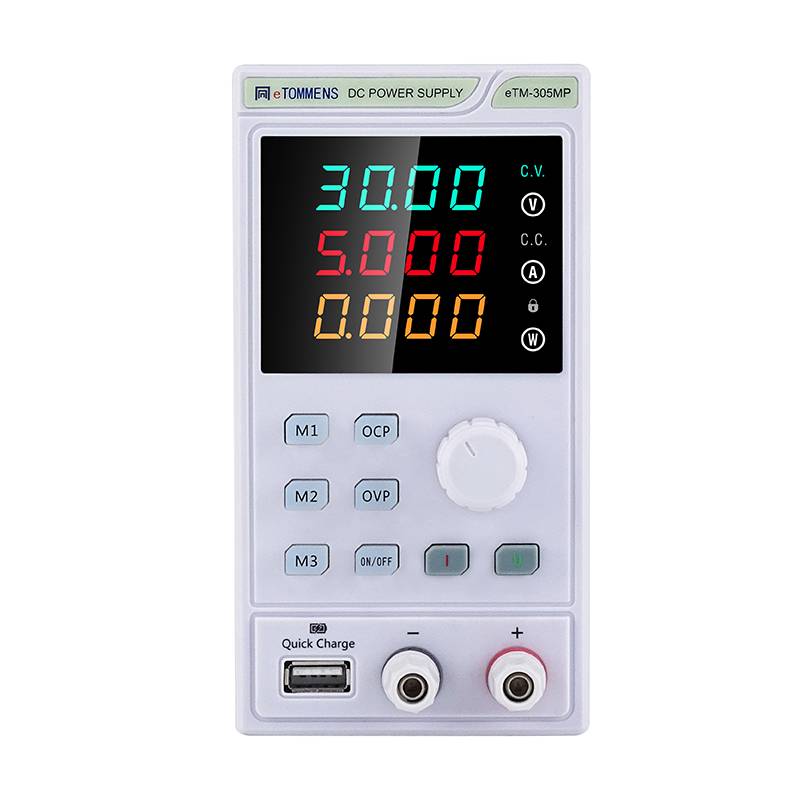

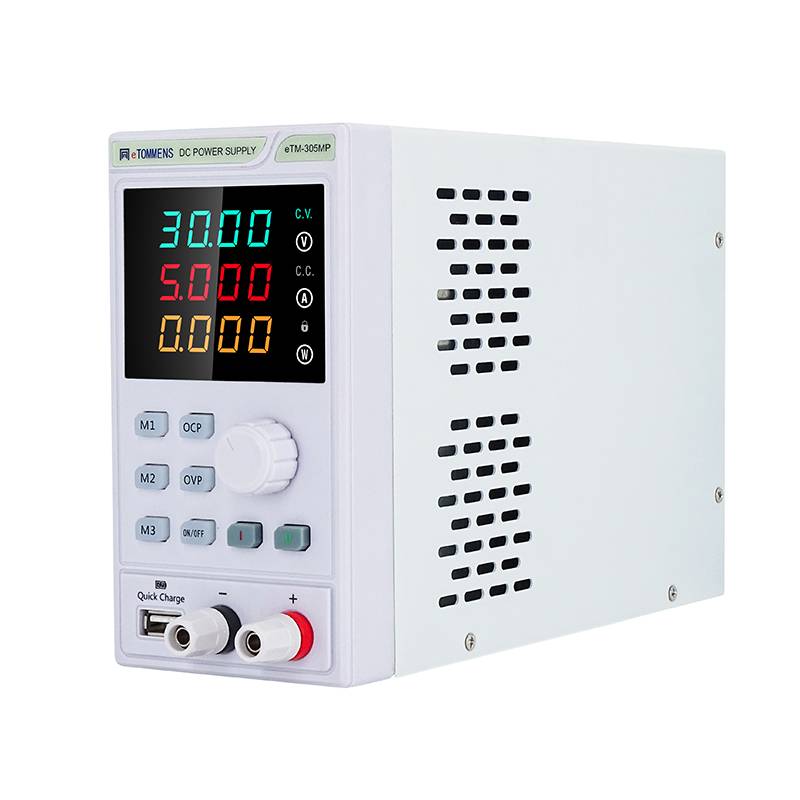

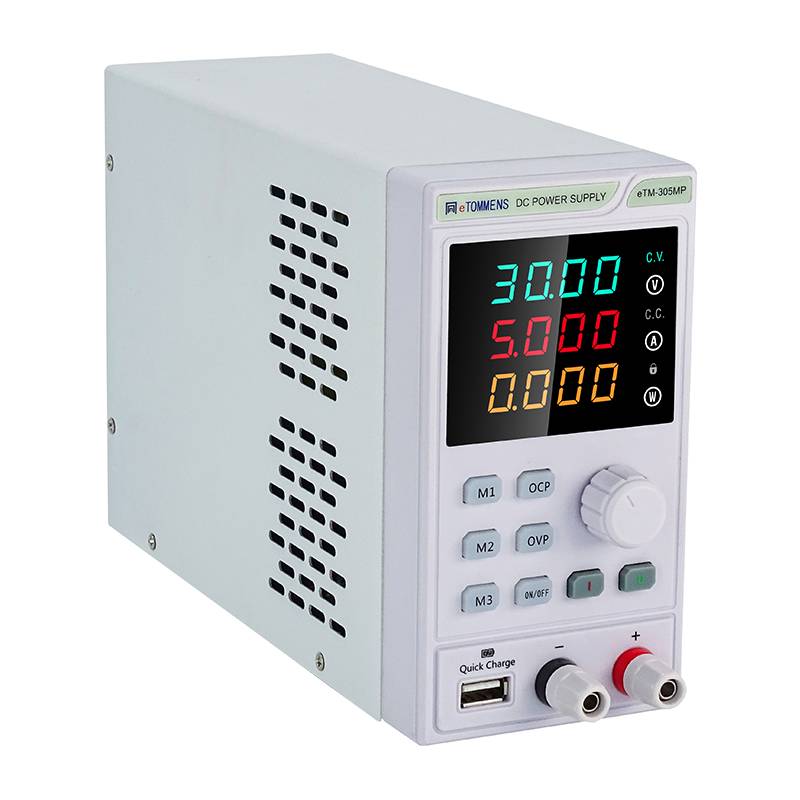

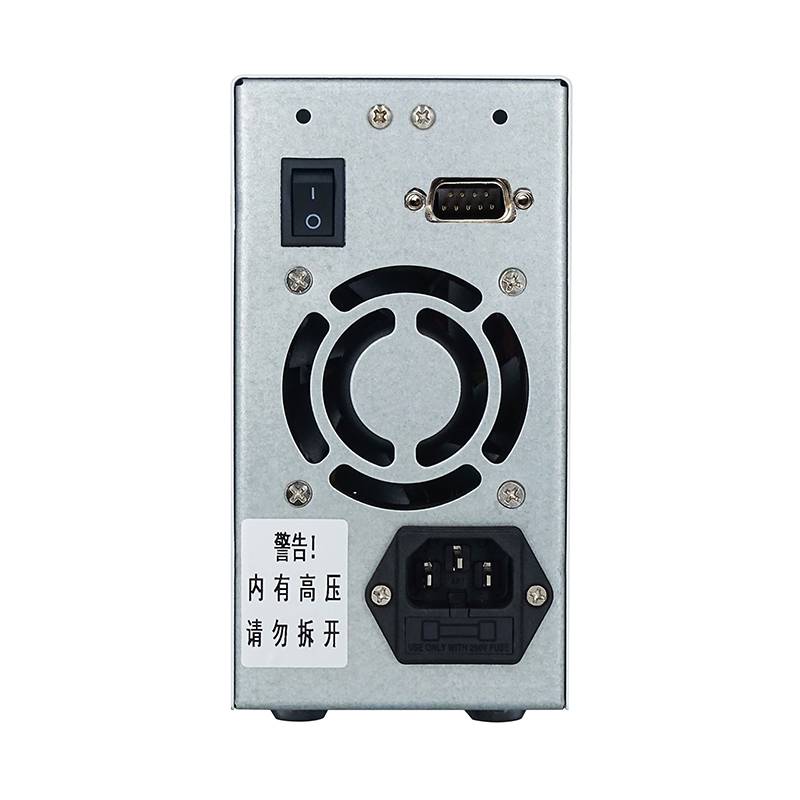

Product Images
Series Overview
MP series is a 300W small chassis programmable DC power supply with coded-switch digital control, three shortcut parameter storage keys and settable OVP/OCP gate values.
Product Highlights
- Voltage0~30V
- Current0~5A / 0~10A
- Power150W / 300W
- Form FactorBenchtop / Mini
- InterfaceUSB · RS232 · CAN · External Analog
300W 0 To 30V Mini Programmable DC Power Supply MP Series
Series / category: Benchtop DC Power Supply
Product Overview
MP series is a 300W small chassis programmable DC power supply with coded-switch digital control, three shortcut parameter storage keys and settable OVP/OCP gate values. Eight models cover 15V to 150V and 30W to 300W, with MODBUS communication support.
Key Features
- Output on/off upon powering
- 3 groups of shortcut parameter storage
- OVP and OCP gate values can be set
- Programmable settings to support MODBUScommunication protocol
Available for Global Distribution & OEM
Brand: eTOMMENS
Manufacturer: eTOMMENS
OEM / Private Label: Available
Technical Support: Available
Click a thumbnail to view a larger image.
Model
2 models in this series. Full electrical data is in the specification table below.
- eTM-305MP
- eTM-3010MP
Specifications
Swipe horizontally to view the full table.
| Model | Voltage | Current | Power |
|---|---|---|---|
| eTM-305MP | 0~30V | 0~5A | 150W |
| eTM-3010MP | 0~30V | 0~10A | 300W |
Applications
- Circuit board detection
- Mobile phone detection
Communication Interface
- Optional RS232 interface, RS485 interface and USB interface;Optional 220/110 switching interface;Optional analog quantity interface (can only be used with RS232 serial port)
- Programmable settings to support MODBUScommunication protocol
Protection Functions
- OVP and OCP gate values can be set
Datasheet
Every file below is an original document we hold. Files are listed here only where the document itself names this series or model.
- CE Certificate (LVD) MP Series CE Certificate (PDF) Download · 65 KB
- Product Catalog 300W Small Chassis Power Supply Catalog 26.6.25.V1 (PDF) Download · 17.7 MB
- SCPI Command Table SCPI Command Table (TXT) Request Document
- User Manual Mini programmable power supply muanal.pdf Download · 5.9 MB
OEM & Private Label
OEM and private-label service is available for this series. Brand: eTOMMENS. Manufacturer: eTOMMENS. Technical support: available. Contact sales to discuss your OEM requirements.
Certification
Every value below is read from the certificate document itself, not from a summary. The certificate names the models it covers; models it does not name are not claimed as certified here.
| Certification | CE — Certificate of Conformity, Low Voltage Directive 2014/35/EU |
|---|---|
| Certificate No. | PTC19120204001S-LD01 |
| Applied standard | EN 61010-1:2010+A1:2019 |
| Test report No. | PTC19120204001S-LD01 |
| Applicant / Manufacturer | DONGGUAN ETOMMENS ELECTRONIC TECHNOLOGY CO., LTD. |
| Issued by | Dongguan Precise Testing Service Co.,Ltd — Jacky Ou, Manager — dated March 26, 2019 |
| Product in certificate | DC Power Supply |
| Trade mark in certificate | N/A |
| Rating stated in certificate | Input: 220-240V~, 50Hz, 0.85A, 150W; Output: 30Vdc, 5.0A, 150W Max. |
| Models on this page covered | eTM-305MP, eTM-3010MP |
| All models named in certificate | eTM-305MP, eTM-3010MP, eTM-603MP, eTM-605MP, eTM-1002MP, eTM-1003MP, eTM-1202MP, eTM-1502MP, eTM-2001MP |
| Certificate file | MP Series CE Certificate (PDF) · 65 KB |
This document certifies safety under the Low Voltage Directive only. EMC, FCC or RoHS documents held for other series are not claimed for this model unless the document itself names it.
From the certificate text: this certificate is part of the full test report(s) and should be read in conjunction with it; it is based on an evaluation of one sample of the above-mentioned product and does not imply assessment of the production of the product; the CE marking may only be used if all the relevant and effective European Directives are applicable.
Quick Answers
What is the 300W 0 To 30V Mini Programmable DC Power Supply MP Series?
The 300W 0 To 30V Mini Programmable DC Power Supply MP Series is a DC power supply from eTOMMENS. 2 models are listed in the specification table on this page.
Which control interfaces does it support?
Optional RS232 interface, RS485 interface and USB interface;Optional 220/110 switching interface;Optional analog quantity interface (can only be used with RS232 serial port) Programmable settings to support MODBUScommunication protocol
