Series Overview
MF series is a 300W small chassis DC regulated power supply with coded-switch digital control and an LCD showing voltage, current and power.
Product Highlights
- Voltage0~30V
- Current0~5A / 0~10A
- Power150W / 300W
- Form FactorBenchtop / Mini
- InterfaceUSB · RS232 · CAN · External Analog
300W 0 To 30V Mini DC Power Supply MF Series
Series / category: Benchtop DC Power Supply
Product Overview

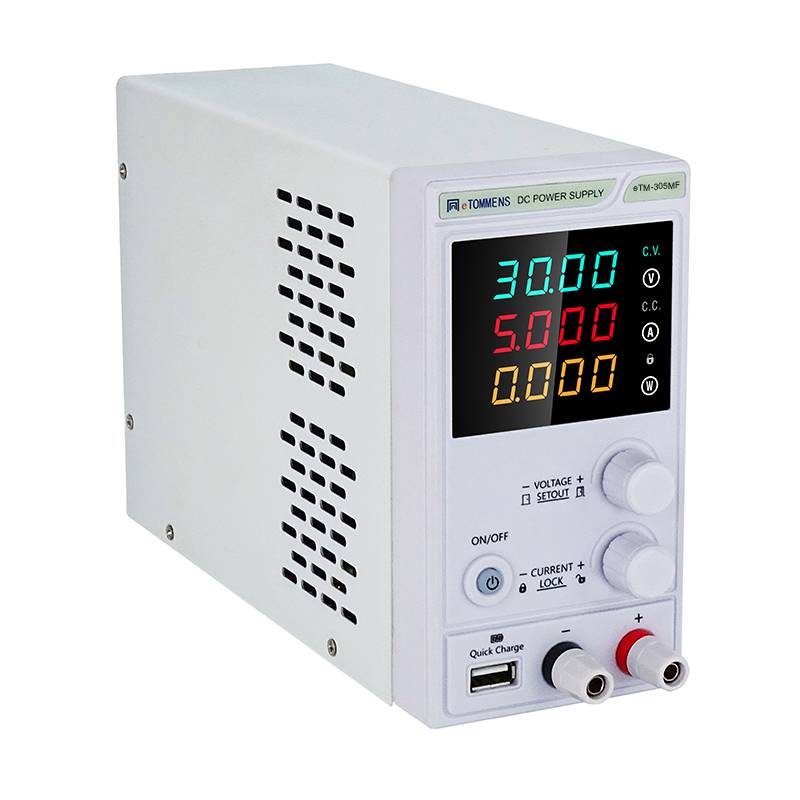

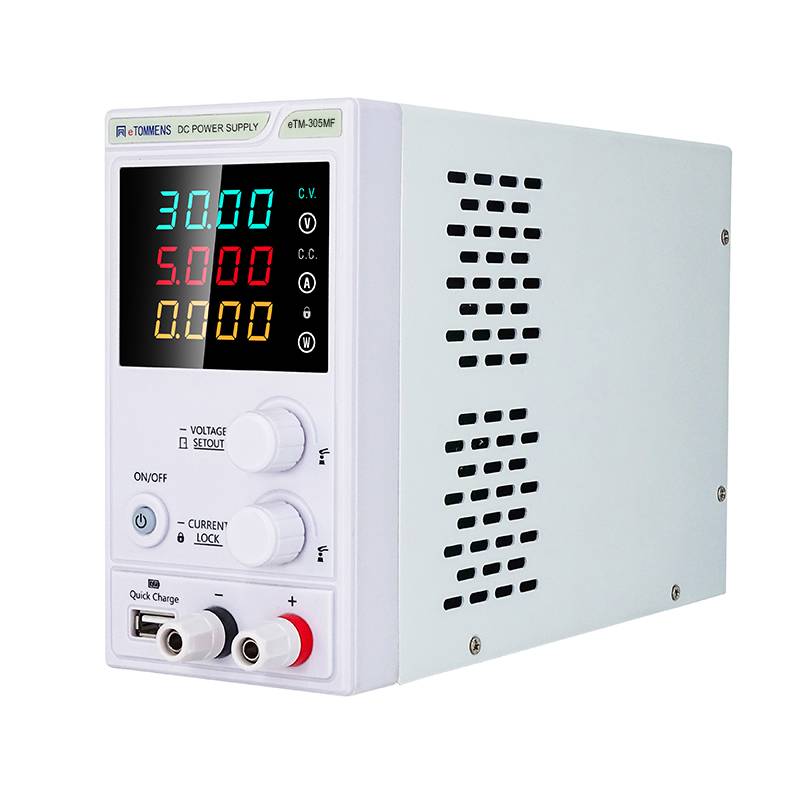

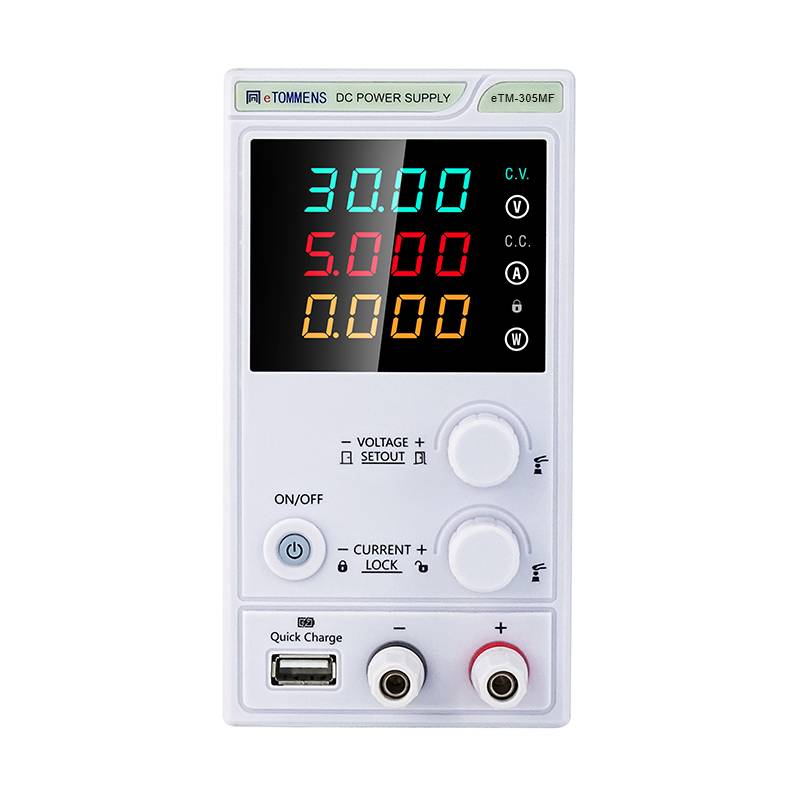

MF series is a 300W small chassis DC regulated power supply with coded-switch digital control and an LCD showing voltage, current and power. Eight models span 15V to 150V and 30W to 300W, with optional RS485/RS232/USB communication and 110V/220V input switching.
Key Features
- Output voltage and current can be preset
- Coded switch can control output
- With short circuit, overvoltage, overcurrent, reverse polarity protection function, high stability, strong reliability
- One key control output on/off, convenient and safe.
- Widely used in aging product maintenance, battery charging, experimental testing, production testing, electrolytic plating and other industries.
Available for Global Distribution & OEM
Brand: eTOMMENS
Manufacturer: eTOMMENS
OEM / Private Label: Available
Technical Support: Available
Click a thumbnail to view a larger image.
Model
2 models in this series. Full electrical data is in the specification table below.
- eTM-305MF
- eTM-3010MF
Specifications
Swipe horizontally to view the full table.
| Model | Voltage | Current | Power |
|---|---|---|---|
| eTM-305MF | 0~30V | 0~5A | 150W |
| eTM-3010MF | 0~30V | 0~10A | 300W |
Applications
- Circuit board detection
- Mobile phone detection
Communication Interface

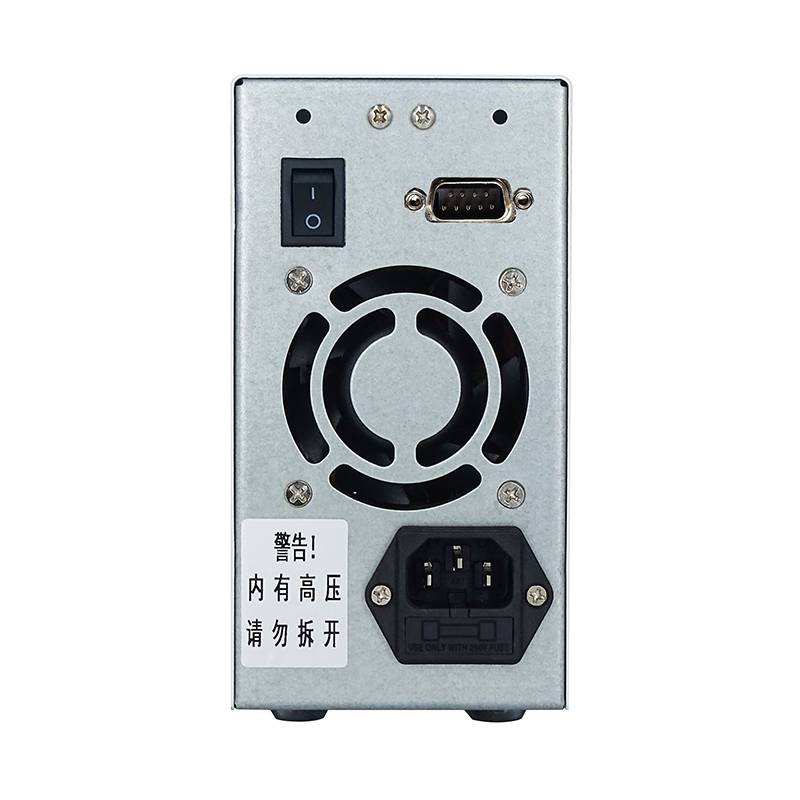

- Optional RS232 interface, RS485 interface and USB interface;Optional 220/110 switching interface;Optional analog quantity interface (can only be used with RS232 serial port)
Protection Functions
- With short circuit, overvoltage, overcurrent, reverse polarity protection function, high stability, strong reliability
Datasheet
Every file below is an original document we hold. Files are listed here only where the document itself names this series or model.
- Product Catalog 300W Small Chassis Power Supply Catalog 26.6.25.V1 (PDF) Download · 17.7 MB
- User Manual Mini regular power supply muanal.pdf Download · 5.4 MB
OEM & Private Label
OEM and private-label service is available for this series. Brand: eTOMMENS. Manufacturer: eTOMMENS. Technical support: available. Contact sales to discuss your OEM requirements.
Quick Answers
What is the 300W 0 To 30V Mini DC Power Supply MF Series?
The 300W 0 To 30V Mini DC Power Supply MF Series is a DC power supply from eTOMMENS. 2 models are listed in the specification table on this page.
Which control interfaces does it support?
Optional RS232 interface, RS485 interface and USB interface;Optional 220/110 switching interface;Optional analog quantity interface (can only be used with RS232 serial port)
