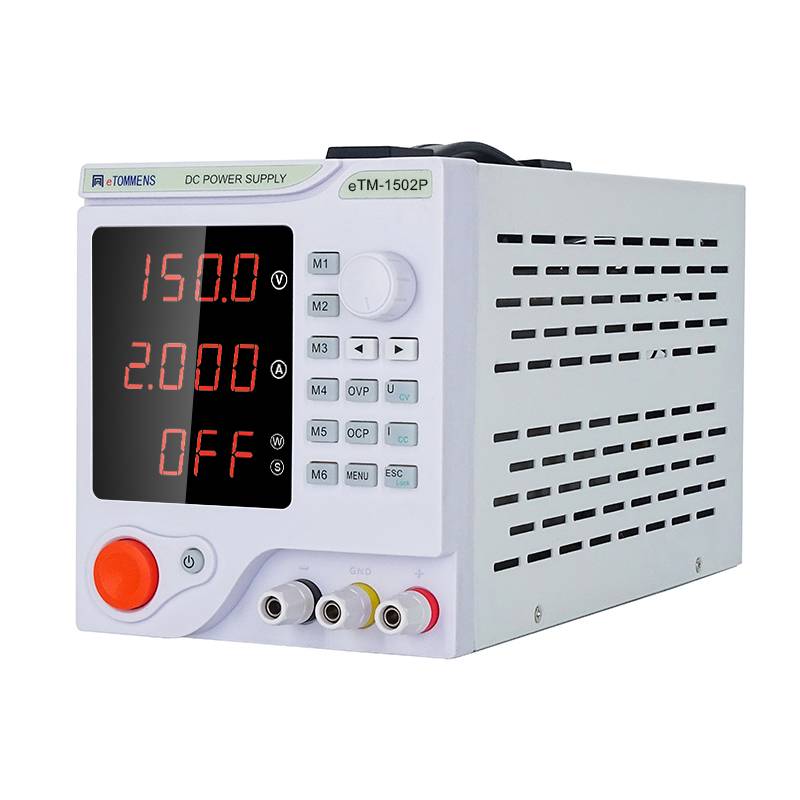

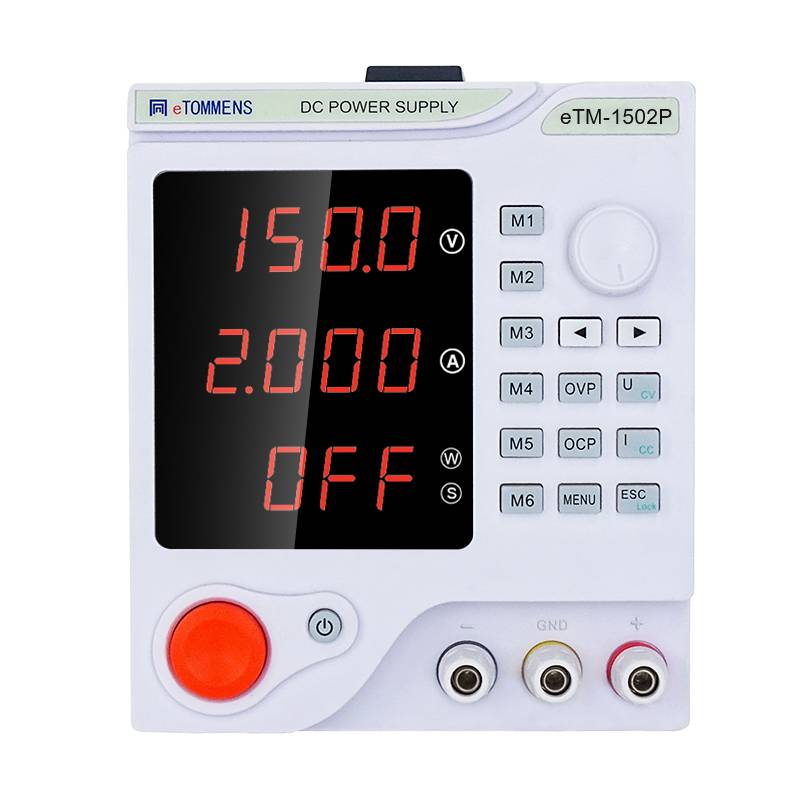

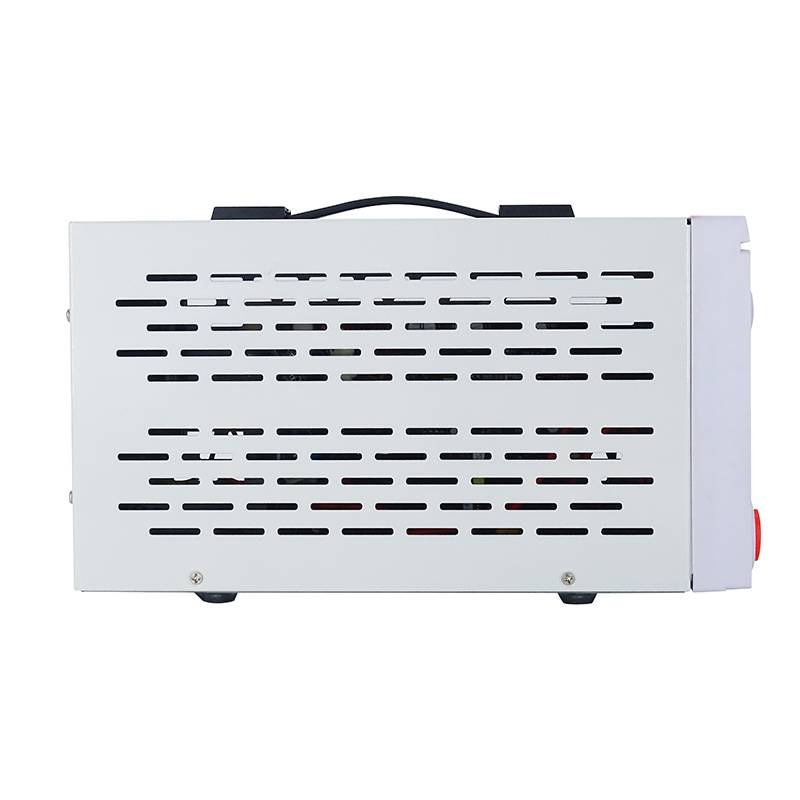

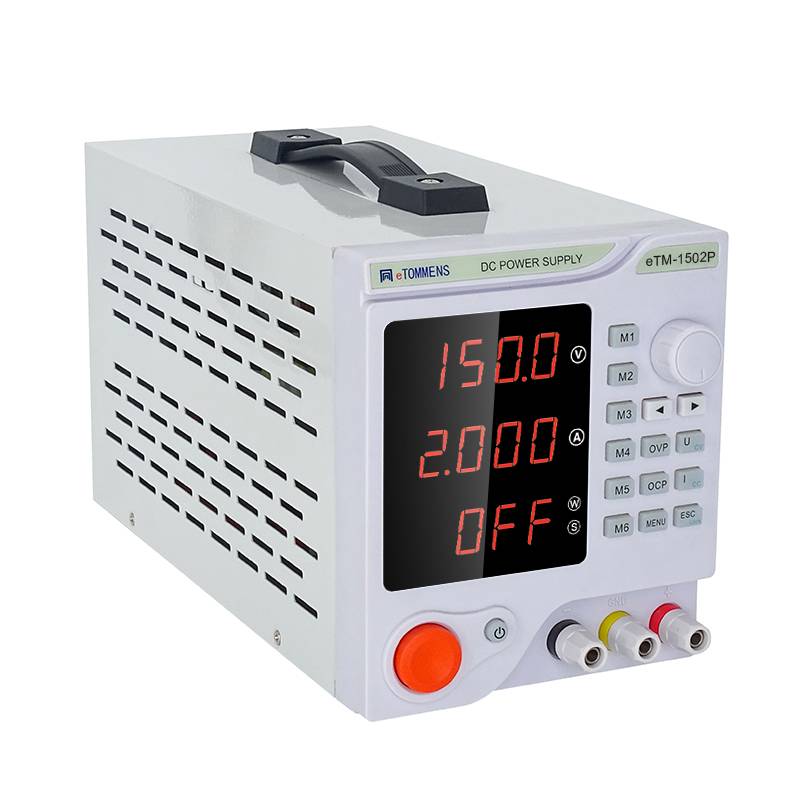

Product Images
Series Overview
P series (300W small chassis) is a programmable DC power supply with list sequence testing technology, six shortcut parameter storage groups and five protection functions.
Product Highlights
- Voltage0~60V / 0~100V / 0~150V
- Current0~5A / 0~3A / 0~2A
- Power300W
- Form FactorBenchtop / Mini
- InterfaceUSB · RS232 · RS485 · CAN · External Analog
300W 0 to 150V Programmable DC Power Supply P Series
Series / category: Benchtop DC Power Supply
Product Overview
P series (300W small chassis) is a programmable DC power supply with list sequence testing technology, six shortcut parameter storage groups and five protection functions. Eight models cover 15V to 150V and 30W to 300W, with rear communication capability.
Key Features
- List sequence testing technology
- 6 groups of shortcut parameter storage
- Support five powerful protection functions
- Rear communication function
Available for Global Distribution & OEM
Brand: eTOMMENS
Manufacturer: eTOMMENS
OEM / Private Label: Available
Technical Support: Available
Click a thumbnail to view a larger image.
Model
3 models in this series. Full electrical data is in the specification table below.
- eTM-605P
- eTM-1003P
- eTM-1502P
Specifications
Swipe horizontally to view the full table.
| Model | Voltage | Current | Power |
|---|---|---|---|
| eTM-605P | 0~60V | 0~5A | 300W |
| eTM-1003P | 0~100V | 0~3A | 300W |
| eTM-1502P | 0~150V | 0~2A | 300W |
Applications
- Circuit board detection
- Mobile phone detection
Communication Interface
- Optional RS232 interface、RS485 interface and USB interface;Optional 220/110 switching interface;Optional analog quantity interface (can only be used with RS232 serial port)

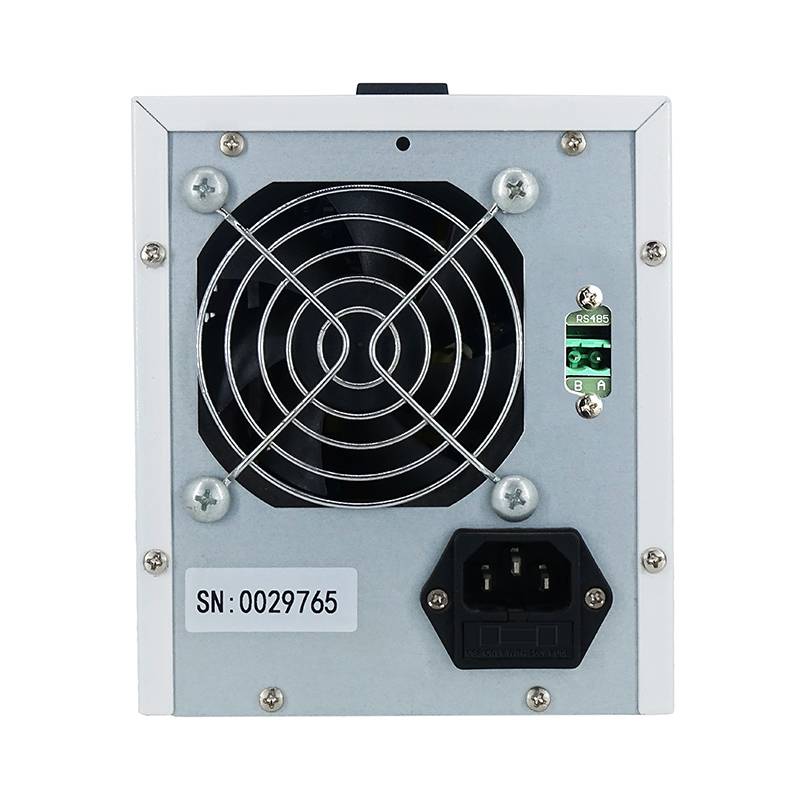

- Rear communication function
Protection Functions
- Support five powerful protection functions
Datasheet
Every file below is an original document we hold. Files are listed here only where the document itself names this series or model.
- Communication Protocol P Series / C Series Communication Protocol (DOC) Request Document
- Modbus Example P Series Modbus Example (TXT) Request Document
- Product Catalog 6000W Benchtop Cabinet Power Supply Catalog 26.6.25.V1 (PDF) Download · 11.2 MB
- SCPI Command Table SCPI Command Table (TXT) Request Document
- User Manual High power programmable P series.pdf Download · 11.1 MB
OEM & Private Label
OEM and private-label service is available for this series. Brand: eTOMMENS. Manufacturer: eTOMMENS. Technical support: available. Contact sales to discuss your OEM requirements.
Quick Answers
What is the 300W 0 to 150V Programmable DC Power Supply P Series?
The 300W 0 to 150V Programmable DC Power Supply P Series is a DC power supply from eTOMMENS. 3 models are listed in the specification table on this page.
Which control interfaces does it support?
Optional RS232 interface、RS485 interface and USB interface;Optional 220/110 switching interface;Optional analog quantity interface (can only be used with RS232 serial port) Rear communication function
