Product Images
Series Overview
R series (low voltage) is a 2U rack-mounted programmable DC power supply for high-current test benches.
Product Highlights
- Voltage30V / 60V / 120V
- Current100A / 200A / 50A
- Power3000W / 6000W / 2000W / 4500W
- Form FactorRack-mountable

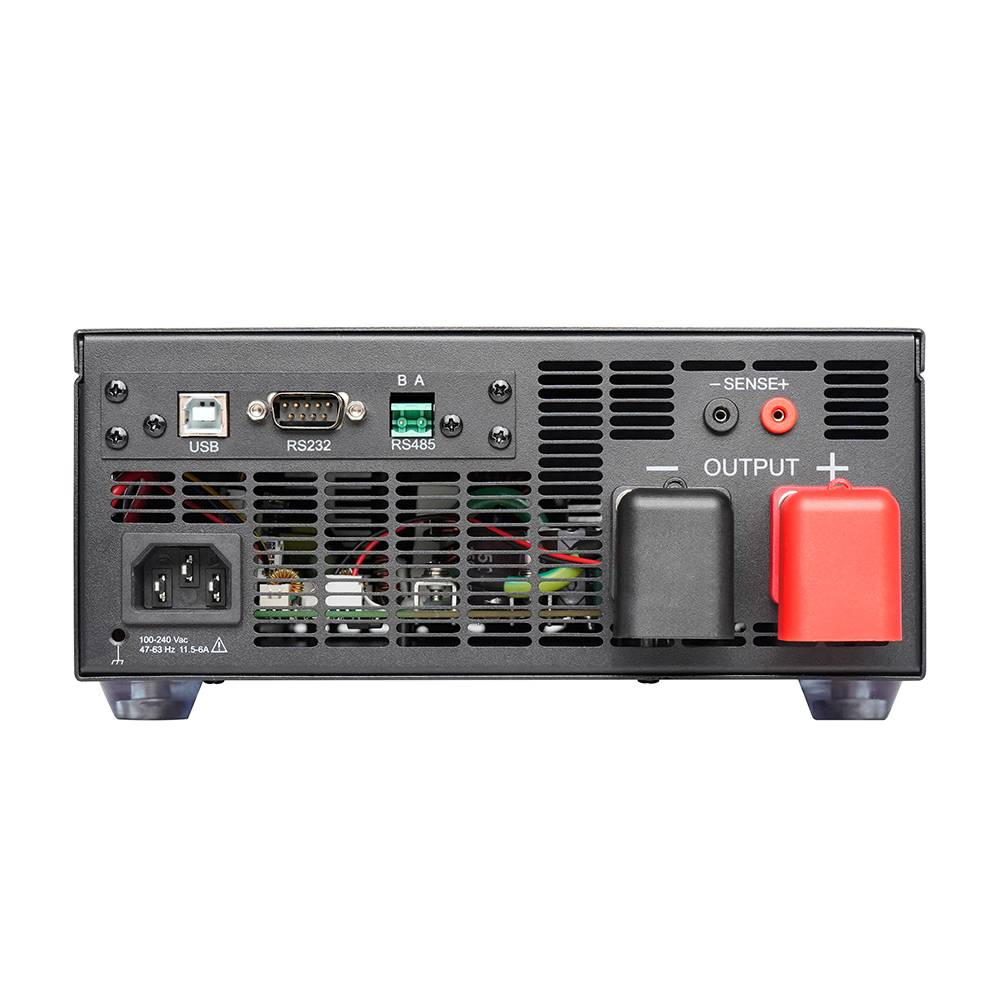

- InterfaceLAN · USB · RS232 · RS485

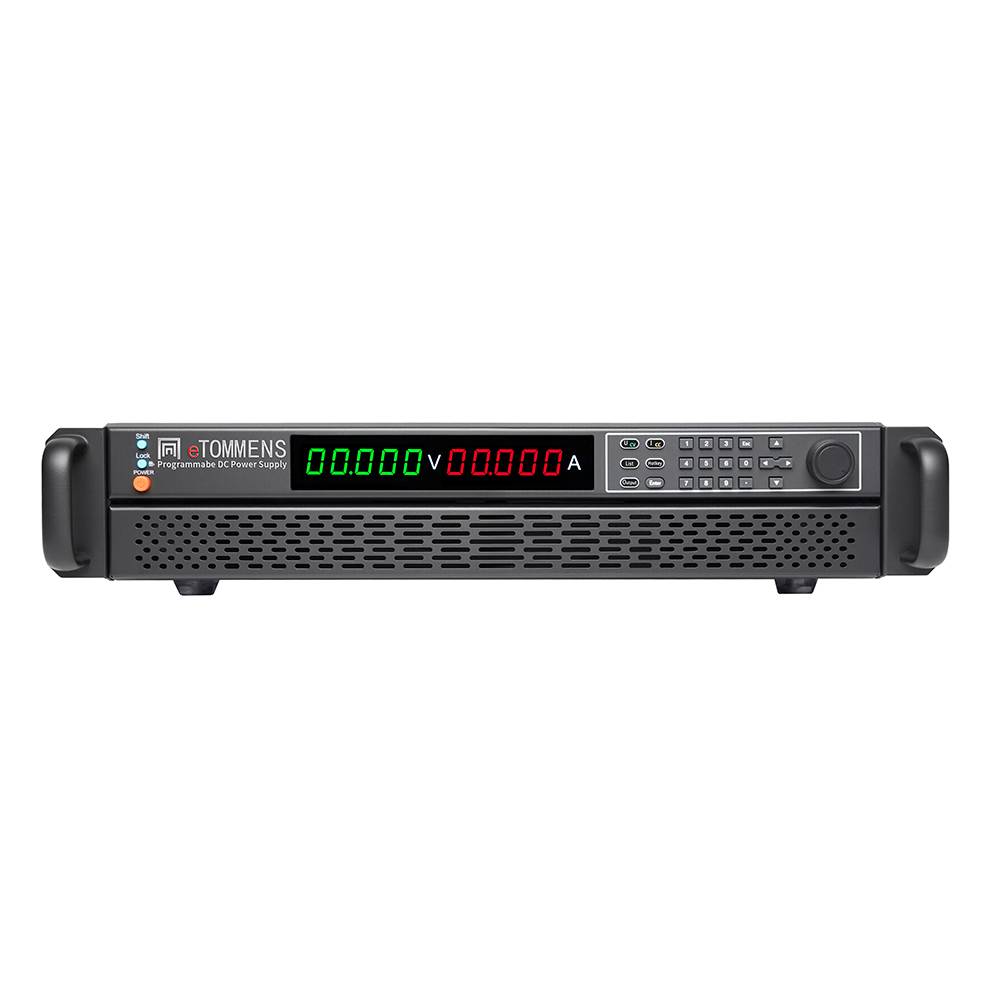

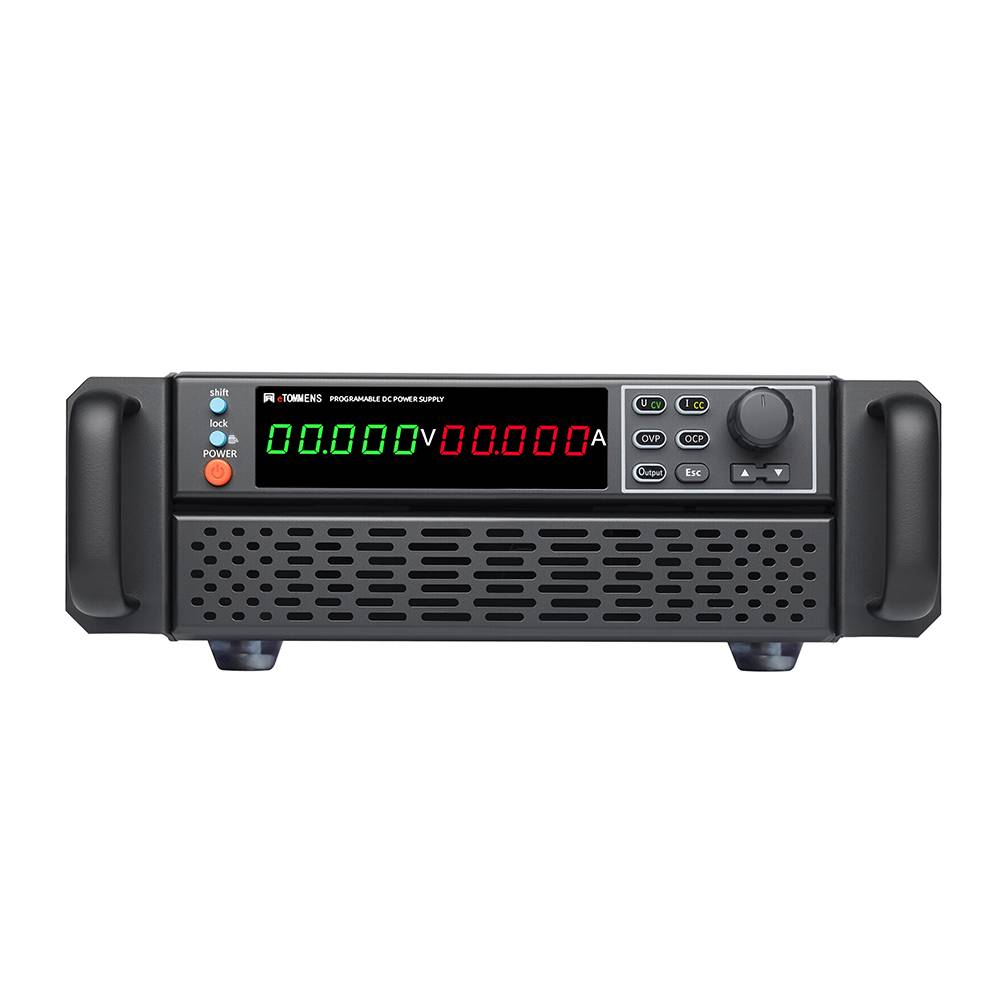

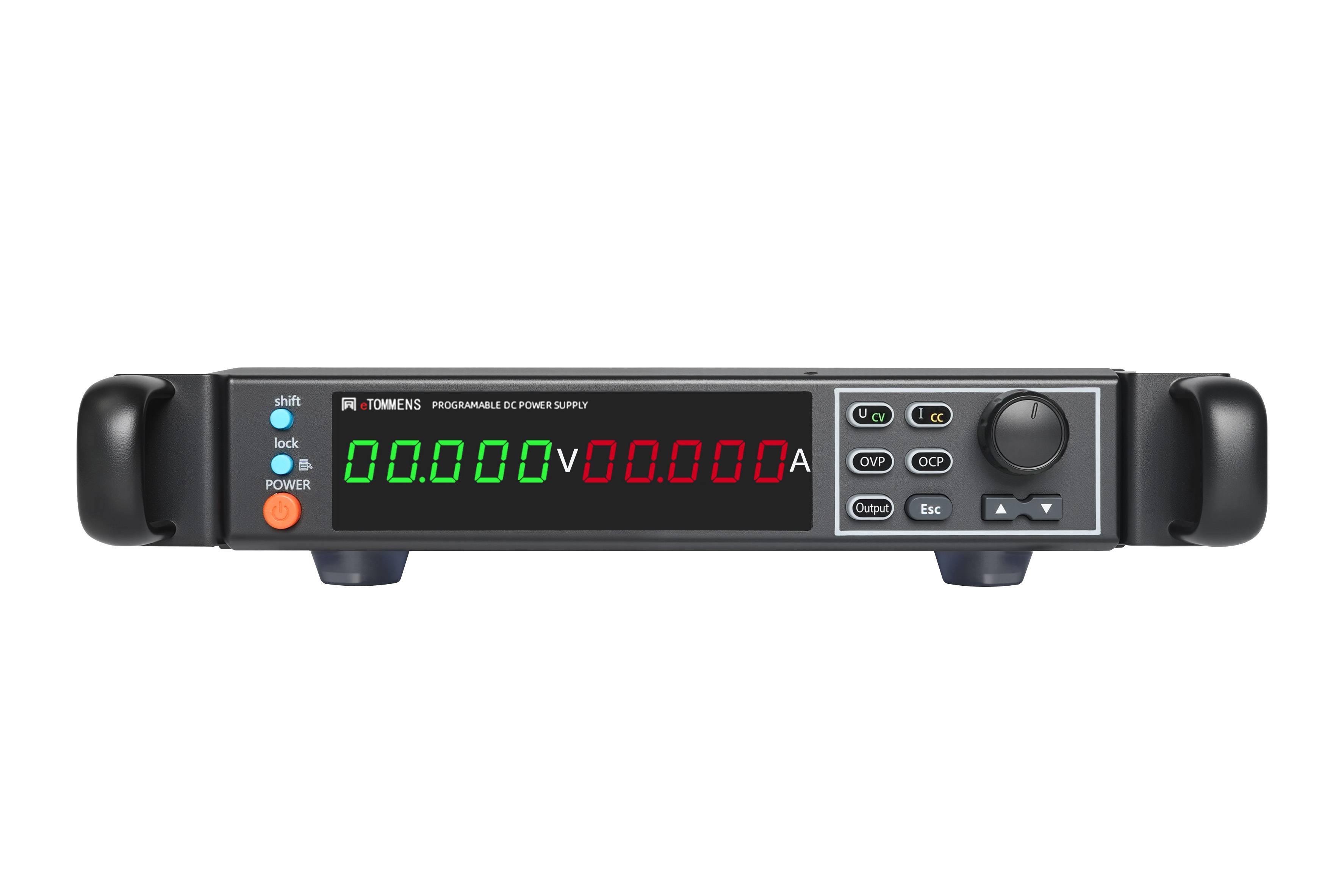

R series rack mounted digital tube programmable DC power supply
Series / category: Rack-Mount DC Power Supply
Product Overview
R series (low voltage) is a 2U rack-mounted programmable DC power supply for high-current test benches. Five models span 30V/100A up to 120V/50A and 2000W to 6000W, with a five-digit LED display, CV/CC mode switching, standard USB, RS232 and RS485 interfaces supporting Modbus RTU and SCPI, and a 560(D) x 430(W) x 88(H) mm chassis.
Key Features
- High precision and high resolution
- CV/CC constant voltage and constant current switching
- Supports MODBUS and SPCI communication protocols, with standard RS232, USB, RS485 communication serial ports

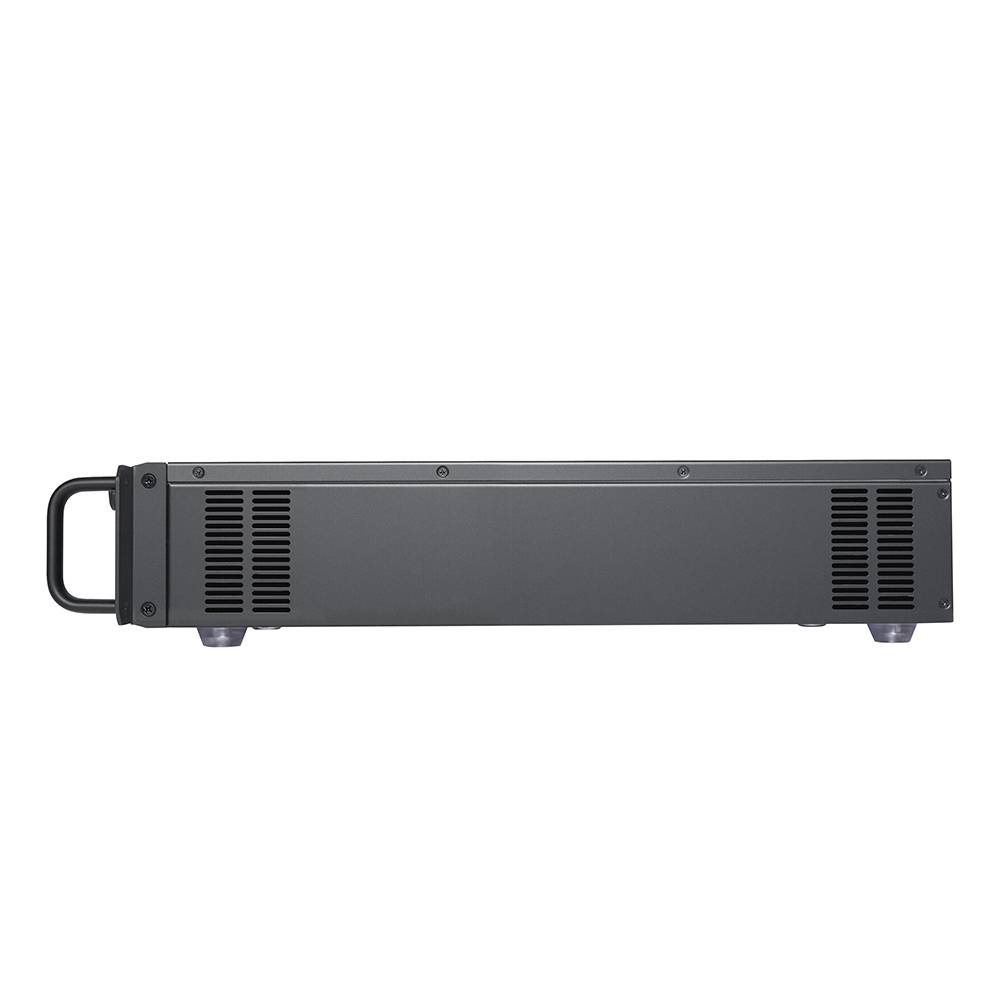

- Standard 2U half width rack mounted size
- Multiple protection functions including overvoltage, overcurrent, overpower, overtemperature, and short circuit
- Five digit digital display
Available for Global Distribution & OEM
Brand: eTOMMENS
Manufacturer: eTOMMENS
OEM / Private Label: Available
Technical Support: Available
Click a thumbnail to view a larger image.
Specifications
Swipe horizontally to view the full table.
| Model | Voltage | Current | Power |
|---|---|---|---|
| eTM-RM2UFD-3K-30-100 | 30V | 100A | 3000W |
| eTM-RM2UFD-6K-30-200 | 30V | 200A | 6000W |
| eTM-RM2UFD-3K-60-50 | 60V | 50A | 2000W |
| eTM-RM2UFD-6K-60-100 | 60V | 100A | 3000W |
| eTM-RM2UFD-6K-120-50 | 120V | 50A | 4500W |
Communication Interface
- Supports MODBUS and SPCI communication protocols, with standard RS232, USB, RS485 communication serial ports
Protection Functions
- Multiple protection functions including overvoltage, overcurrent, overpower, overtemperature, and short circuit
Quick Answers
What is the R series rack mounted digital tube programmable DC power supply?
The R series rack mounted digital tube programmable DC power supply is a DC power supply from eTOMMENS. Model details are available on request.
Which control interfaces does it support?
Supports MODBUS and SPCI communication protocols, with standard RS232, USB, RS485 communication serial ports
How do I get a quotation for this model?
Send your requirements to wendy@etommensglobal.com and our engineers will recommend a suitable model and quote.
OEM & Private Label
OEM and private-label service is available for this series. Brand: eTOMMENS. Manufacturer: eTOMMENS. Technical support: available. Contact sales to discuss your OEM requirements.
