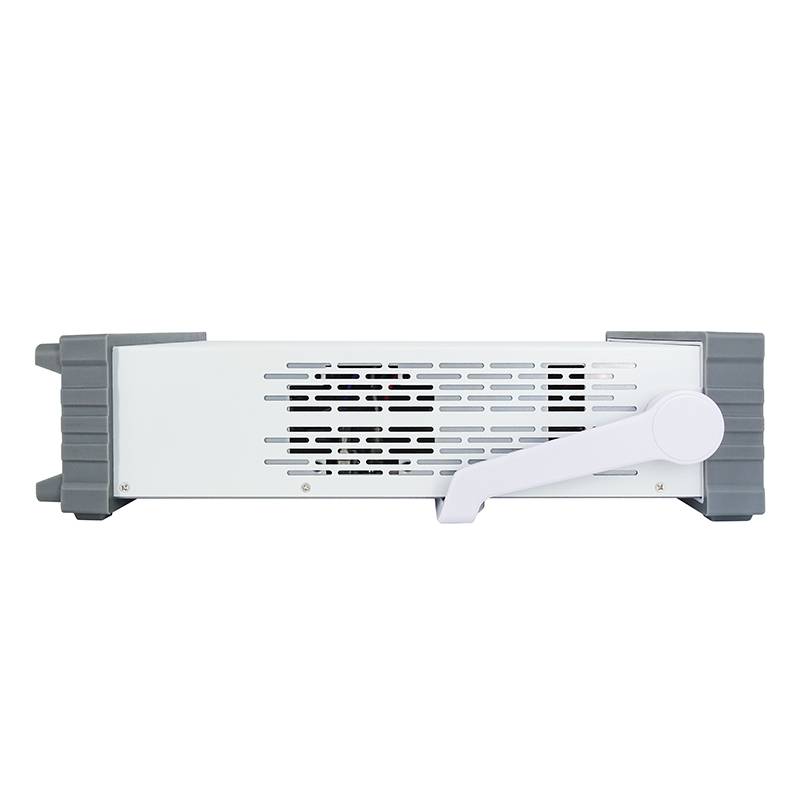

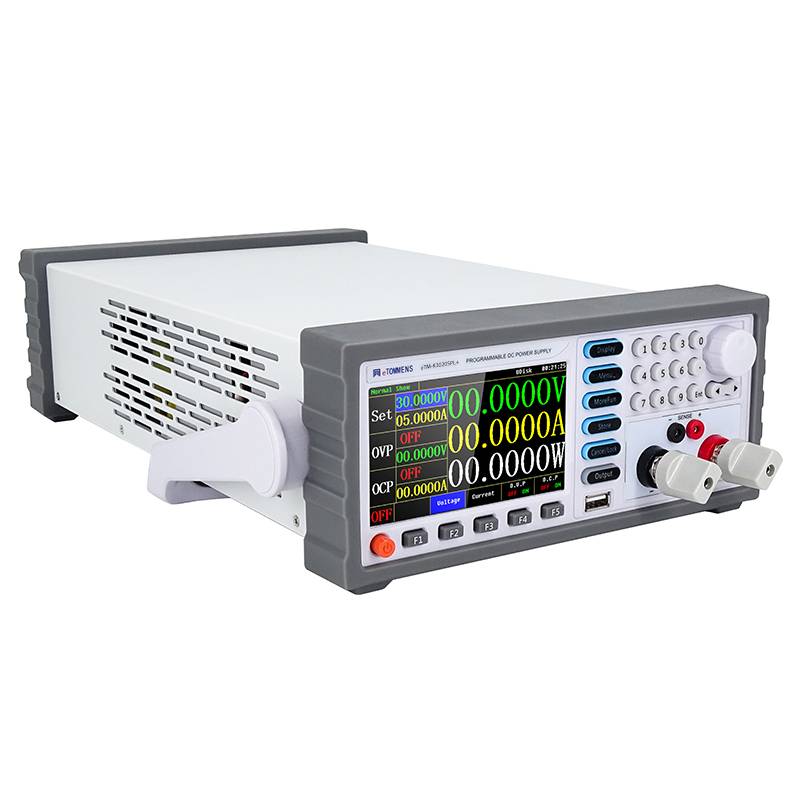

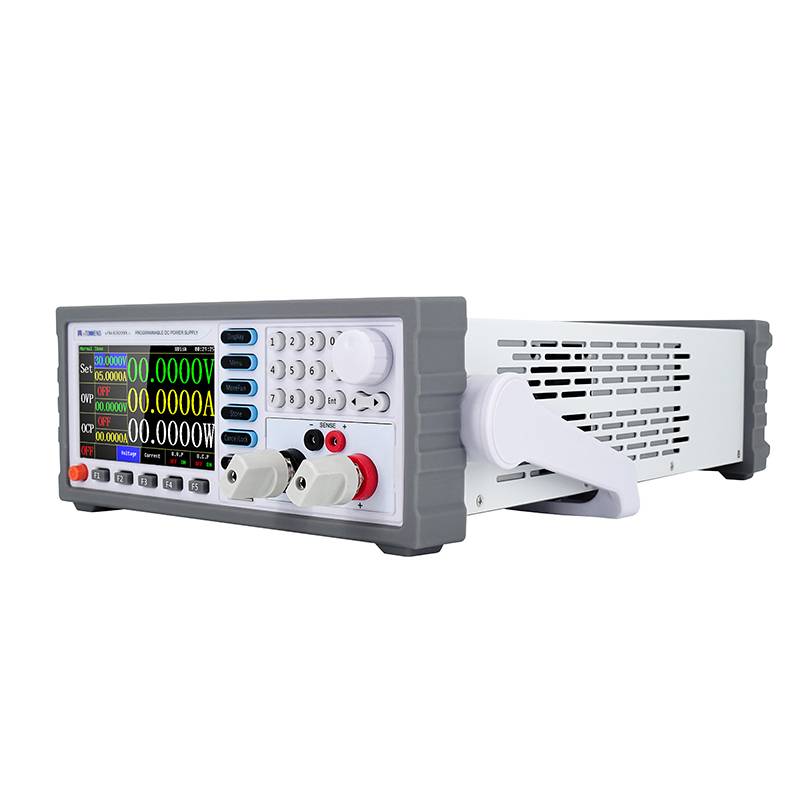

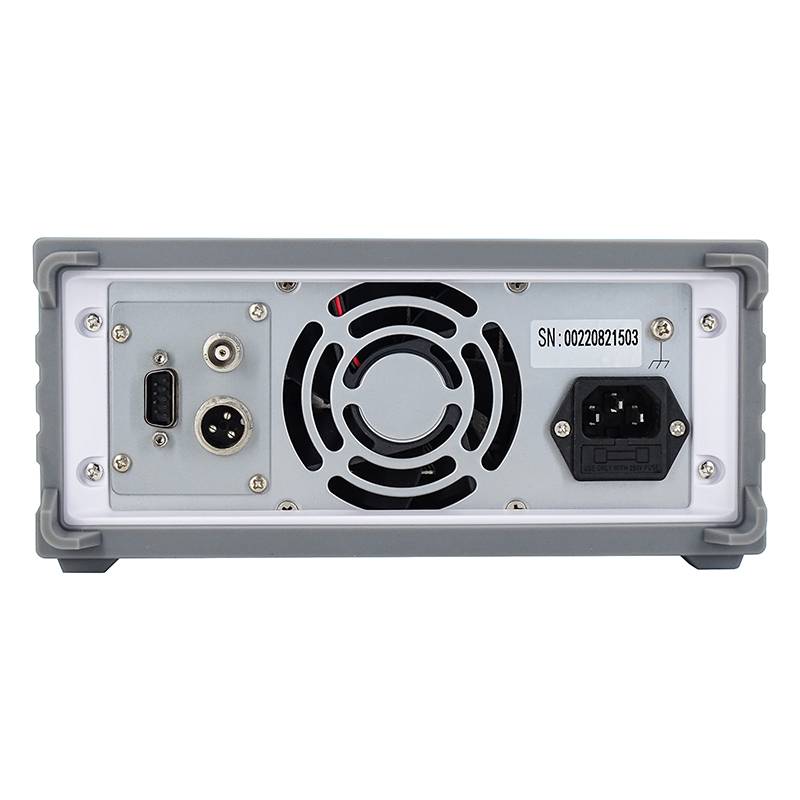

Product Images
Series Overview
5-digit/6-digit display, high resolution and high precision.
Product Highlights
- Voltage0~15V
- Current0~60A
- Power900W
- InterfaceLAN · USB · RS232 · CAN · External Analog

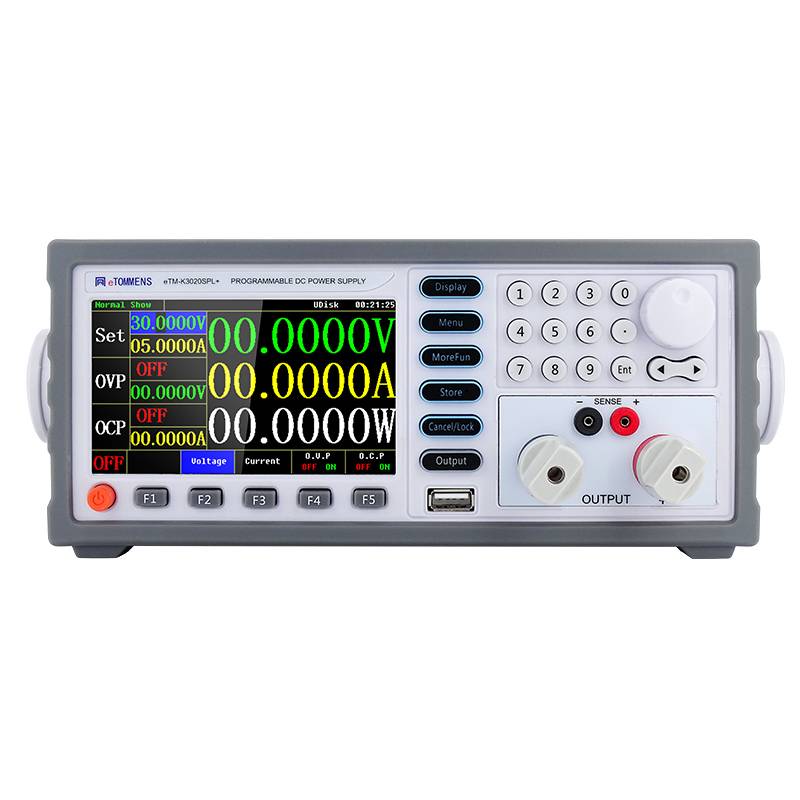

6-digit Color screen high precision programmable switching power supply KSPL+ series (0~15V)
Series / category: Programmable DC Power Supply
Product Overview
5-digit/6-digit display, high resolution and high precision.
Key Features
- Window List sequence test technology, can store/recall 100 sets of voltage and current data
- Multiple power-up modes are available
- Front + rear dual serial port mode, convenient for developers and integrated devices
- Compatible with standard Modbus and SCPI protocols
Available for Global Distribution & OEM
Brand: eTOMMENS
Manufacturer: eTOMMENS
OEM / Private Label: Available
Technical Support: Available
Click a thumbnail to view a larger image.
Model
1 model in this series. Full electrical data is in the specification table below.
- eTM-K1560SPL+
Specifications
Swipe horizontally to view the full table.
| Model | Voltage | Current | Resolution | Precision | Interface |
|---|---|---|---|---|---|
| eTM-K1560SPL+ | 0~15V | 0~60A | 0.1mV;0.1mA | ±(0.02% of reading±5mV)(25±5°C);± (0.05% of reading±0.1% of FS)(25±5°C) | Standard configuration of RS232 interface、SENSE interface、trigger interface and aviation interface；Optional RS485 interface, USB interface and LAN interface;Optional analog quantity interface (can only be used with RS232 serial port) |
Applications
- Automated testing
- Project research and development
- Production testing
- Battery charging
- Aging test
- Electrolytic plating
Communication Interface
- Standard configuration of RS232 interface、SENSE interface、trigger interface and aviation interface；Optional RS485 interface, USB interface and LAN interface;Optional analog quantity interface (can only be used with RS232 serial port)
- Front + rear dual serial port mode, convenient for developers and integrated devices
- Compatible with standard Modbus and SCPI protocols
Datasheet
Every file below is an original document we hold. Files are listed here only where the document itself names this series or model.
- Product Catalog High Precision Rack Power Supply Catalog 26.6.24.V1 (PDF) Download · 17.6 MB
- SCPI Command Table SCPI Command Table (TXT) Request Document
- User Manual K_SPL Series Power Supply (Switching Power Supply with Color Display) User Manual V5.pdf Download · 6 MB
OEM & Private Label
OEM and private-label service is available for this series. Brand: eTOMMENS. Manufacturer: eTOMMENS. Technical support: available. Contact sales to discuss your OEM requirements.
Quick Answers
What is the 6-digit Color screen high precision programmable switching power supply KSPL+ series (0~15V)?
The 6-digit Color screen high precision programmable switching power supply KSPL+ series (0~15V) is a DC power supply from eTOMMENS. 1 model is listed in the specification table on this page.
Which control interfaces does it support?
Standard configuration of RS232 interface、SENSE interface、trigger interface and aviation interface；Optional RS485 interface, USB interface and LAN interface;Optional analog quantity interface (can only be used with RS232 serial port) Front + rear dual serial port mode, convenient for developers and integrated devices
How do I get a quotation for this model?
Send your requirements to wendy@etommensglobal.com and our engineers will recommend a suitable model and quote.
