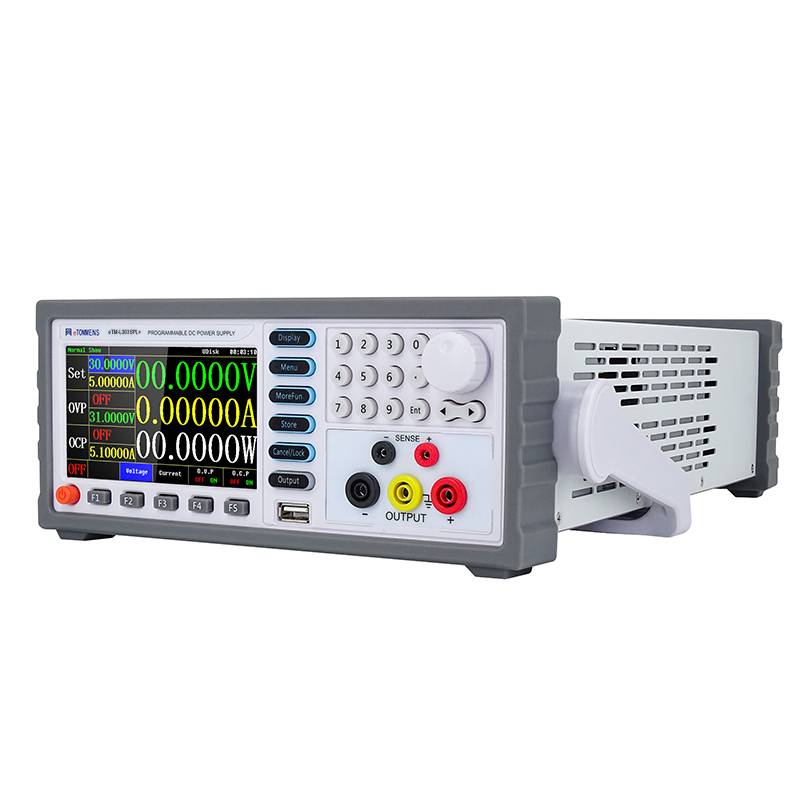

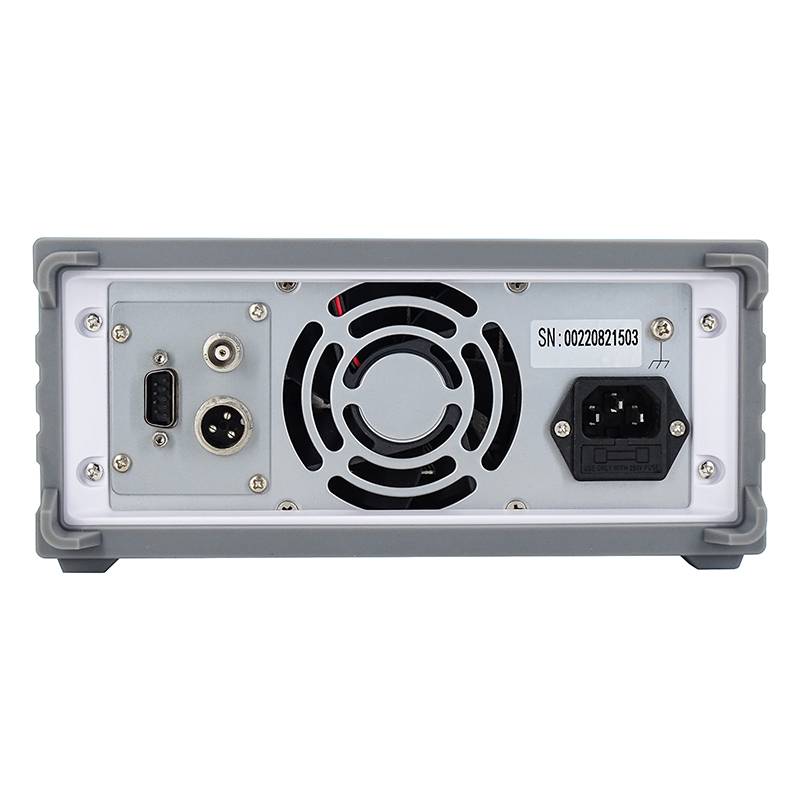

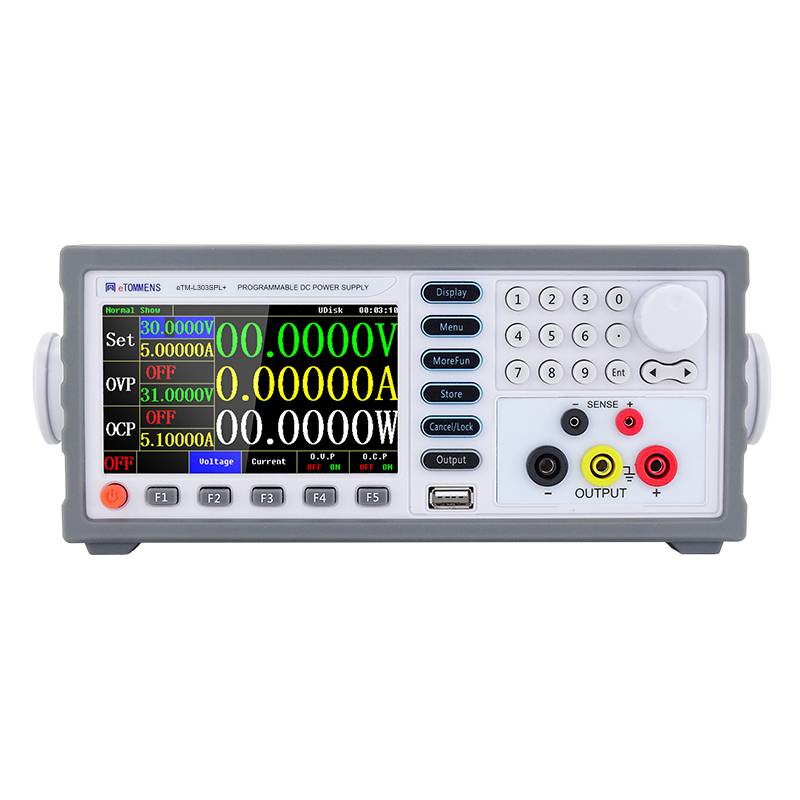

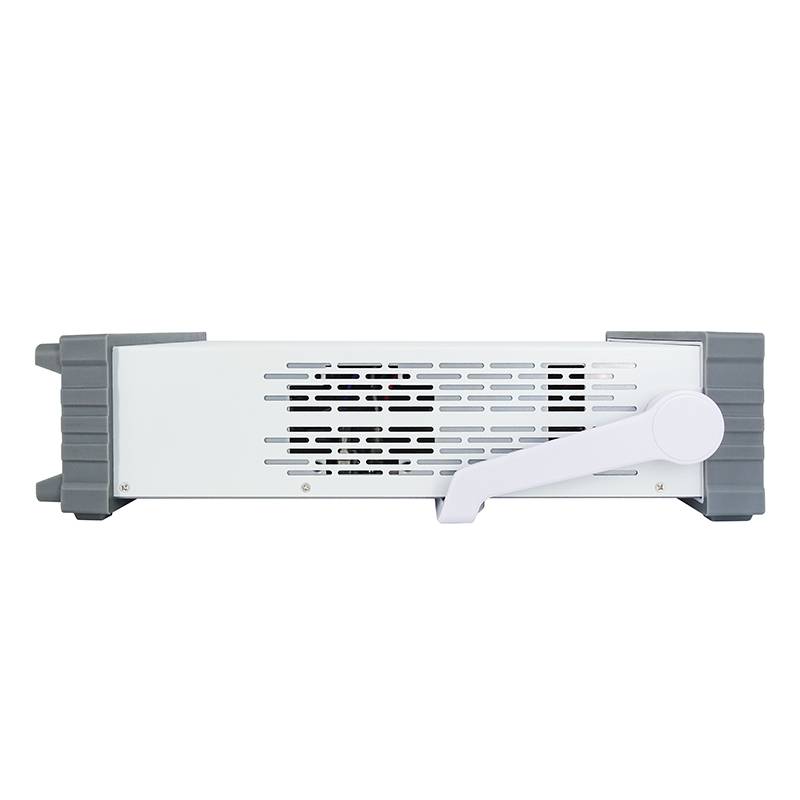

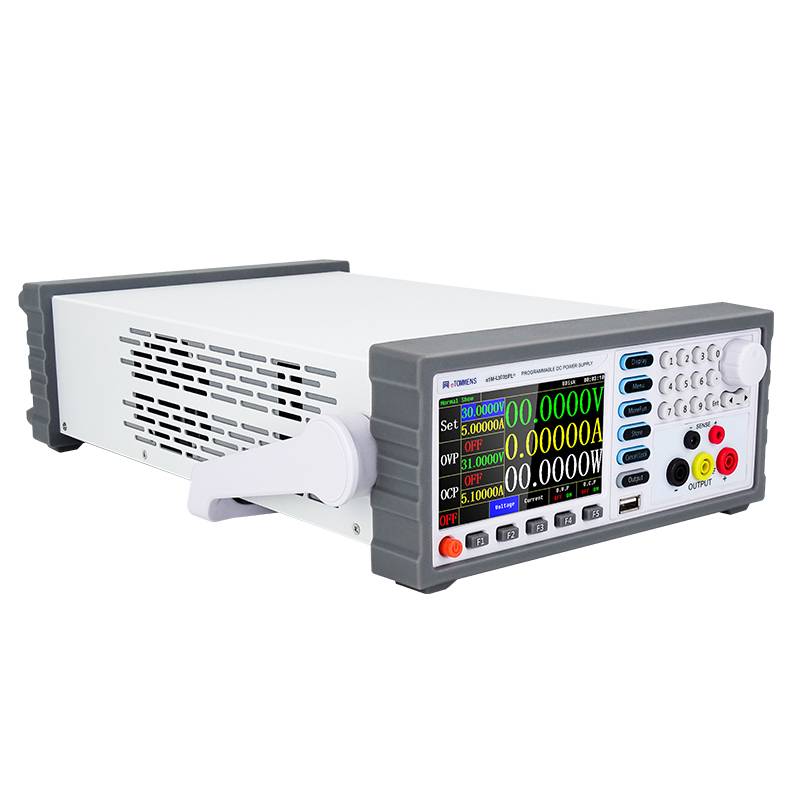

Product Images
Series Overview
5-digit/6-digit display, high resolution and high precision.
Product Highlights
- Voltage0~30V
- Current0~3A / 0~5A / 0~10A / 0~0.1A / 0~0.5A
- Power90W / 150W / 300W / 3W / 15W
- InterfaceLAN · USB · RS232 · RS485 · CAN · External Analog
6-Digit 0 to 30V Color Screen High Precision Programmable Linear DC Power Supply LSPD
Series / category: Programmable DC Power Supply
Product Overview
5-digit/6-digit display, high resolution and high precision.
Key Features
- To Offer Customized Service
- Professional after-sale services
- Encoding switch digital control output size, convenient and durable.
- Equipped with short-circuit, overvoltage, overcurrent, overvoltage, and reverse polarity protection functions.
Available for Global Distribution & OEM
Brand: eTOMMENS
Manufacturer: eTOMMENS
OEM / Private Label: Available
Technical Support: Available
Click a thumbnail to view a larger image.
Model
5 models in this series. Full electrical data is in the specification table below.
- eTM-L303SPL+
- eTM-L305SPL+
- eTM-L3010SPL+
- eTM-L30D1SPL+
- eTM-L30D5SPL+
Specifications
Swipe horizontally to view the full table.
| Model | Voltage | Current | Power |
|---|---|---|---|
| eTM-L303SPL+ | 0~30V | 0~3A | 90W |
| eTM-L305SPL+ | 0~30V | 0~5A | 150W |
| eTM-L3010SPL+ | 0~30V | 0~10A | 300W |
| eTM-L30D1SPL+ | 0~30V | 0~0.1A | 3W |
| eTM-L30D5SPL+ | 0~30V | 0~0.5A | 15W |
Applications
- Automated testing
- Project research and development
- Production testing
- Battery charging
- Aging test
- Electrolytic plating
Communication Interface
- Standard configuration of RS232 interface、trigger interface、SENSE interface and aviation interface；Optional RS485 interface、USB interface、LAN interface.Optional 220/110 switching interface;Optional analog quantity interface (can only be used with RS232 serial port)
Protection Functions
- Equipped with short-circuit, overvoltage, overcurrent, overvoltage, and reverse polarity protection functions.
Quick Answers
What is the 6-Digit 0 to 30V Color Screen High Precision Programmable Linear DC Power Supply LSPD?
The 6-Digit 0 to 30V Color Screen High Precision Programmable Linear DC Power Supply LSPD is a DC power supply from eTOMMENS. 5 models are listed in the specification table on this page.
Which control interfaces does it support?
Standard configuration of RS232 interface、trigger interface、SENSE interface and aviation interface；Optional RS485 interface、USB interface、LAN interface.Optional 220/110 switching interface;Optional analog quantity interface (can only be used with RS232 serial port)
How do I get a quotation for this model?
Send your requirements to wendy@etommensglobal.com and our engineers will recommend a suitable model and quote.
OEM & Private Label
OEM and private-label service is available for this series. Brand: eTOMMENS. Manufacturer: eTOMMENS. Technical support: available. Contact sales to discuss your OEM requirements.
