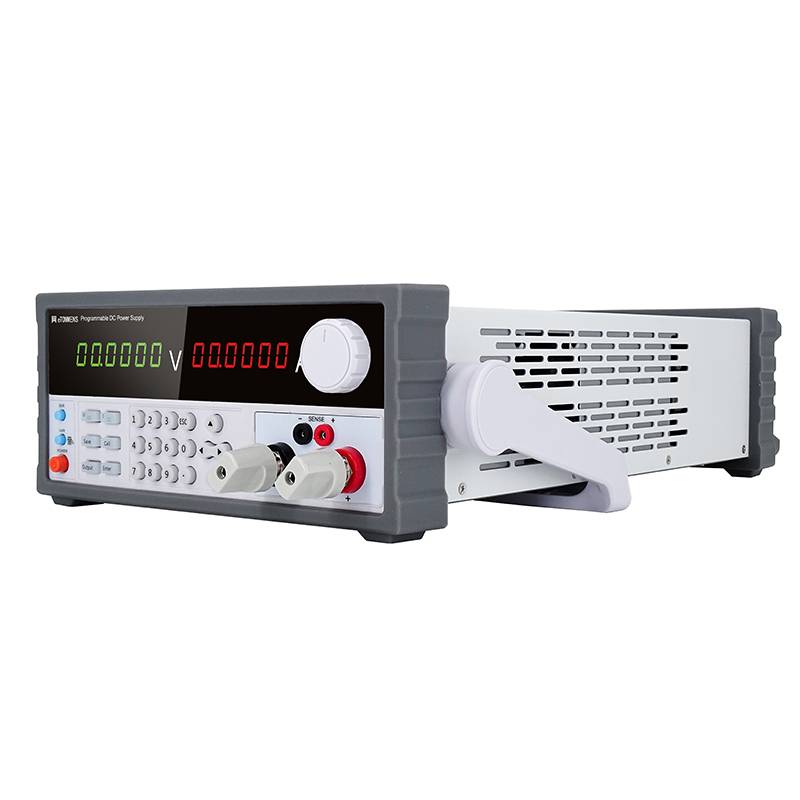

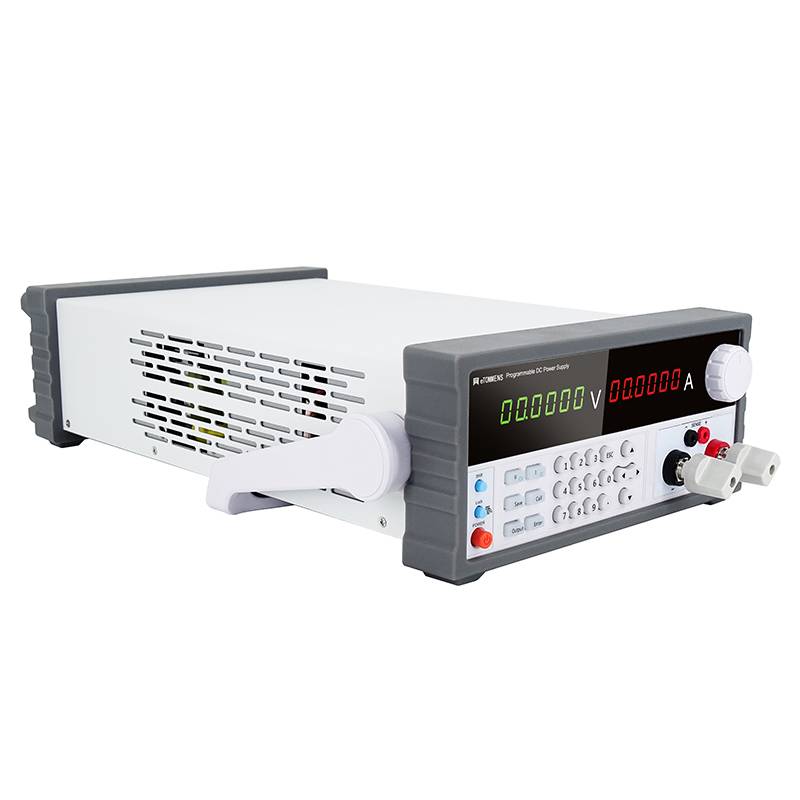

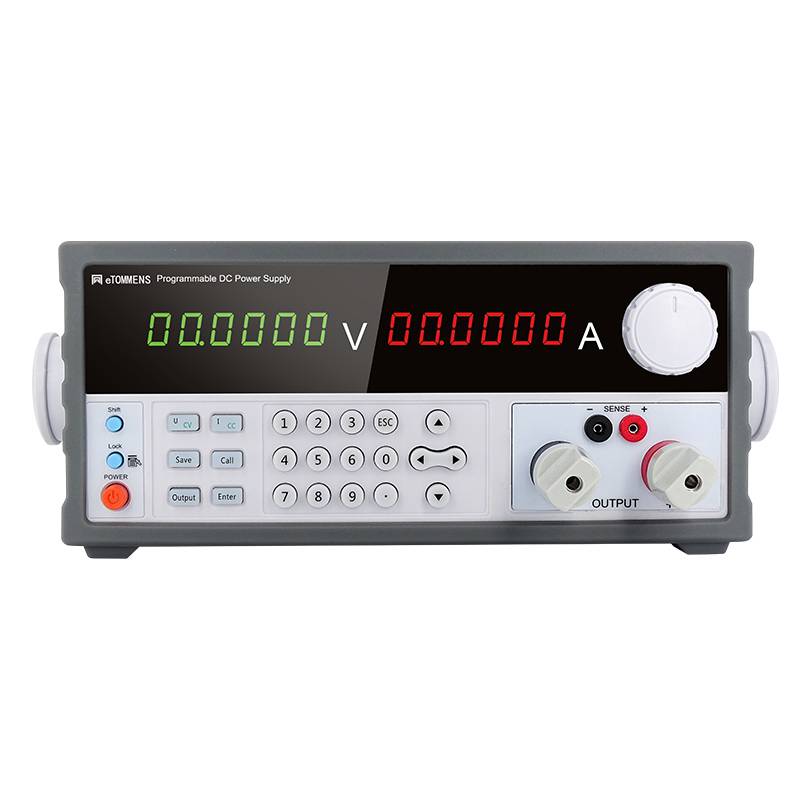

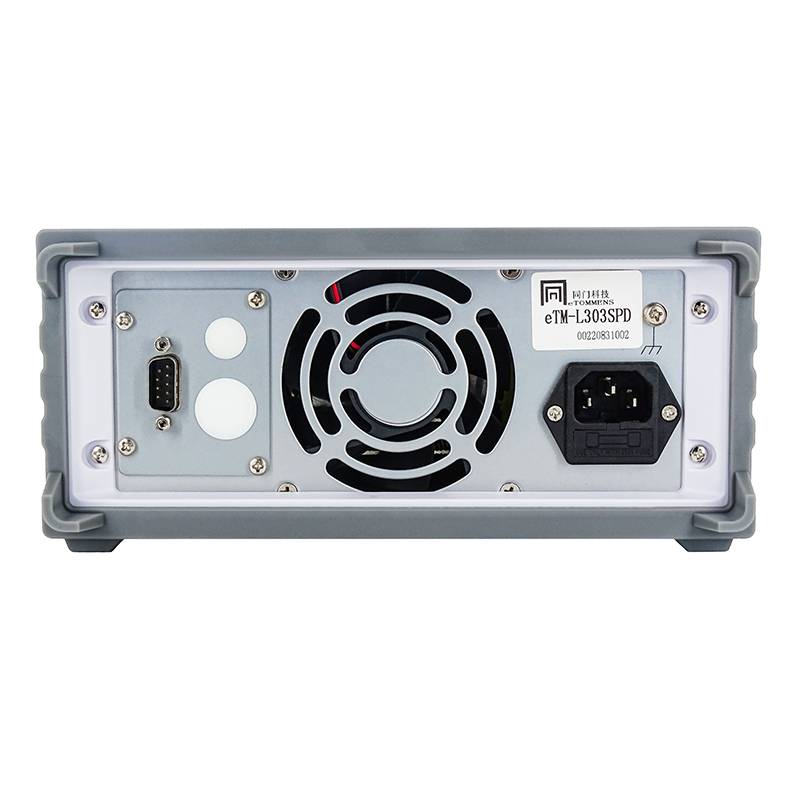

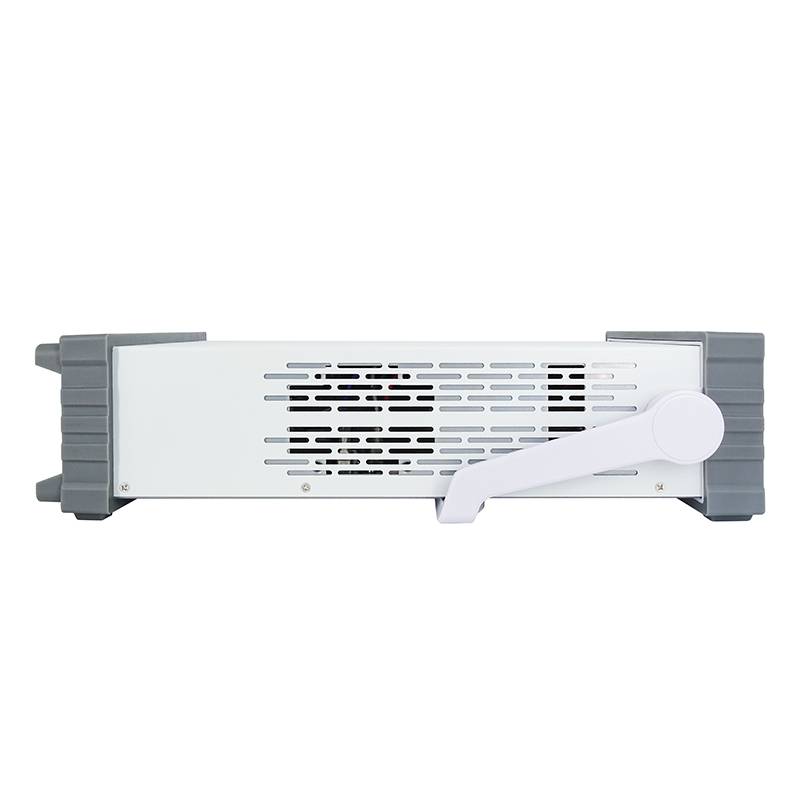

Product Images
Series Overview
KSPD / KSPD+ series is a high precision cabinet DC power supply with digital tube display, available as 5-digit and 6-digit versions.
Product Highlights
- Voltage0~15V
- Current0~60A
- Power900W
- InterfaceLAN · USB · RS232 · RS485 · CAN · External Analog
6-digit 0 To 15 V Digital Tube High Precision Programmable Switching DC Power Supply KSPD+ Series
Series / category: Programmable DC Power Supply
Product Overview
KSPD / KSPD+ series is a high precision cabinet DC power supply with digital tube display, available as 5-digit and 6-digit versions. It supports multiple power-up modes, front and rear dual serial port mode, standard Modbus and SCPI protocols, multiple trigger sources with trigger mode selection, and a VSelf voltage auto-calibration function. Twelve models cover 15V/60A to 80V/11A; the rear carries RS232 and RS485 as standard with USB optional and Ethernet possible, in a 377+/-3(D) x 215(W) x 89(H) mm, 4.5kg chassis.
Key Features
- Upper computer could directly operate the hard disk of the host
- 10 groups of shortcut parameter storage
- Front SENSE interface
- Multiple power-up modes are available
- Compatible with standard Modbus and SCPI protocols
Available for Global Distribution & OEM
Brand: eTOMMENS
Manufacturer: eTOMMENS
OEM / Private Label: Available
Technical Support: Available
Click a thumbnail to view a larger image.
Model
1 model in this series. Full electrical data is in the specification table below.
- eTM-K1560SPD+
Specifications
Swipe horizontally to view the full table.
| Model | Voltage | Current | Resolution | Precision | Interface |
|---|---|---|---|---|---|
| eTM-K1560SPD+ | 0~15V | 0~60A | 0.1mV;0.1mA | ±(0.02% of reading±5mV)(25±5°C);± (0.05% of reading±0.1% of FS)(25±5°C) | Standard configuration of RS232 interface and SENSE interface；Optional RS485 interface, USB interface LAN interface and trigger interface;Optional analog quantity interface (can only be used with RS232 serial port) |
Applications
- Automated testing
- Aging test
Communication Interface
- Standard configuration of RS232 interface and SENSE interface；Optional RS485 interface, USB interface LAN interface and trigger interface;Optional analog quantity interface (can only be used with RS232 serial port)
- Front SENSE interface
- Compatible with standard Modbus and SCPI protocols
Datasheet
Every file below is an original document we hold. Files are listed here only where the document itself names this series or model.
- Product Catalog High Precision Rack Power Supply Catalog 26.6.24.V1 (PDF) Download · 17.6 MB
- SCPI Command Table SCPI Command Table (TXT) Request Document
- User Manual K_SPD Series Power Supply (Switch Digital Display) User Manual V4.pdf Download · 7.7 MB
OEM & Private Label
OEM and private-label service is available for this series. Brand: eTOMMENS. Manufacturer: eTOMMENS. Technical support: available. Contact sales to discuss your OEM requirements.
Quick Answers
What is the 6-digit 0 To 15 V Digital Tube High Precision Programmable Switching DC Power Supply KSPD+ Series?
The 6-digit 0 To 15 V Digital Tube High Precision Programmable Switching DC Power Supply KSPD+ Series is a DC power supply from eTOMMENS. 1 model is listed in the specification table on this page.
Which control interfaces does it support?
Standard configuration of RS232 interface and SENSE interface；Optional RS485 interface, USB interface LAN interface and trigger interface;Optional analog quantity interface (can only be used with RS232 serial port) Front SENSE interface
