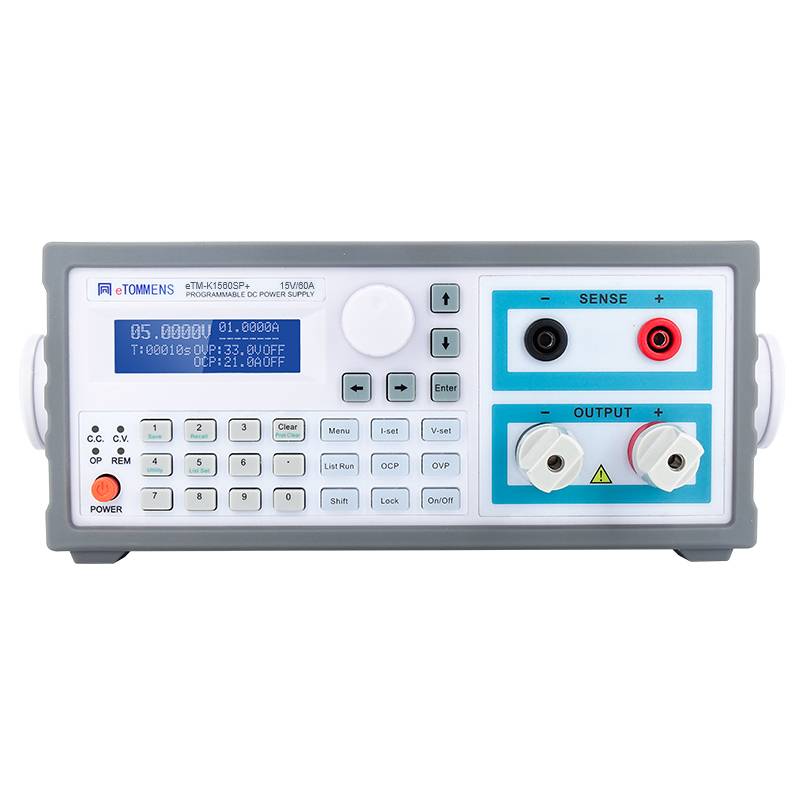

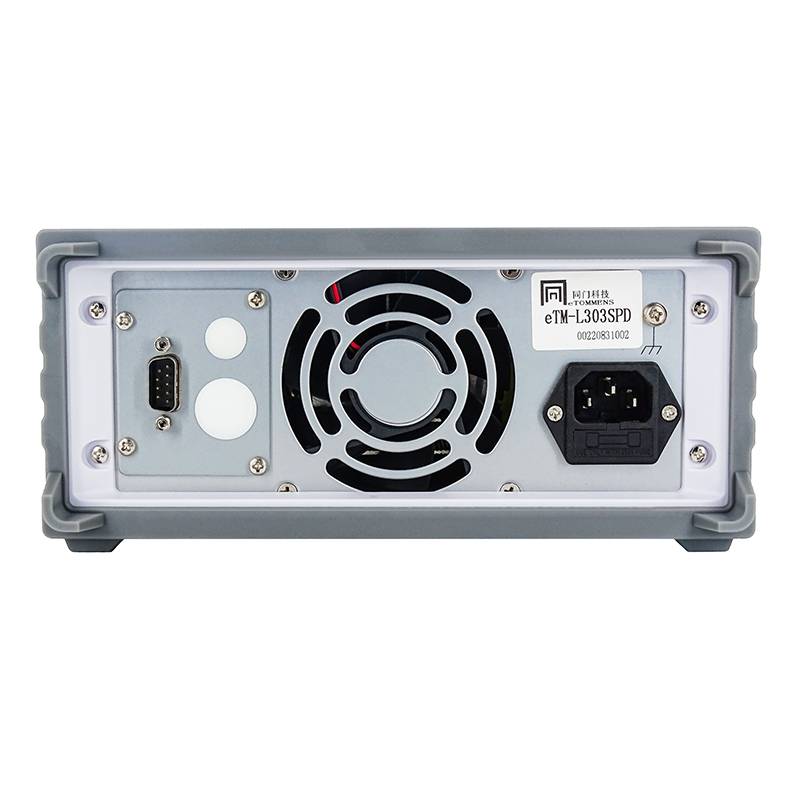

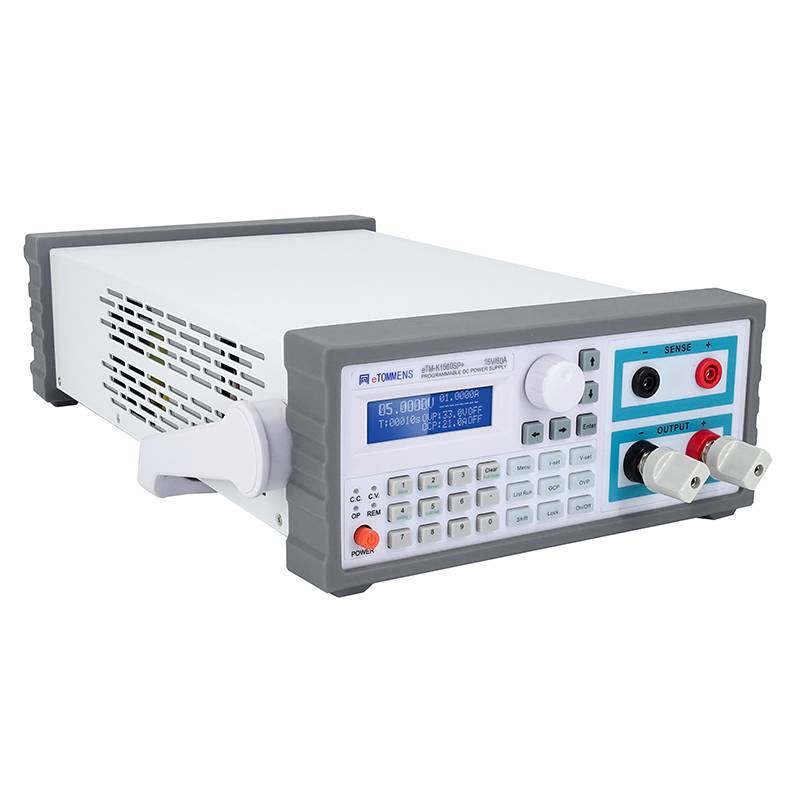

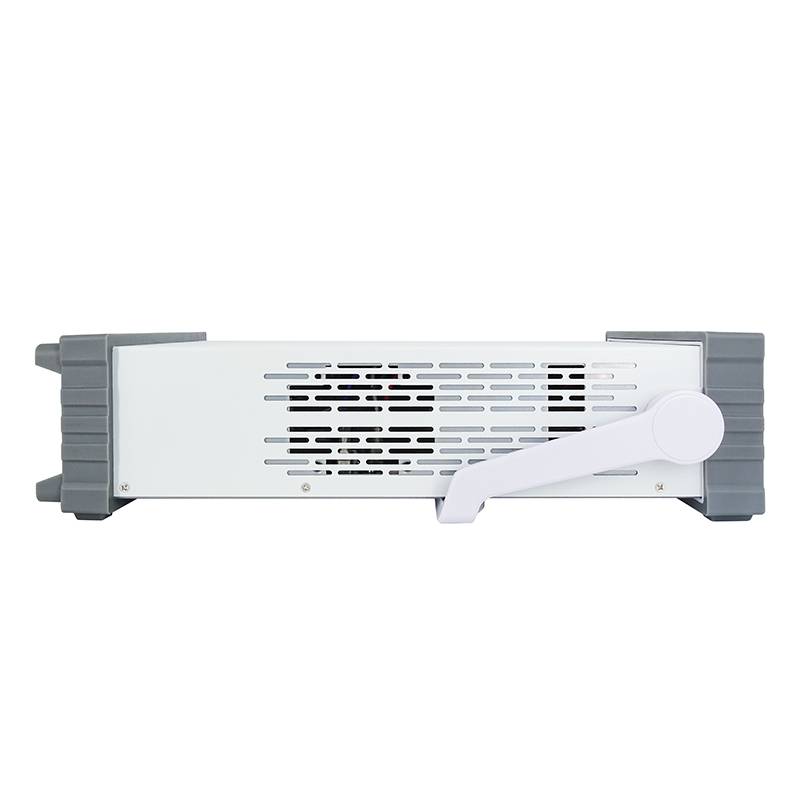

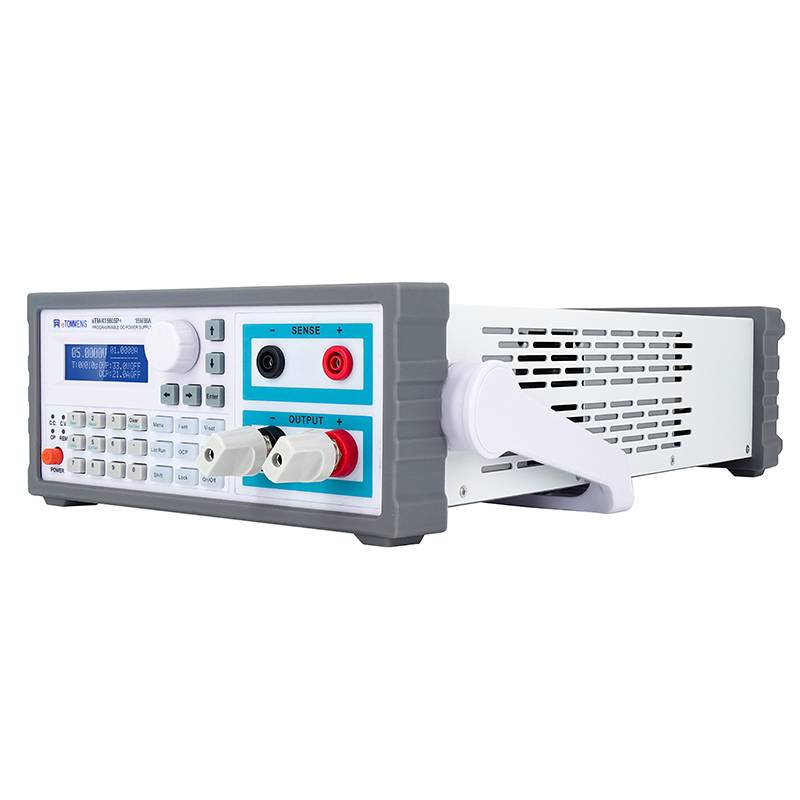

Product Images
Series Overview
KSP / KSP+ series is a high precision cabinet DC power supply with a blue screen display and Window List sequence test technology that stores and recalls 100 sets of voltage and current data.
Product Highlights
- Voltage0~15V
- Current0~60A
- Power900W
- InterfaceLAN · USB · RS232 · RS485 · CAN · External Analog
6-digit 0 To 15 V Blue Screen High Precision Programmable Switching Power Supply KSPD+ Series
Series / category: Programmable DC Power Supply
Product Overview
KSP / KSP+ series is a high precision cabinet DC power supply with a blue screen display and Window List sequence test technology that stores and recalls 100 sets of voltage and current data. It provides 10 groups of shortcut parameter storage, front SENSE, multiple power-up modes, front and rear dual serial port operation, and standard Modbus and SCPI protocols with a VSelf voltage auto-calibration function. Twelve models cover 15V/60A to 80V/11A in a 377+/-3(D) x 215(W) x 89(H) mm, 4.5kg chassis.
Key Features
- Upper computer could directly operate the hard disk of the host
- 10 groups of shortcut parameter storage
- Front SENSE interface
- Multiple power-up modes are available
- Compatible with standard Modbus and SCPI protocols
- Standard 2U height chassis, can be installed in the cabinet side by side.
- Easy and fast operation and setting interface, high speed adjustment knob and digital key input
- Built-in buzzer for prompt or warning
- 100 sets storage and call function, can store/call 100 groups of voltage and current data
- Remote induction to compensate the load line voltage drop, higher precision.
- Standard RS232
Available for Global Distribution & OEM
Brand: eTOMMENS
Manufacturer: eTOMMENS
OEM / Private Label: Available
Technical Support: Available
Click a thumbnail to view a larger image.
Model
1 model in this series. Full electrical data is in the specification table below.
- eTM-K1560SP+
Specifications
Swipe horizontally to view the full table.
| Model | Voltage | Current | Resolution | Precision | Interface |
|---|---|---|---|---|---|
| eTM-K1560SP+ | 0~15V | 0~60A | 0.1mV;0.1mA | ±(0.02% of reading±5mV)(25±5°C);± (0.05% of reading±0.1% of FS)(25±5°C) | Standard configuration of RS232 interface and SENSE interface；Optional RS485 interface, USB interface LAN interface and trigger interface;Optional analog quantity interface (can only be used with RS232 serial port) |
Applications
- Automated testing
- Aging test
Communication Interface
- Standard configuration of RS232 interface and SENSE interface；Optional RS485 interface, USB interface LAN interface and trigger interface;Optional analog quantity interface (can only be used with RS232 serial port)
- Front SENSE interface
- Compatible with standard Modbus and SCPI protocols
- Easy and fast operation and setting interface, high speed adjustment knob and digital key input
- Standard RS232
Datasheet
Every file below is an original document we hold. Files are listed here only where the document itself names this series or model.
- Product Catalog High Precision Rack Power Supply Catalog 26.6.24.V1 (PDF) Download · 17.6 MB
- SCPI Command Table SCPI Command Table (TXT) Request Document
- User Manual K_SPD Series Power Supply (Switch Digital Display) User Manual V4.pdf Download · 7.7 MB
OEM & Private Label
OEM and private-label service is available for this series. Brand: eTOMMENS. Manufacturer: eTOMMENS. Technical support: available. Contact sales to discuss your OEM requirements.
Quick Answers
What is the 6-digit 0 To 15 V Blue Screen High Precision Programmable Switching Power Supply KSPD+ Series?
The 6-digit 0 To 15 V Blue Screen High Precision Programmable Switching Power Supply KSPD+ Series is a DC power supply from eTOMMENS. 1 model is listed in the specification table on this page.
Which control interfaces does it support?
Standard configuration of RS232 interface and SENSE interface；Optional RS485 interface, USB interface LAN interface and trigger interface;Optional analog quantity interface (can only be used with RS232 serial port) Front SENSE interface
