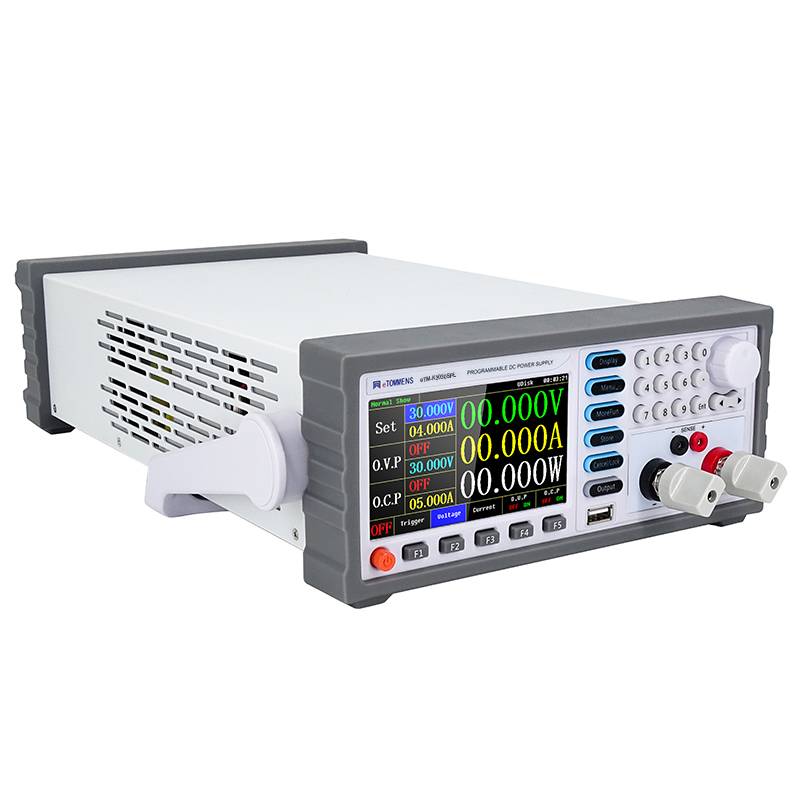

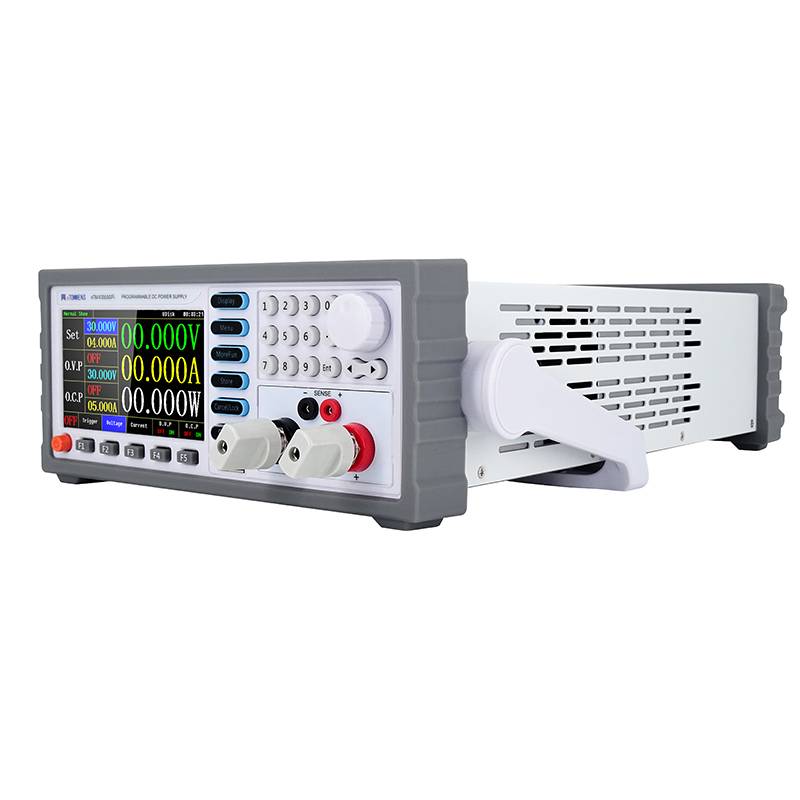

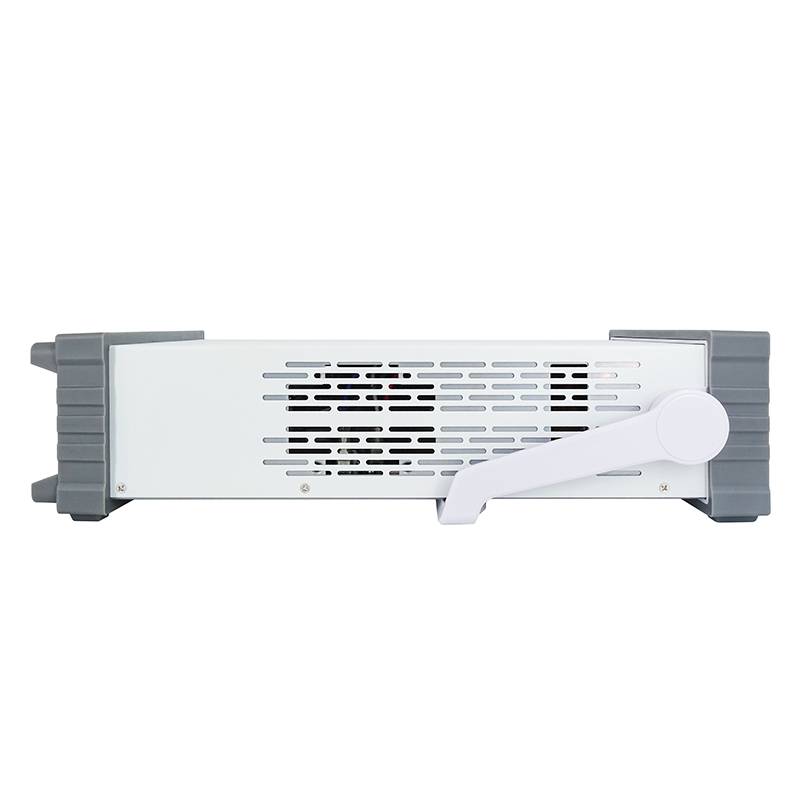

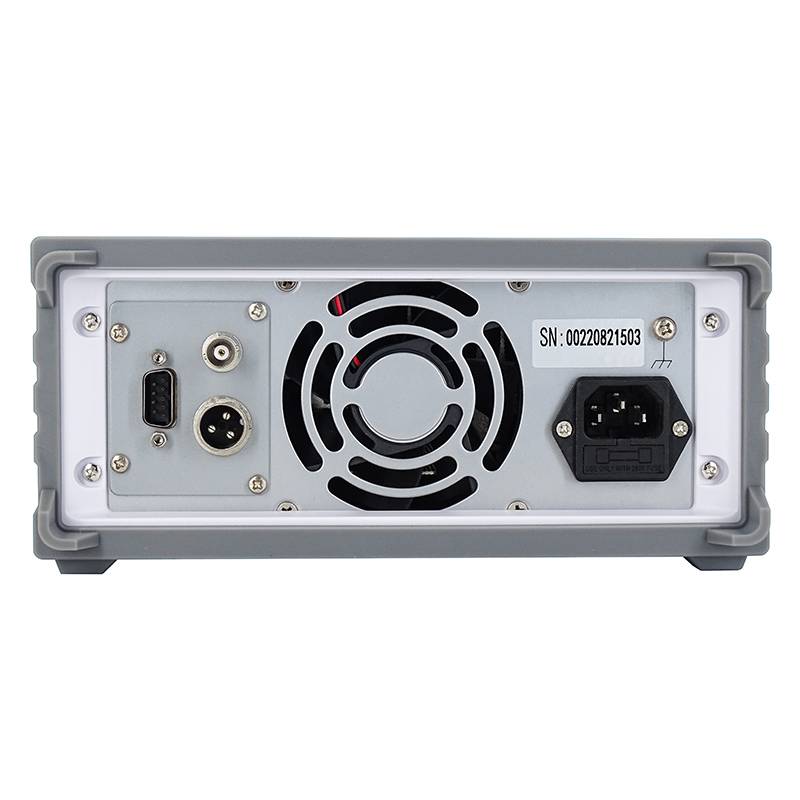

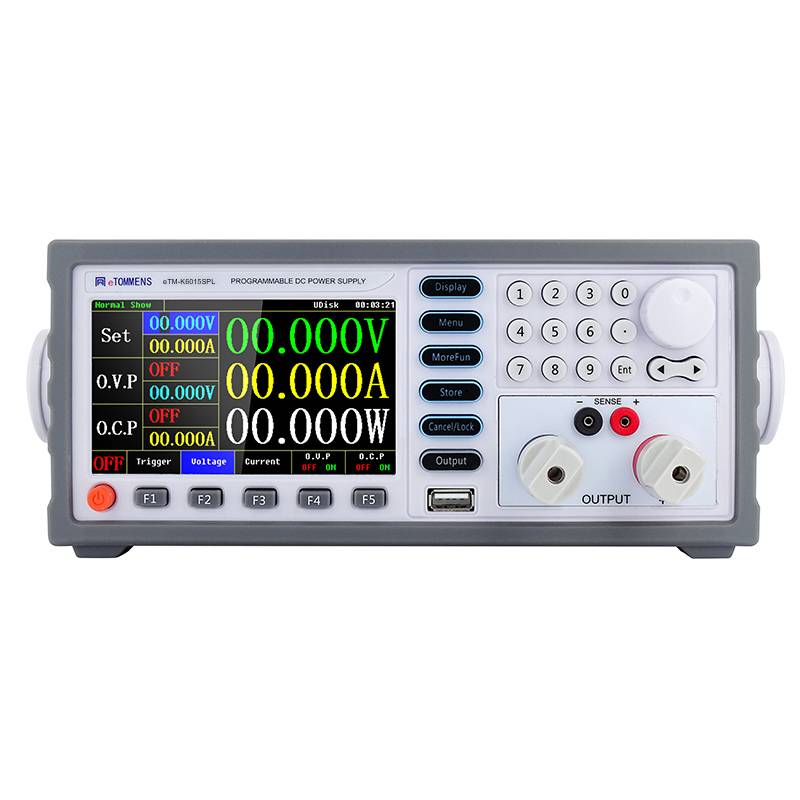

5-digits 0 To 60v Color Screen High Precision Programmable Switching Power Supply KSPL Series
Series / category: Programmable DC Power Supply
Available for Global Distribution & OEM
Brand: eTOMMENS
Manufacturer: eTOMMENS
OEM / Private Label: Available
Technical Support: Available
Click a thumbnail to view a larger image.
Model
2 models in this series. Full electrical data is in the specification table below.
- eTM-K6010PL
- eTM-K6015PL
Specifications
Swipe horizontally to view the full table.
| Model | Voltage | Current | Resolution | Precision | Interface |
|---|---|---|---|---|---|
| eTM-K6010PL | 0~60V | 0~10A | 1mV;1mA | ±(0.02% of reading±5mV)(25±5°C);± (0.05% of reading±0.1% of FS)(25±5°C) | Standard configuration of RS232 interface、SENSE interface、trigger interface and aviation interface；Optional RS485 interface, USB interface and LAN interface;Optional analog quantity interface (can only be used with RS232 serial port) |
| eTM-K6015PL | 0~60V | 0~15A | 1mV;1mA | ±(0.02% of reading±5mV)(25±5°C);± (0.05% of reading±0.1% of FS)(25±5°C) | Standard configuration of RS232 interface、SENSE interface、trigger interface and aviation interface；Optional RS485 interface, USB interface and LAN interface;Optional analog quantity interface (can only be used with RS232 serial port) |
Communication Interface
- Standard configuration of RS232 interface、SENSE interface、trigger interface and aviation interface；Optional RS485 interface, USB interface and LAN interface;Optional analog quantity interface (can only be used with RS232 serial port)
Datasheet
Every file below is an original document we hold. Files are listed here only where the document itself names this series or model.
- Product Catalog High Precision Rack Power Supply Catalog 26.6.24.V1 (PDF) Download · 17.6 MB
- SCPI Command Table SCPI Command Table (TXT) Request Document
- User Manual K_SPL Series Power Supply (Switching Power Supply with Color Display) User Manual V5.pdf Download · 6 MB
OEM & Private Label
OEM and private-label service is available for this series. Brand: eTOMMENS. Manufacturer: eTOMMENS. Technical support: available. Contact sales to discuss your OEM requirements.
Quick Answers
What is the 5-digits 0 To 60v Color Screen High Precision Programmable Switching Power Supply KSPL Series?
The 5-digits 0 To 60v Color Screen High Precision Programmable Switching Power Supply KSPL Series is a DC power supply from eTOMMENS. 2 models are listed in the specification table on this page.
Which control interfaces does it support?
Standard configuration of RS232 interface、SENSE interface、trigger interface and aviation interface；Optional RS485 interface, USB interface and LAN interface;Optional analog quantity interface (can only be used with RS232 serial port)
How do I get a quotation for this model?
Send your requirements to wendy@etommensglobal.com and our engineers will recommend a suitable model and quote.
