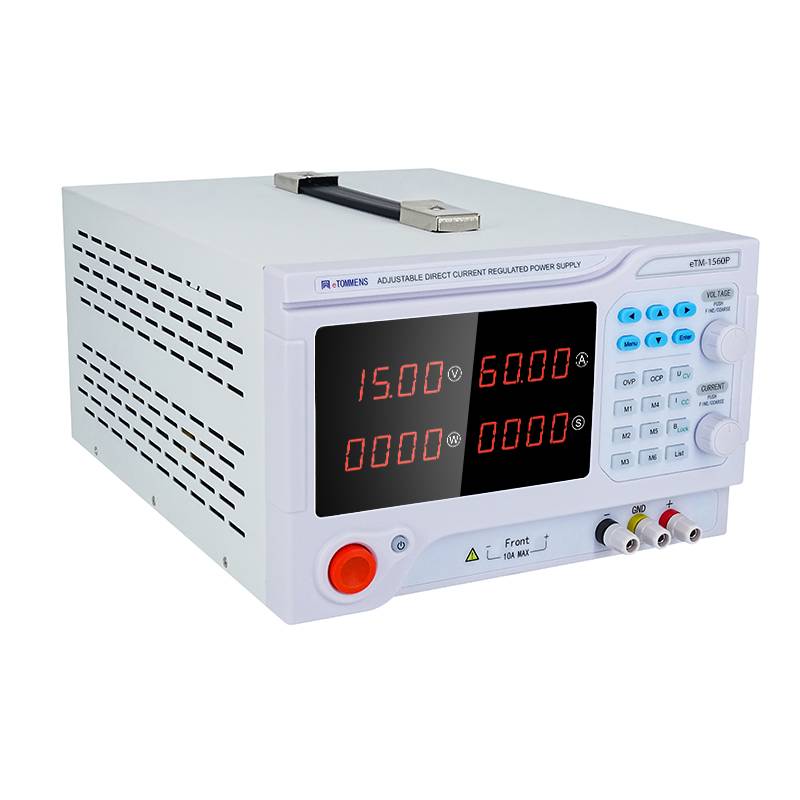

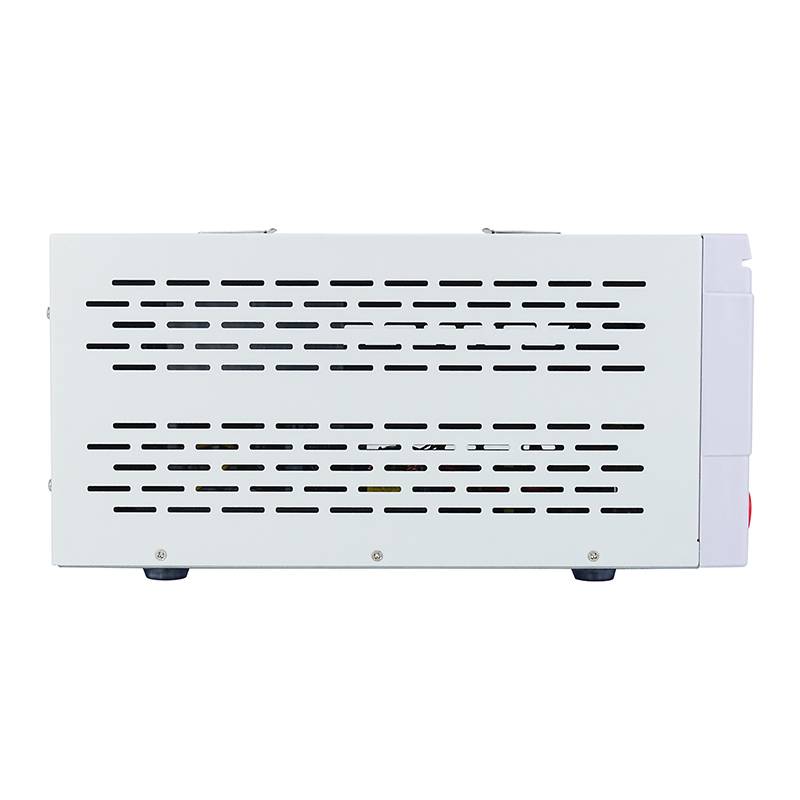

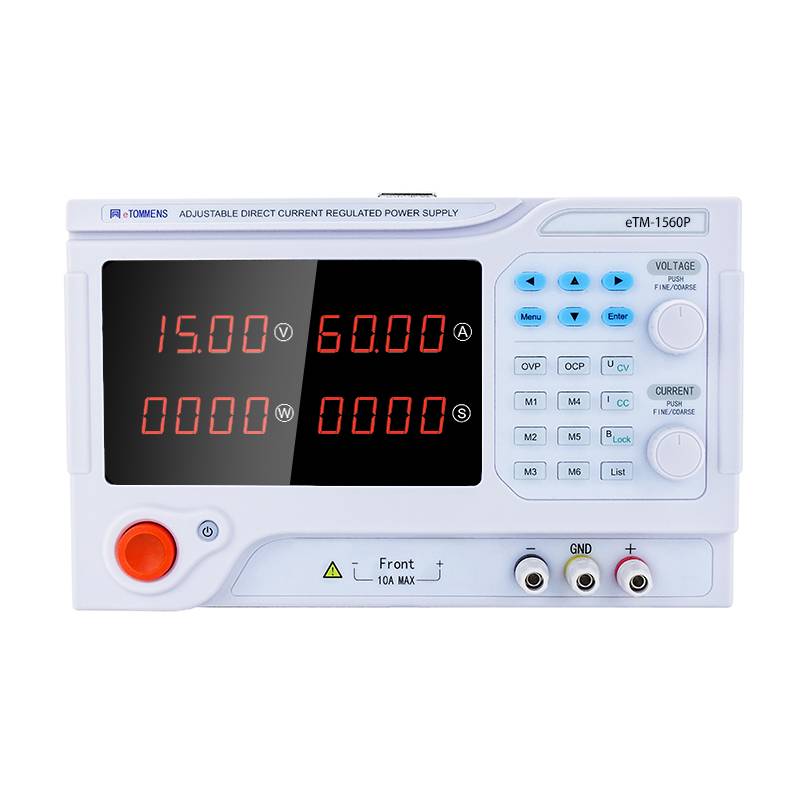

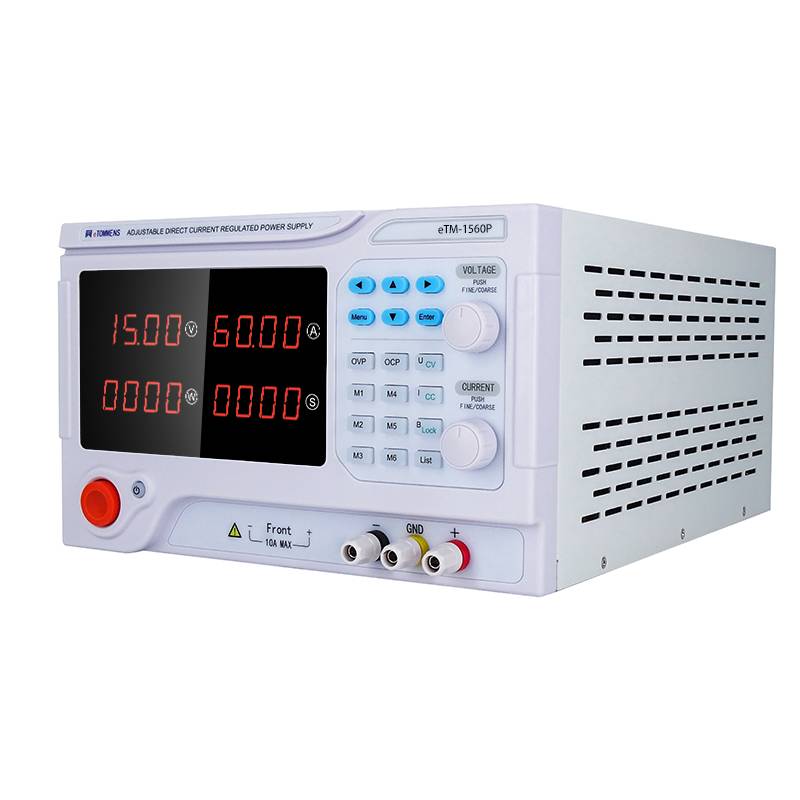

Product Images
Series Overview
P series is a 6000W desktop DC regulated power supply with 6 groups of shortcut parameter storage and list sequence testing technology.
Product Highlights
- Voltage0~15V / 0~20V / 0~30V
- Current0~60A / 0~50A / 0~10A / 0~15A / 0~20A / 0~30A / 0~80A / 0~100A / 0~200A
- InterfaceUSB · RS232 · RS485 · CAN · External Analog
6000W 0 To 30V Programmable Switching Power Supply P Series
Series / category: High Power DC Power Supply
Product Overview
P series is a 6000W desktop DC regulated power supply with 6 groups of shortcut parameter storage and list sequence testing technology. The lineup covers 62 models from 400W to 6000W with voltages from 15V to 800V, intended for equipment aging and lamp testing.
Key Features
- 6 groups of shortcut parameter storage
- List sequence testing technology
- Support five powerful protection functions
- Rear SENSE compensation interface
- ON/OFF output on-off switch
- Rear communication function
Available for Global Distribution & OEM
Brand: eTOMMENS
Manufacturer: eTOMMENS
OEM / Private Label: Available
Technical Support: Available
Click a thumbnail to view a larger image.
Model
11 models in this series. Full electrical data is in the specification table below.
- eTM-1560P
- eTM-2050P
- eTM-3010P
- eTM-3015P
- eTM-3020P
- eTM-3030P
- eTM-3050P
- eTM-3060P
- eTM-3080P
- eTM-30100P
- eTM-30200P
Specifications
Swipe horizontally to view the full table.
| Model | Voltage | Current | Resolution | Precision | Interface |
|---|---|---|---|---|---|
| eTM-1560P | 0~15V | 0~60A | <100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA | 0.1V;0.1A | Standard RS485 interface;Optional RS232 interface and USB interface;Optional analog quantity interface (can only be used with RS232 serial port);Customizable fixed 110V interface; Customizable SENSE interface |
| eTM-2050P | 0~20V | 0~50A | <100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA | 0.1V;0.1A | Standard RS485 interface;Optional RS232 interface and USB interface;Optional analog quantity interface (can only be used with RS232 serial port);Customizable fixed 110V interface; Customizable SENSE interface |
| eTM-3010P | 0~30V | 0~10A | <100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA | 0.1V;0.1A | Standard RS485 interface;Optional RS232 interface and USB interface;Optional analog quantity interface (can only be used with RS232 serial port);Customizable fixed 110V interface; Customizable SENSE interface |
| eTM-3015P | 0~30V | 0~15A | <100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA | 0.1V;0.1A | Standard RS485 interface;Optional RS232 interface and USB interface;Optional analog quantity interface (can only be used with RS232 serial port);Customizable fixed 110V interface; Customizable SENSE interface |
| eTM-3020P | 0~30V | 0~20A | <100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA | 0.1V;0.1A | Standard RS485 interface;Optional RS232 interface and USB interface;Optional analog quantity interface (can only be used with RS232 serial port);Customizable fixed 110V interface; Customizable SENSE interface |
| eTM-3030P | 0~30V | 0~30A | <100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA | 0.1V;0.1A | Standard RS485 interface;Optional RS232 interface and USB interface;Optional analog quantity interface (can only be used with RS232 serial port);Customizable fixed 110V interface; Customizable SENSE interface |
| eTM-3050P | 0~30V | 0~50A | <100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA | 0.1V;0.1A | Standard RS485 interface;Optional RS232 interface and USB interface;Optional analog quantity interface (can only be used with RS232 serial port);Customizable fixed 110V interface; Customizable SENSE interface |
| eTM-3060P | 0~30V | 0~60A | <100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA | 0.1V;0.1A | Standard RS485 interface;Optional RS232 interface and USB interface;Optional analog quantity interface (can only be used with RS232 serial port);Customizable fixed 110V interface; Customizable SENSE interface |
| eTM-3080P | 0~30V | 0~80A | <100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA | 0.1V;0.1A | Standard RS485 interface;Optional RS232 interface and USB interface;Optional analog quantity interface (can only be used with RS232 serial port);Customizable fixed 110V interface; Customizable SENSE interface |
| eTM-30100P | 0~30V | 0~100A | <100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA | 0.1V;0.1A | Standard RS485 interface;Optional RS232 interface and USB interface;Optional analog quantity interface (can only be used with RS232 serial port);Customizable fixed 110V interface; Customizable SENSE interface |
| eTM-30200P | 0~30V | 0~200A | <100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA | 0.1V;0.1A | Standard RS485 interface;Optional RS232 interface and USB interface;Optional analog quantity interface (can only be used with RS232 serial port);Customizable fixed 110V interface; Customizable SENSE interface |
Applications
- Equipment aging
- Lamp testing
Communication Interface
- Standard RS485 interface;Optional RS232 interface and USB interface;Optional analog quantity interface (can only be used with RS232 serial port);Customizable fixed 110V interface; Customizable SENSE interface

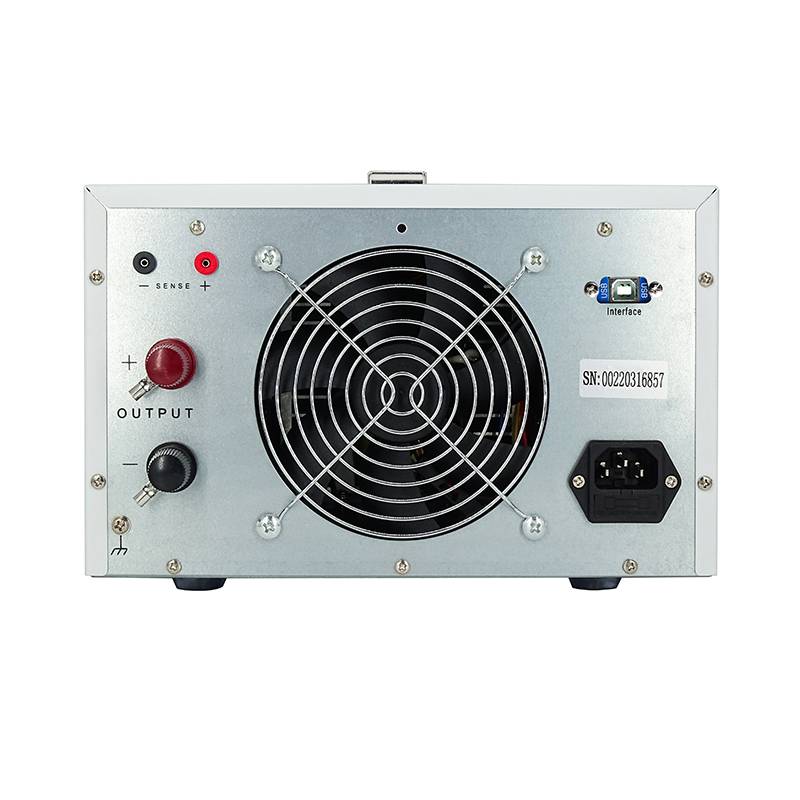

- Rear SENSE compensation interface
- Rear communication function
Protection Functions
- Support five powerful protection functions
Datasheet
Every file below is an original document we hold. Files are listed here only where the document itself names this series or model.
- Communication Protocol P Series / C Series Communication Protocol (DOC) Request Document
- Modbus Example P Series Modbus Example (TXT) Request Document
- Product Catalog 6000W Benchtop Cabinet Power Supply Catalog 26.6.25.V1 (PDF) Download · 11.2 MB
- SCPI Command Table SCPI Command Table (TXT) Request Document
- User Manual High power programmable P series.pdf Download · 11.1 MB
OEM & Private Label
OEM and private-label service is available for this series. Brand: eTOMMENS. Manufacturer: eTOMMENS. Technical support: available. Contact sales to discuss your OEM requirements.
Quick Answers
What is the 6000W 0 To 30V Programmable Switching Power Supply P Series?
The 6000W 0 To 30V Programmable Switching Power Supply P Series is a DC power supply from eTOMMENS. 11 models are listed in the specification table on this page.
Which control interfaces does it support?
Standard RS485 interface;Optional RS232 interface and USB interface;Optional analog quantity interface (can only be used with RS232 serial port);Customizable fixed 110V interface; Customizable SENSE interface Rear SENSE compensation interface
