Product Images
Series Overview

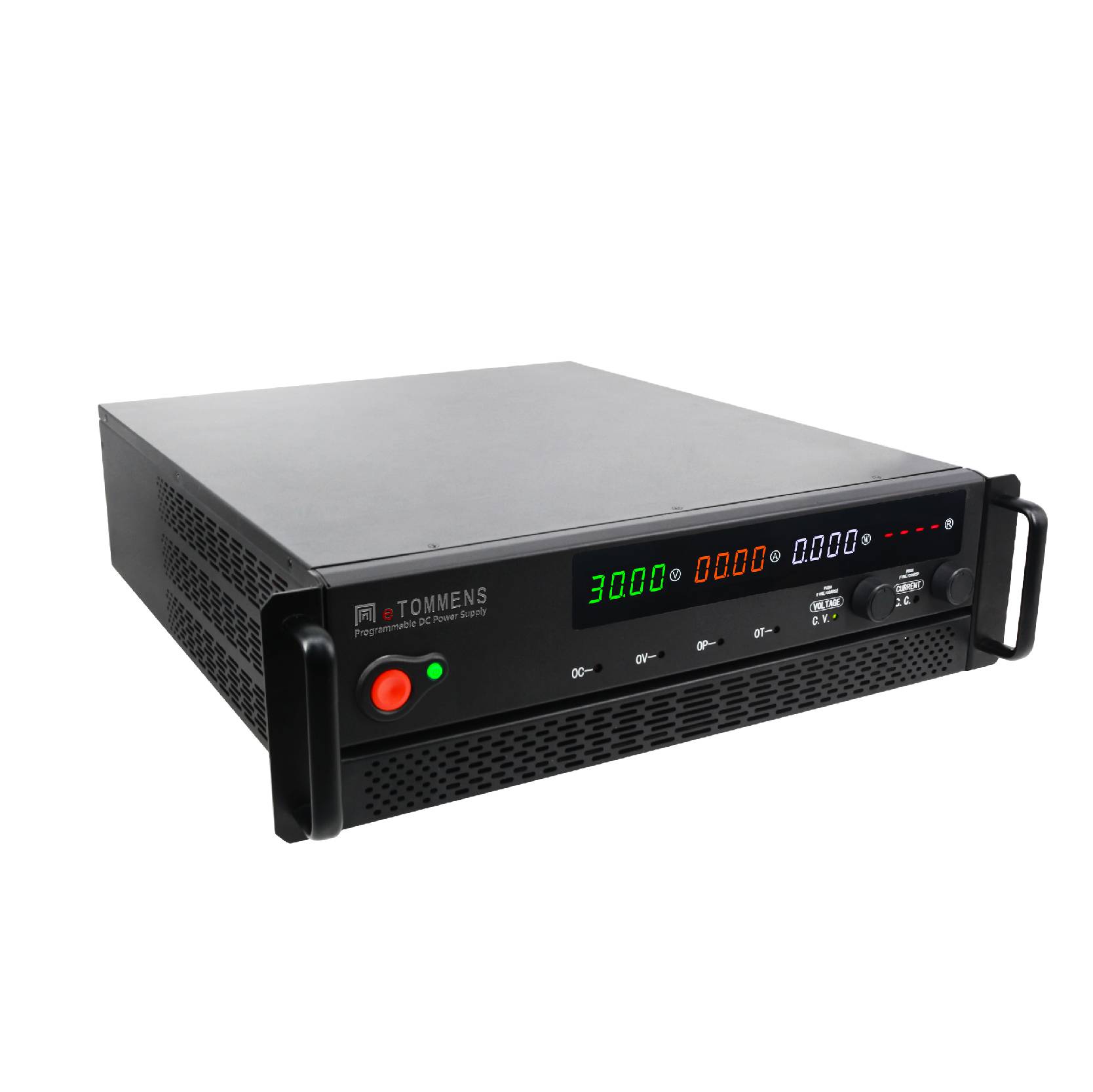

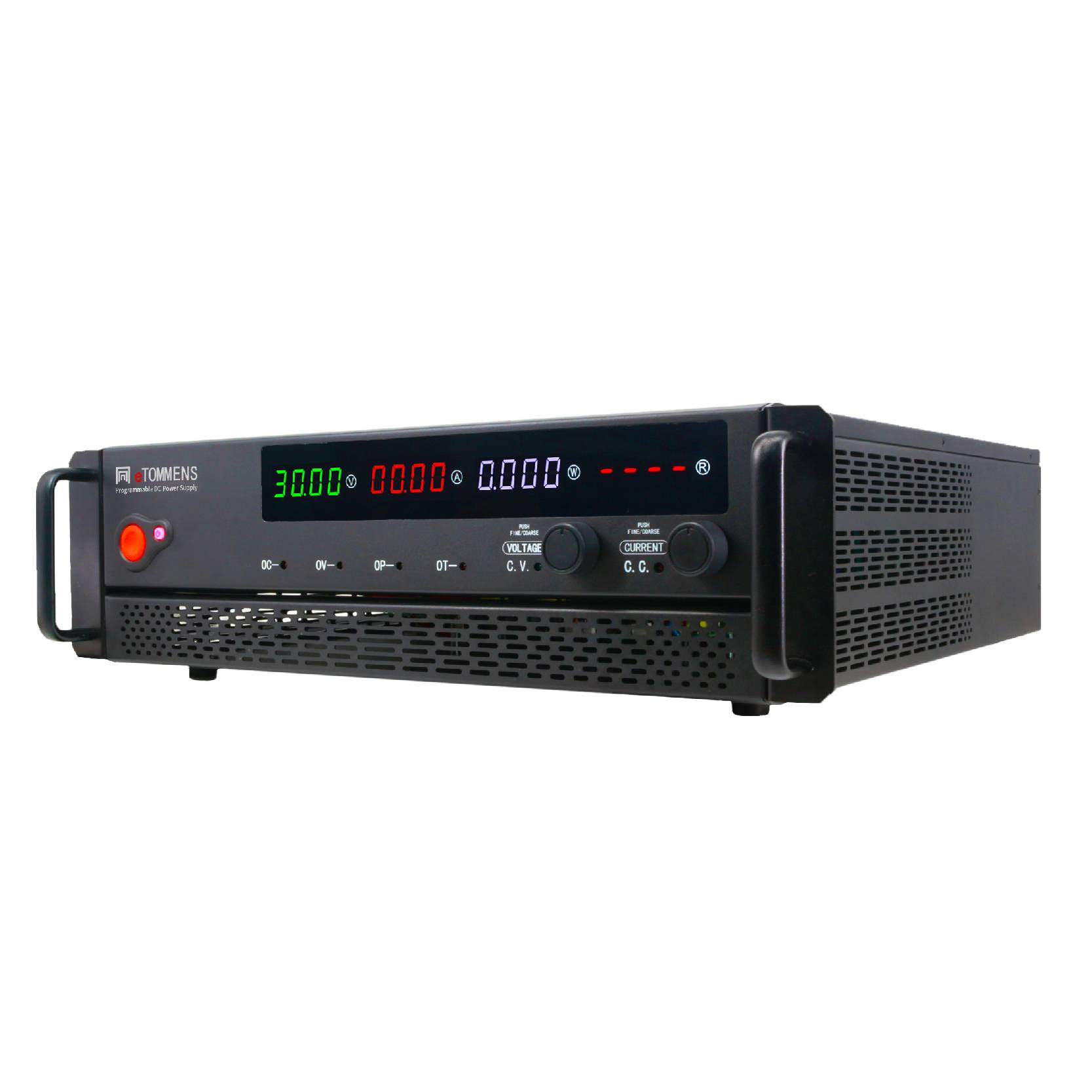

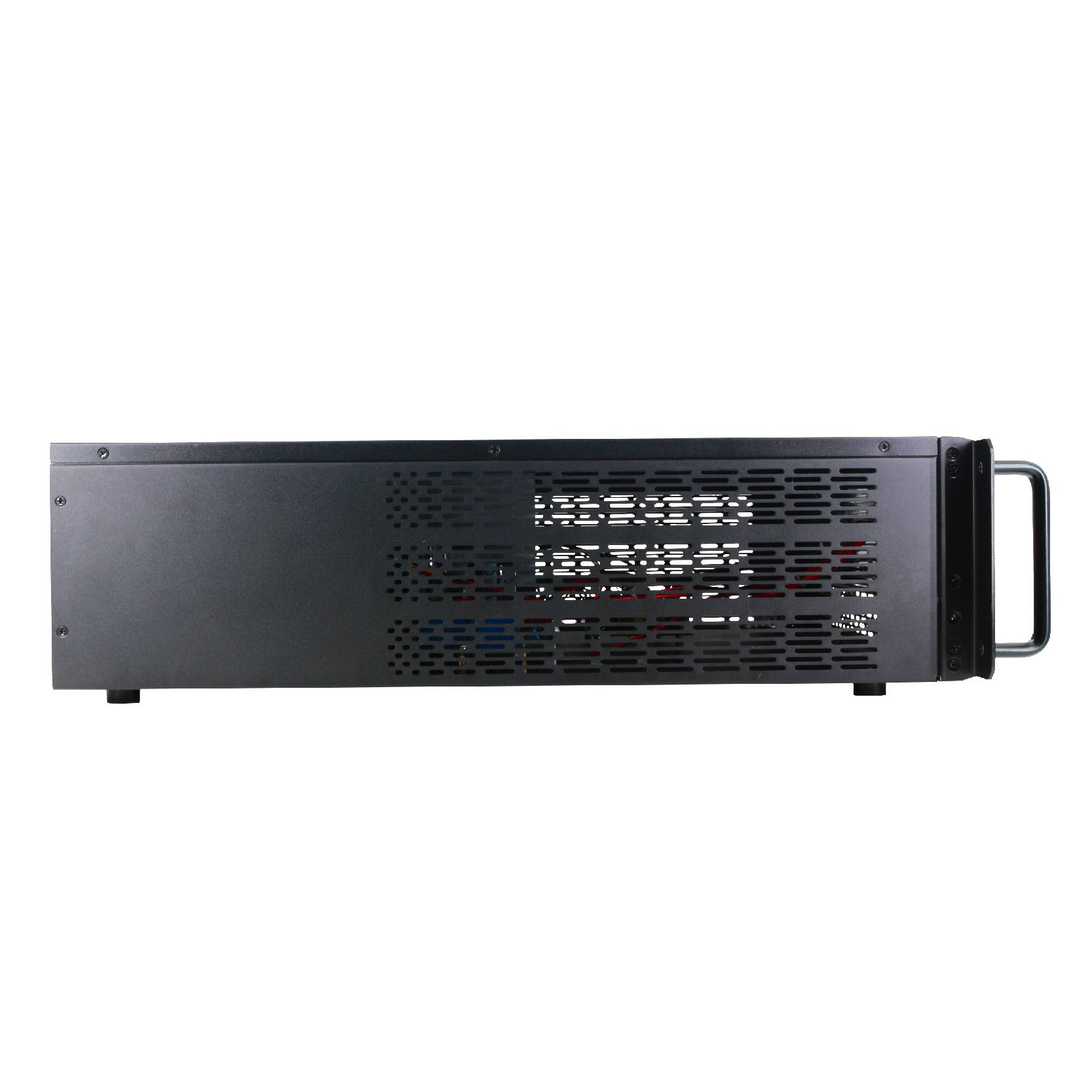

eTOMMENS U series is a 3U rack-mounted programmable DC regulated power supply.
Product Highlights
- Voltage0~60V / 0~80V / 0~100V / 0~120V
- Current0~20A / 0~30A / 0~50A / 0~60A / 0~5A / 0~10A
- Power1200W / 1800W / 3000W / 3600W / 2400W / 500W / 1000W / 2000W
- Form FactorCabinet / Embedded
- InterfaceLAN · RS232 · RS485 · CAN

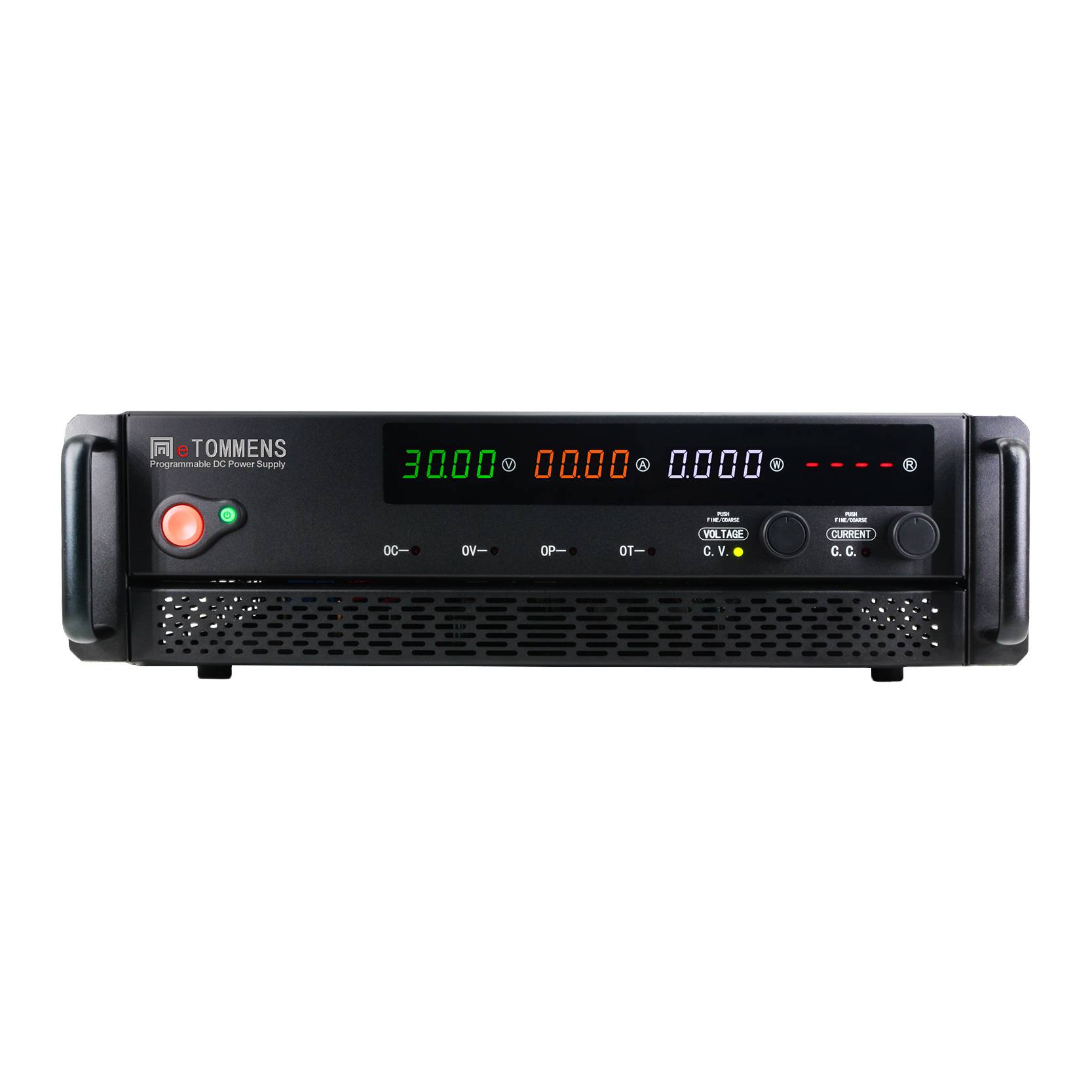

3U 0 To 120V Cabinet type Programmable DC Power Supply
Series / category: High Power DC Power Supply
Product Overview
eTOMMENS U series is a 3U rack-mounted programmable DC regulated power supply. Four-position LED displays show voltage, current, output power and equivalent impedance, with encoding-switch digital control of the output value, one-key output on-off, and standard RS232, RS485 and USB serial communication supporting MODBUS RTU. Forty-one models span 15V to 600V at currents up to 200A and power up to 6000W, weighing approximately 13kg.
Key Features
- It is convenient for equipment integration and installation.
- Encoding switch digital control output size, convenient and durable.
- Equipped with short-circuit, overvoltage, overcurrent, overvoltage, and reverse polarity protection functions.
- Standard configuration of RS232, RS485, and USB serial communication, supporting MODBUS RTU protocol, achieving automated control.
Available for Global Distribution & OEM
Brand: eTOMMENS
Manufacturer: eTOMMENS
OEM / Private Label: Available
Technical Support: Available
Click a thumbnail to view a larger image.
Model
12 models in this series. Full electrical data is in the specification table below.
- eTM-6020U
- eTM-6030U
- eTM-6050U
- eTM-6060U
- eTM-8030U
- eTM-1005U
- eTM-10010U
- eTM-10020U
- eTM-10030U
- eTM-12010U
- eTM-12020U
- eTM-12030U
Specifications
Swipe horizontally to view the full table.
| Model | Voltage | Current | Power |
|---|---|---|---|
| eTM-6020U | 0~60V | 0~20A | 1200W |
| eTM-6030U | 0~60V | 0~30A | 1800W |
| eTM-6050U | 0~60V | 0~50A | 3000W |
| eTM-6060U | 0~60V | 0~60A | 3600W |
| eTM-8030U | 0~80V | 0~30A | 2400W |
| eTM-1005U | 0~100V | 0~5A | 500W |
| eTM-10010U | 0~100V | 0~10A | 1000W |
| eTM-10020U | 0~100V | 0~20A | 2000W |
| eTM-10030U | 0~100V | 0~30A | 3000W |
| eTM-12010U | 0~120V | 0~10A | 1200W |
| eTM-12020U | 0~120V | 0~20A | 2400W |
| eTM-12030U | 0~120V | 0~30A | 3600W |
Applications
- Equipment integration and installation
- Automated testing

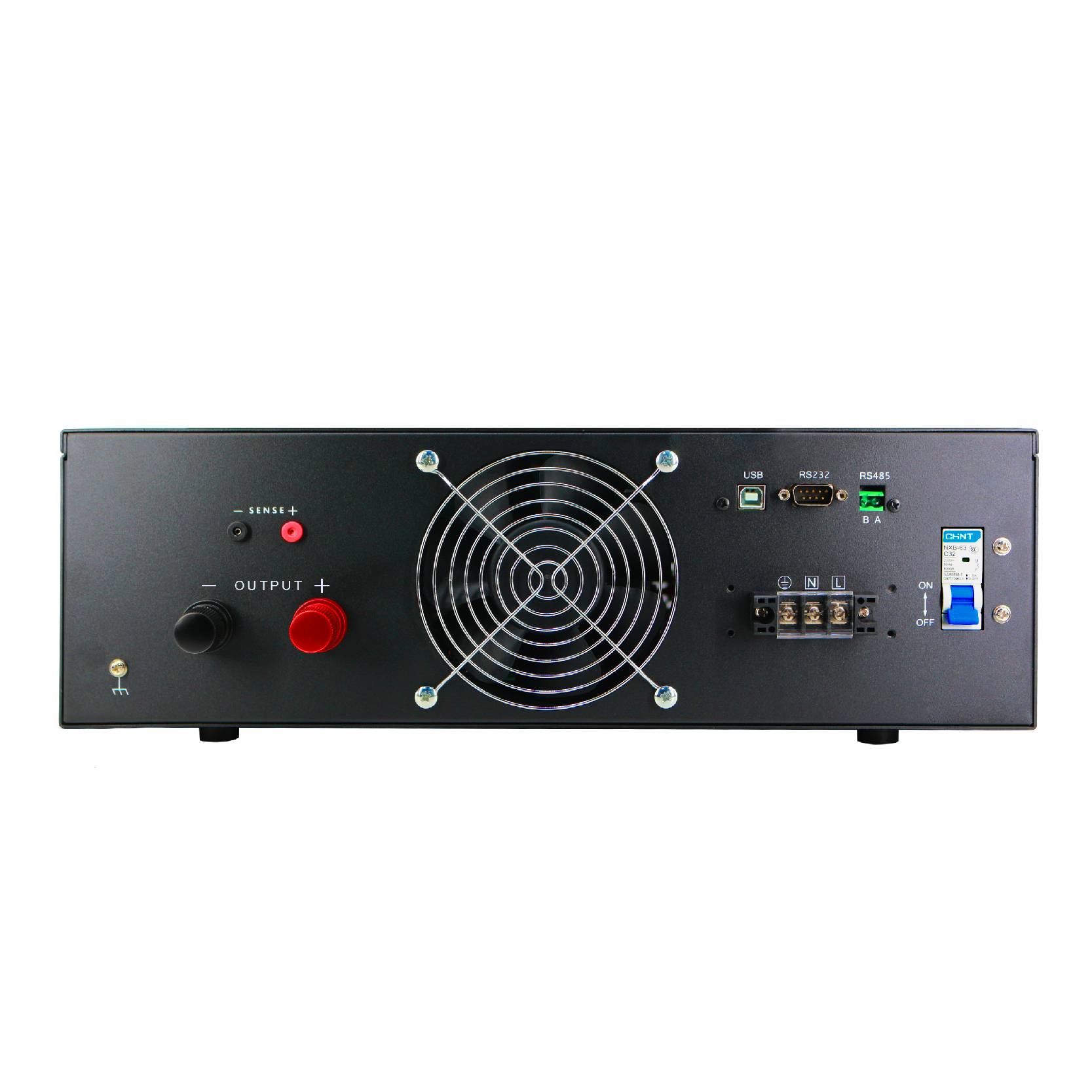

Communication Interface
- Standard SNESE; Standard configuration of 232, 485, and USB serial ports (one out of three cannot be used simultaneously); Modbus protocol
- Standard configuration of RS232, RS485, and USB serial communication, supporting MODBUS RTU protocol, achieving automated control.
Protection Functions
- Equipped with short-circuit, overvoltage, overcurrent, overvoltage, and reverse polarity protection functions.
Datasheet
Every file below is an original document we hold. Files are listed here only where the document itself names this series or model.
- Modbus Command List Cabinet Modbus Command List (TXT) Request Document
- Product Catalog High Precision Cabinet Power Supply Catalog 26.6.24.V1 (PDF) Download · 24.4 MB
- SCPI Command List Cabinet SCPI Command List (XLS) Request Document
- SCPI Command Table SCPI Command Table (TXT) Request Document
- User Manual 3U Programmable DC Power Supply – User Manual.doc Download · 466 KB
OEM & Private Label
OEM and private-label service is available for this series. Brand: eTOMMENS. Manufacturer: eTOMMENS. Technical support: available. Contact sales to discuss your OEM requirements.
Quick Answers
What is the 3U 0 To 120V Cabinet type Programmable DC Power Supply?
The 3U 0 To 120V Cabinet type Programmable DC Power Supply is a DC power supply from eTOMMENS. 12 models are listed in the specification table on this page.
Which control interfaces does it support?
Standard SNESE; Standard configuration of 232, 485, and USB serial ports (one out of three cannot be used simultaneously); Modbus protocol Standard configuration of RS232, RS485, and USB serial communication, supporting MODBUS RTU protocol, achieving automated control.
How do I get a quotation for this model?
Send your requirements to wendy@etommensglobal.com and our engineers will recommend a suitable model and quote.
